    • 1550nm C-band 14dBm Semiconductor Optical Amplifier(Nonlinear)

    1550nm SOA is a polarization-insensitive optical amplifier. Adopting advanced epitaxial wafer growth and optoelectronic packaging technology, it achieves high saturated output power, low noise figure and high gain over a broad spectral bandwidth.

    Product features：C-band amplification; nonlinear enhancement; fast response; compact package; low power consumption

    Part Number：MP-SOA-1550-13db-34-SA

    Application area：Fiber optic sensing network | LiDAR | space communication | optical testing | national defense system

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Center Wavelength Output Power

    1528 nm-1562nm 1550nm 14dBm

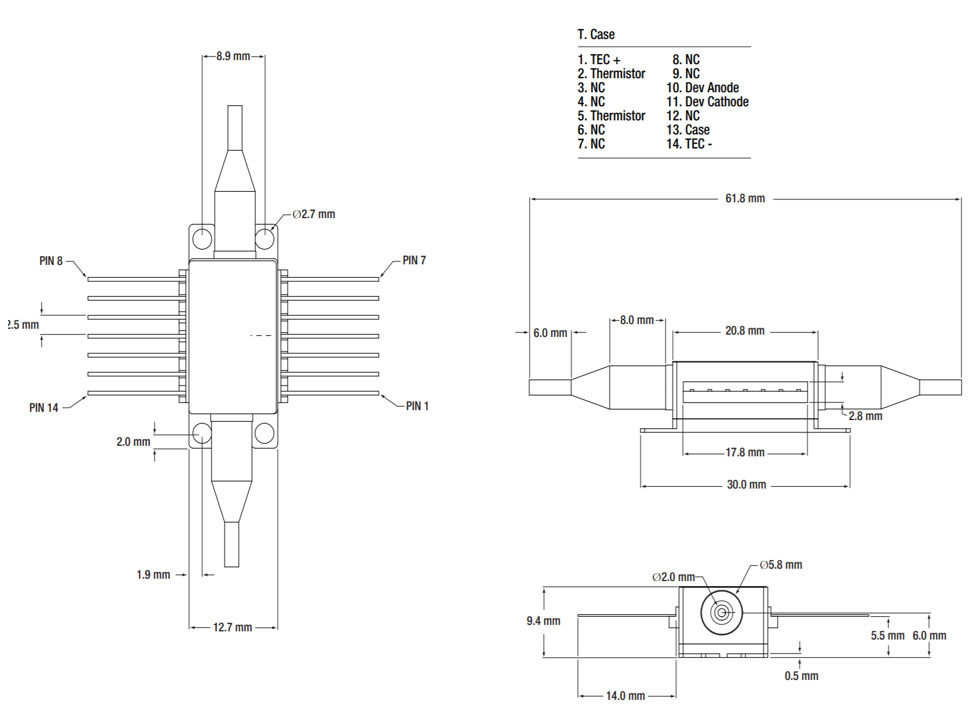

  • Dimension Drawing
    • General Parameters

    Detailed Specifications

    Electrical & Optical Characteristics（Tsub=25°C, CW）

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Operating Current

    IOP

    —

    450

    500

    mA

    Operating Wavelength Range

    —

    1528

    —

    1562

    nm

    Center Wavelength

    λC

    —

    1550

    —

    nm

    Saturated Output Power (@ -3 dB)

    PSAT

    12

    14

    —

    dBm

    Small Signal Gain (Over C-Band @ Pin = -20 dBm)

    G

    10

    13

    —

    dB

    Gain Flatness (Over C-Band @ Pin = -20 dBm)

    ΔG

    —

    5

    7

    dB

    Gain Ripple (p-p) @ IOP, λC

    δG

    —

    0.1

    0.5

    dB

    Polarization Dependent Gain

    PDG

    —

    1.0

    1.8

    dB

    Noise Figure

    NF

    —

    8

    9.5

    dB

    Forward Voltage

    VF

    —

    1.6

    1.8

    V

    Chip Length

    —

    —

    1.5

    —

    mm

    Waveguide Refractive Index

    —

    —

    3.2

    —

    —

    TEC Operation(Typical / Maximum @ TCASE = 25 / 70 °C)

    TEC Current

    ITEC

    —

    0.23

    1.5

    A

    TEC Voltage

    VTEC

    —

    0.5

    4.0

    V

    Thermistor Resistance

    RTH

    —

    10

    —

    kΩ



    Characteristic Curves

    Typical Performance Curves

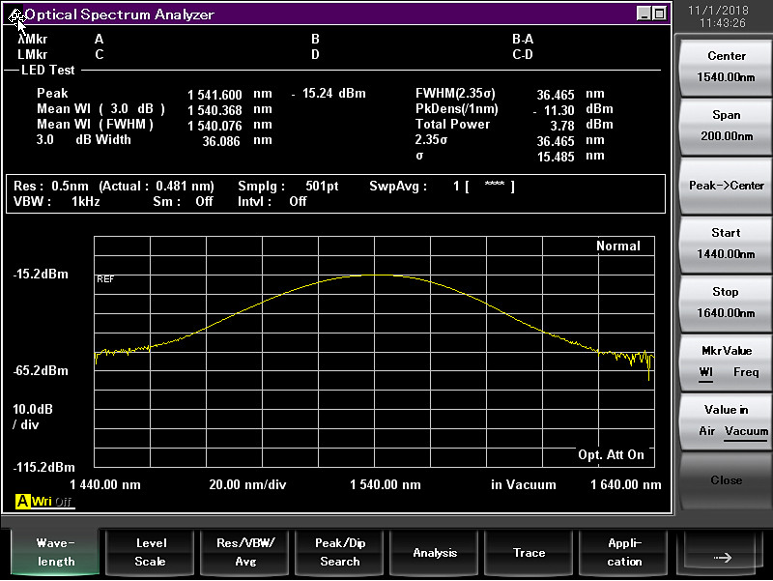

    ASE Spectrum

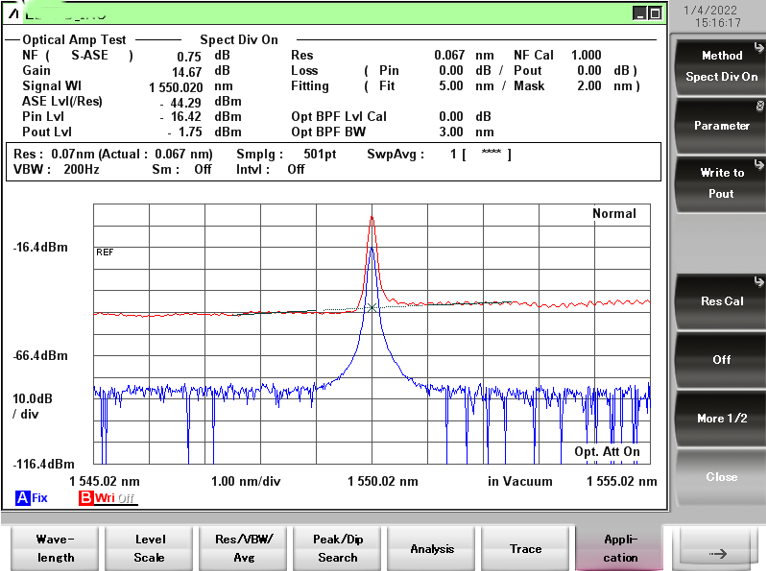

    SOA Amplifier Spectrum (Pin = 0 dBm, I = 450 mA)

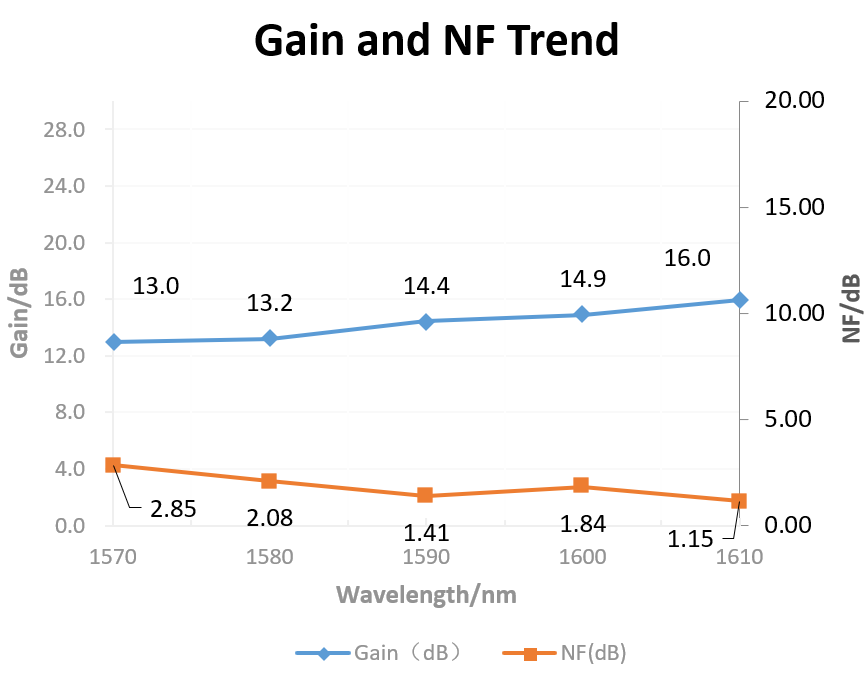

    Gain and NF Curves

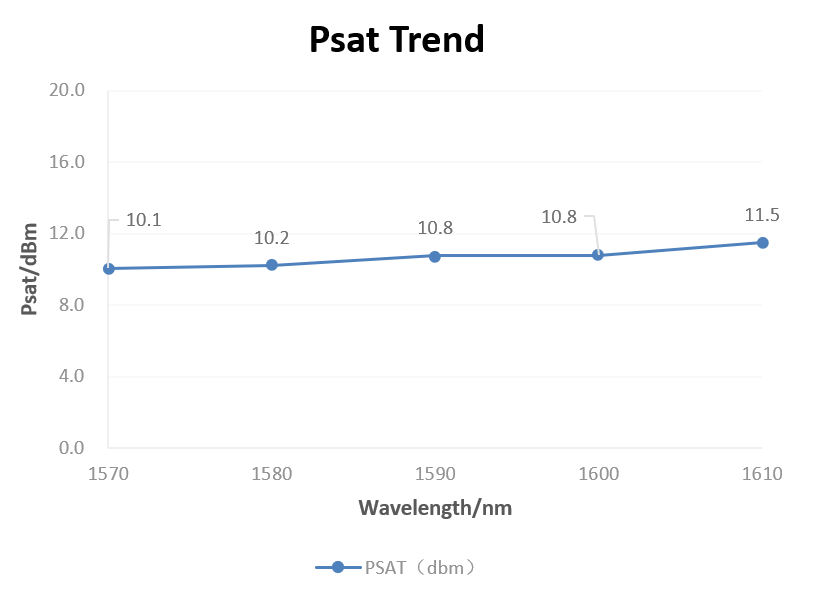

    Saturated Output Power Curve




    Ordering Information

    MP-SOA-☆-A8▽-W□□□□-XX

    ☆ : Output Power

    A: 5dbm

    B: 10dbm

    ▽：Bandwidth

    1: 60-70nm

    2: 30-40nm

    □□□□：Wavelength

    680: 680nm

    850: 850nm

    *****

    1550: 1550nm

    1600: 1600nm

    XX: Fiber and Connector Type

    SA=(SMF-28E+ FC/APC)+(SMF-28E+ FC/APC)

    SP=(SMF-28E+ FC/PC)+(SMF-28E+ FC/PC)

    PA=(PM Fiber+ FC/APC)+(PM Fiber+ FC/APC)

    PP=(PM Fiber+ FC/PC)+(PM Fiber+ FC/PC)


    Optional Configurations

    --

    Downloads

    1550nm C-band 14dBm Semiconductor Optical Amplifier(Nonlinear).pdf
