    • 5.26um 20mW DFB-CW QCL Continuous Wave Quantum Cascade Laser

    QCL is a semiconductor laser emitting in the mid‑infrared range (4 μm to 10 μm). Due to its emission mechanism being completely different from conventional laser diodes, QCLs have attracted significant attention as an innovative solution for mid‑infrared applications such as trace gas analysis in environmental monitoring.

    Product features：Continuous wave output; DFB single-mode characteristics; precise temperature control; low-noise driving; industrial-grade package

    Part Number：MP-QCL-5260-DFB-20

    Application area：Gas Sensing | Medical Diagnostics | Defense and Security | Environmental Monitoring | Semiconductor Metrology

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Central Wavelength Output Power

    5.26um 20 mW

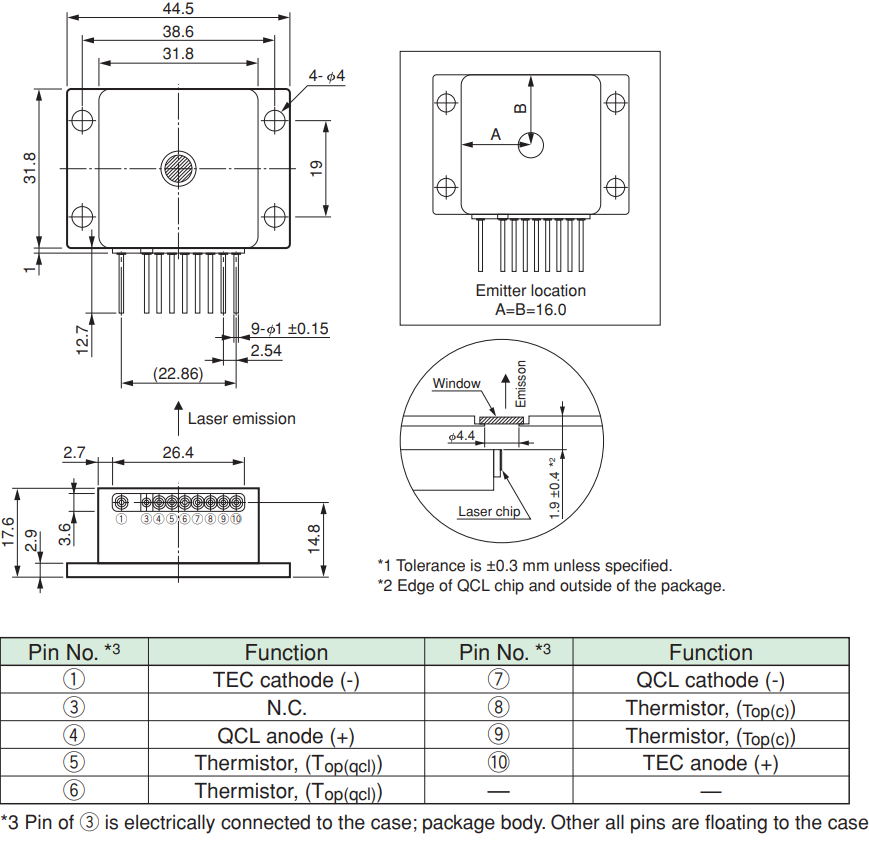

  • Dimension Drawing
    • General Parameters

    Model Parameters

    Parameter

    Specification

    Type

    DFB-CW Type

    Typical Peak Emission Wavelength

    5.26 μm

    Tuning Range Min.

    ±1.0 cm⁻¹

    Min. Output Power

    20 mW

    Max. Laser Threshold Current

    1 A

    Min. Side Mode Suppression Ratio (SMSR)

    25 dB

    Package

    HHL

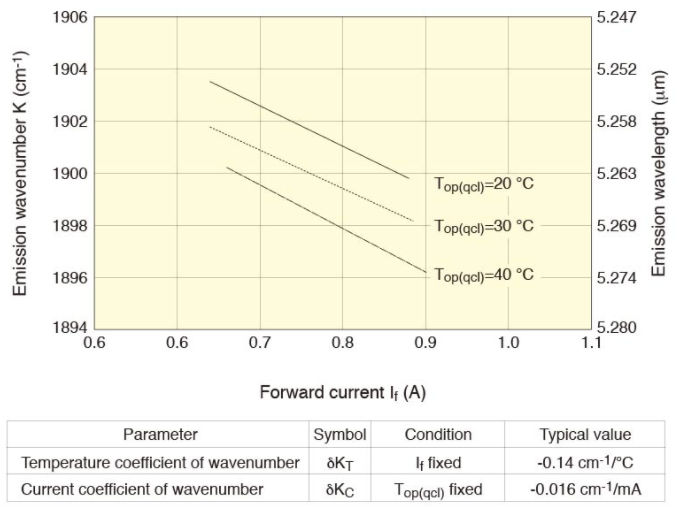

    Typical Characteristics



    General Parameters

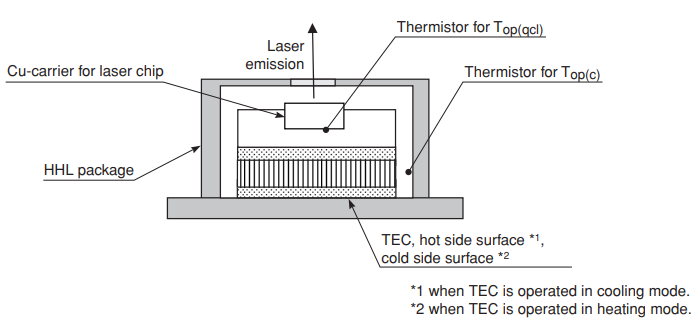

    Thermistor Configuration (Schematic Diagram)

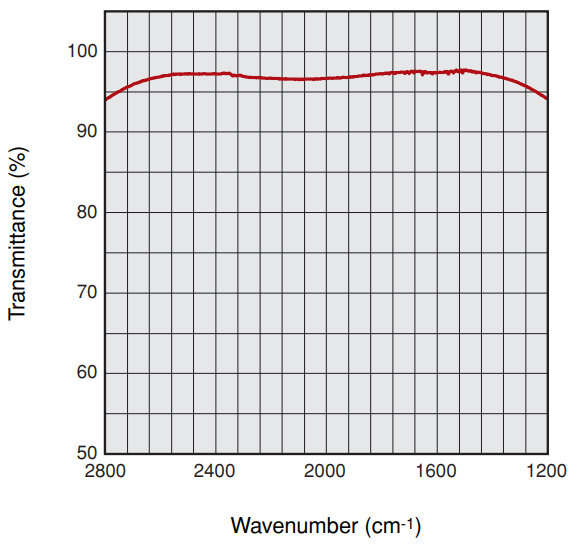

    Typical Transmittance Curve of the Window



    DFB-CW QCL Continuous Wave Quantum Cascade Laser Model List

    HHL Package

    Wavelength

    Wavenumber

    Target gases

    4.33 μm

    2310 cm⁻¹

    CO₂, CO₂ isotope

    4.53 μm

    2209 cm⁻¹

    N₂O

    4.57 μm

    2190 cm⁻¹

    N₂O, CO

    5.26 μm

    1900 cm⁻¹

    NO

    6.13 μm

    1631 cm⁻¹

    NO₂

    7.18 μm

    1392 cm⁻¹

    SO₃

    7.39 μm

    1354 cm⁻¹

    SO₂

    7.73 μm

    1294 cm⁻¹

    CH₄




    Optional Configurations

    --
