4.57um 20mW DFB-CW QCL Continuous Wave Quantum Cascade Laser

4.57um 20mW DFB-CW QCL Continuous Wave Quantum Cascade Laser

QCL is a type of semiconductor laser that emits in the mid-infrared region (from 4 um to 10um).Due to its emission principle being completely different from that of conventional laser diodes (LD),QCL has attracted great attention as an innovative solution for mid-infrared applications such as trace gas analysis in environmental monitoring.The quantum cascade laser adopts SPC (Single Phonon Continuum) depopulation and DFB (Distributed Feedback) structure,enabling continuous-wave mid-infrared laser emission at room temperature.By controlling the operating temperature of the chip using a Peltier element integrated in the HHL package,it is possible to tune the emission wavelength without mode hopping while maintaining longitudinal single-mode operation.

Product features：Continuous wave output; DFB single-mode characteristics; precise temperature control; low-noise driving; industrial-grade package

Part Number：MP-QCL-4570-DFB-20

Application area：Gas Sensing | Medical Diagnostics | Defense and Security | Environmental Monitoring | Semiconductor Metrology

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Central Wavelength Output Power

4.57um 20 mW

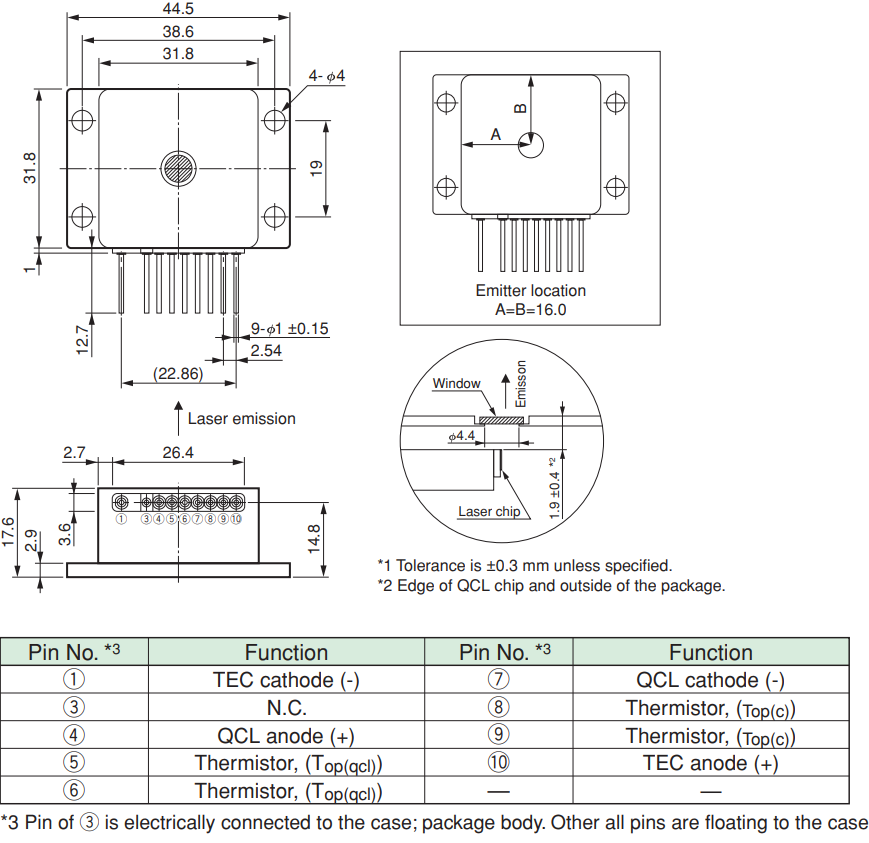

Dimension Drawing

General Parameters

Model Parameters

Parameter	Specification
Type	DFB-CW Type
Typical Peak Emission Wavelength	4.57 μm
Tuning Range Min.	±1.0 cm⁻¹
Min. Output Power	20 mW
Max. Laser Threshold Current	1 A
Min. Side Mode Suppression Ratio (SMSR)	25 dB
Package	HHL

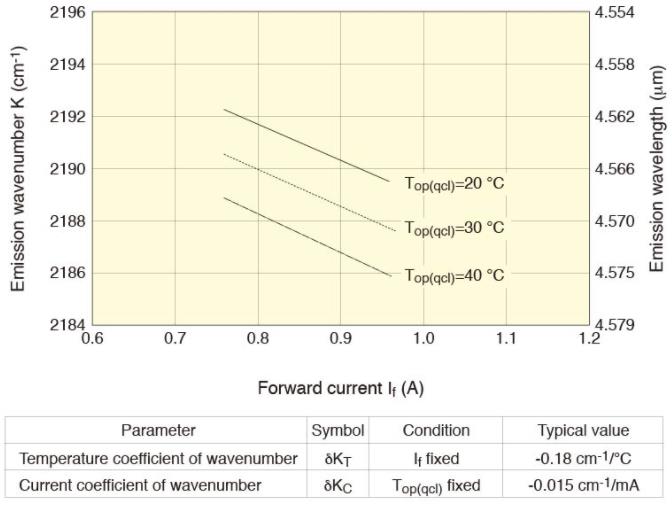

Typical Characteristics

General Parameters

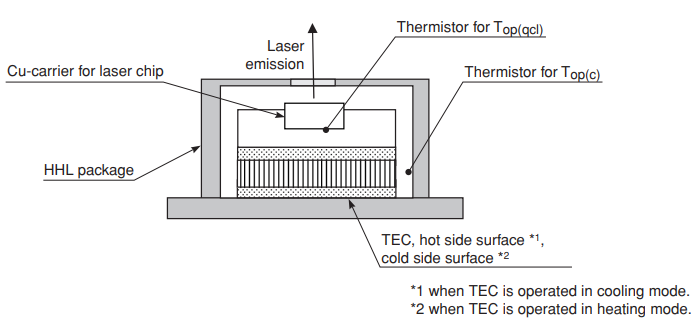

Thermistor Configuration (Schematic Diagram)

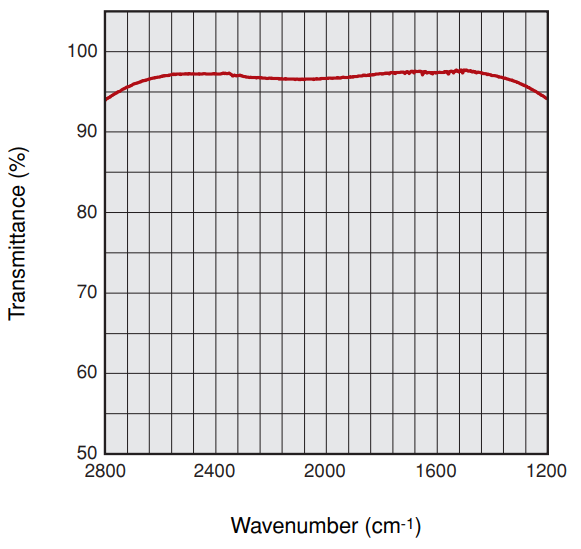

Typical Transmittance Curve of the Window

DFB-CW QCL Continuous Wave Quantum Cascade Laser Model List

HHL Package

Wavelength	Wavenumber	Target gases
4.33 μm	2310 cm⁻¹	CO₂, CO₂ isotope
4.53 μm	2209 cm⁻¹	N₂O
4.57 μm	2190 cm⁻¹	N₂O, CO
5.26 μm	1900 cm⁻¹	NO
6.13 μm	1631 cm⁻¹	NO₂
7.18 μm	1392 cm⁻¹	SO₃
7.39 μm	1354 cm⁻¹	SO₂
7.73 μm	1294 cm⁻¹	CH₄

Optional Configurations

Downloads

No resources available
