Multimode Fiber Chromatic Aberration Collimator 1064nm (Beam Waist Spot Diameter 4mm)

Multimode Fiber Chromatic Aberration Collimator 1064nm (Beam Waist Spot Diameter 4mm)

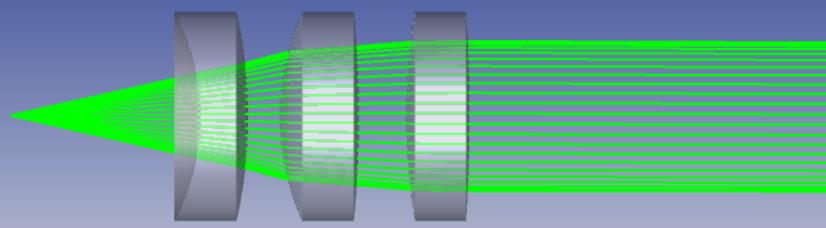

It is composed of a group of large numerical aperture lens systems, suitable for multimode fibers with larger numerical apertures. This system can reshape the beam emitted from the multimode fiber, or couple a collimated beam into the multimode fiber, ensuring good collimation and beam shape over long distances.

Product features：Achromatic processing, focal length is not sensitive to wavelength, collimator has rich wavelengths、 Large numerical aperture design、 Can be used for collimation or coupling、 Non-magnetic stainless steel housing

Part Number：MP-CLM-1064-4-0.2-PFA-P

Application area：Optical Network Testing | Industrial Sensing | Medical Endoscopes | Security Monitoring | Fiber Optic Device Testing

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Lens Coating Wavelength Beam Waist Spot

1064nm 1050-1700nm 4mm

Dimension Drawing

General Parameters

635nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
635nm	400~700nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
635nm	400~700nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

780nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
780nm	700~ 1100nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
780nm	700~ 1100nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

850nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
850nm	700~ 1100nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
850nm	700~ 1100nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

905nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
905nm	700~ 1100nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
905nm	700~ 1100nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

1064nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
1064nm	1050~ 1700nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
1064nm	1050~ 1700nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

1310nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
1310nm	1050~ 1700nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
1310nm	1050~ 1700nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

1550nm Multimode Fiber Chromatic Aberration Collimator

Center Wavelength	Lens Coating Wavelength	Waist Spot Diameter	Beam Divergence Angle	Effective Focal Length	Numerical Aperture (Lens)	Package Diameter	Fiber Type Input	Connector	Transmission Efficiency
1550nm	1050~ 1700nm	4mm	0.2 °	10mm	0.37	φ 11mm	62.5/125	FC/PC Sma905	>90%
1550nm	1050~ 1700nm	10mm	1.0 °	25mm	0.25	Φ 15mm	105/125	FC/PC Sma905	>90%

Optional Configurations

Downloads

Multimode Fiber Chromatic Aberration Collimator 1064nm (Beam Waist Spot Diameter 4mm).pdf
