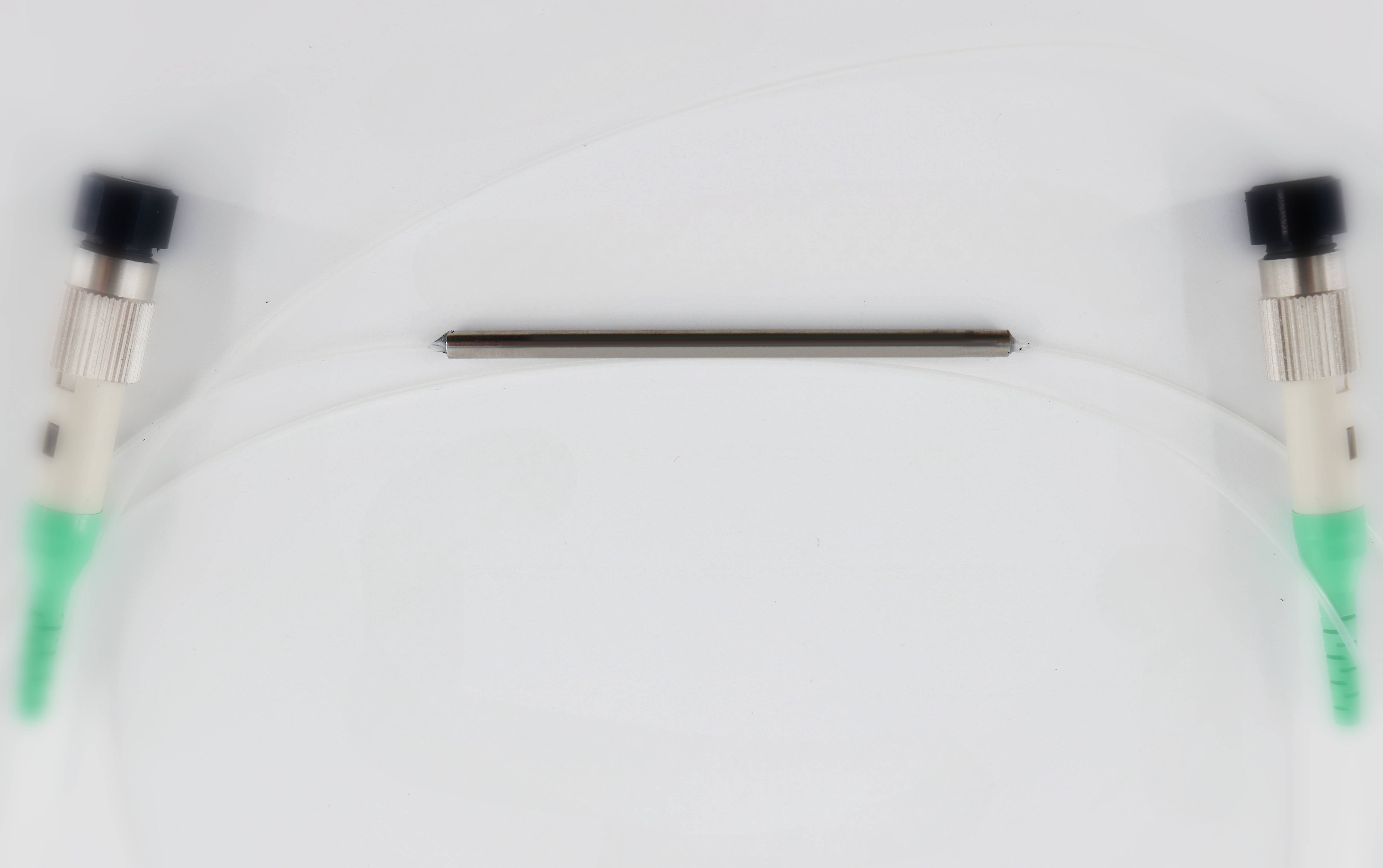

FBG Filter 100GHz 1062nm

FBG Filter 100GHz 1062nm

Fiber Bragg Grating (FBG) is a widely used component in optical communications. FBG functions as a narrowband filter in optical fibers. The Bragg grating is imprinted in the fiber using a holographic process. They can be produced using standard single-mode fibers or special fibers, such as radiation mode suppression fibers, which are designed to reduce cladding mode losses.

Product features：For 2.5 Gbps and 10 Gbps DWDM system technology 、ASE screening 、100 GHz and 50 GHz Channel Spacing Add-Drop Multiplexer

Part Number：MP-FBG-BP-1062-75-FA

Application area：DWDM technology for 2.5 Gbps and 10 Gbps systems、 ASE filtering、 Multiplexers for 100 GHz and 50 GHz channel spacing

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Passband Bandwidth

1062±0.1nm ±75pm

Dimension Drawing

General Parameters

Parameters

Parameters	Advanced	Standard
Wavelength	800 .. 1620 nm	1280 .. 1340nm; 1520 .. 1620 nm
Reflectivity	5 .. 99.99 %
FWHM	50GHz / 100GHz / 200GHz spacing（Customizable）
Passband bandwidth	> +/- 0.12 nm
Insertion loss	<0.1 dB
PDL	<0.2 dB
SNR adjusted channel	>25 dB	>20 dB
SNR non-adjusted channel	>30 dB	>25 dB
Terminal connection type	Bare ﬁber, FC/PC, FC/APC, ST, SC/PC, SC/APC, DIN, SMA
Packaging	3mm standard tube, 9mm athermal, boxed
Operating temperature	0°C .. 70°C

Spectral and Delay Characteristics (50 GHz Spacing)

Optional Configurations

Downloads

FBG Filter 100GHz 1062nm.pdf
