    • C-band gain-flattened erbium-doped fiber amplifier(BA-GF PM 26dbm Module FC/APC)

    The gain-flattened erbium-doped fiber amplifier is specially used in fiber laser or fiber communication systems. It can simultaneously amplify multiple wavelength signals in the C band and keep the gain between each wavelength consistent. The gain flatness is ≤1.5 dB. It has the ability to simultaneously amplify multiple wavelengths in a wide spectrum, as well as the advantages of gain flatness, adjustable gain, high gain and low noise

    Product features：Gain flatness、 High gain coefficient、 Wide wavelength range

    Part Number：MP-EDFA-C-26-M-BA-GF-PM

    Application area：Fiber optic communication、 Fiber optic sensing、 Fiber optic laser

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength range Saturated output power Gain flatness

    1530~1565nm 26dbm ≤1.5dB

  • Dimension Drawing
    • General Parameters

    Main Parameters:

    Optical indicators

    Unit

    Typ

    Note

    Wavelength range

    nm

    1530~1565nm


    Input power

    dBm

    -45~-25

    -12~ +3

    -25~ +3

    Customizable

    Max. output power

    dBm

    14

    17/20/23/25/26


    Adjustment range

    dB

    25

    25

    25


    Noise index

    dB

    5

    5

    5.5


    Working mode

    -

    ACC/APC/AGC


    Parameter adjustment range


    ACC ：0~100% ；APC ：10%~100% ；AGC ：0 ~25dB


    Gain flatness

    dB

    ≤1.5

    APC/AGC ，10~25dB

    Input/output isolation

    dB

    >35


    Optical power monitoring

    -

    Input and output optical power monitoring


    Fiber and connectors

    -

    SMF-28

    PM1550

    FC/APC connector

    Polarization-dependent gain

    dB

    ≤0.3

    -


    Polarization mode dispersion

    ps

    0.5

    -


    Polarization extinction ratio

    dB

    -

    ≥23






    Electrical and environmental parameters

    Benchtop

    Modules

    Control mode

    Button/RS232 serial communication

    RS232 Serial communication

    Communication interface

    DB9  Female

    DB9  Female

    Power supply

    100~240V AC,   <30W

    5V  DC,   <15W

    Dimensions

    260(W) ×280(D) × 120(H)mm

    125(W) × 150(D) ×20(H)mm

    Operating temperature range

    -5~ +35°C

    Operating humidity range

    0~70%




    Dimensions:

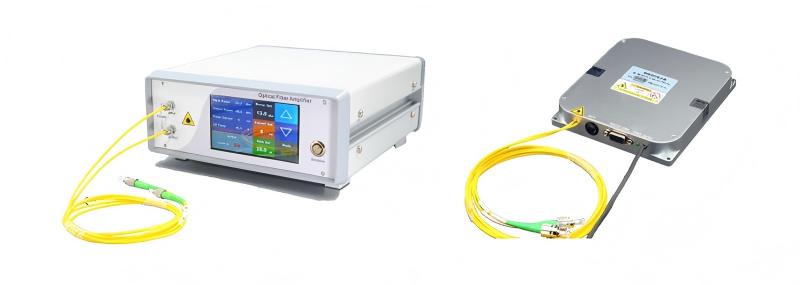

    Desktop object and Dimensions






    M20 Modular Model and Dimensions




    Appendix 1: Optional Configuration Table

    C-Band Gain-Flattened Erbium-Doped Fiber Amplifier



    Optional Configuration

    Product Name

    Working wavelength

    Type

    Saturated output power

    Fiber Type

    Connectors

    Package Type

    Optional configuration reserved

    Erbium-doped fiber amplifier

    C wavelength

    Gain-flat small signal amplifier

    PA-GF

    11-15dbm

    Single Mode

     FC/APC

    Modules




    Gain-flat power amplifier

    BA-GF

    16-20dbm

    Polarization Maintaining




    Benchtop





    Gain-flat line amplifier

    LA-GF

    21-25dbm








    26-30dbm









    Appendix 2:Part Number and Stock Number Comparison Table

    PN#

    Specification

    MP-EDFA-C-14-M-PA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened small signal amplifier PA-GF, saturated output power: 14dbm, polarization-maintaining, FC/APC connector, module

    MP-EDFA-C-14-B-PA-GF-SM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened small signal amplifier PA-GF, saturated output power: 14dbm, single mode, FC/APC connector, benchtop

    MP-EDFA-C-23/25-M-BA-GF-SM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened power amplifier BA-GF, saturated output power: 23/25dbm, single mode, FC/APC connector, module

    MP-EDFA-C-26-M-BA-GF-SM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened power amplifier BA-GF, saturated output power: 26dbm, single mode, FC/APC connector, module

    MP-EDFA-C-17/20-M-BA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened power amplifier BA-GF, saturated output power: 17/20dbm, polarization-maintaining, FC/APC connector, module

    MP-EDFA-C-23/25-M-BA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened power amplifier BA-GF, saturated output power: 23/25dbm, polarization-maintaining, FC/APC connector, module

    MP-EDFA-C-26-M-BA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened power amplifier BA-GF, saturated output power: 26dbm, polarization-maintaining, FC/APC connector, module

    MP-EDFA-C-26-B-BA-GF-SM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened power amplifier BA-GF, saturated output power: 26dbm, single mode, FC/APC connector, benchtop

    MP-EDFA-C-23/25-B-LA-GF-SM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened line amplifier LA-GF, saturated output power: 23/25dbm, single mode, FC/APC connector, benchtop

    MP-EDFA-C-26-B-LA-GF-SM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened line amplifier LA-GF, saturated output power: 26dbm, single mode, FC/APC connector, benchtop

    MP-EDFA-C-17/20-B-LA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened line amplifier LA-GF, saturated output power: 17/20dbm, polarization-maintaining, FC/APC connector, benchtop

    MP-EDFA-C-23/25-B-LA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened line amplifier LA-GF, saturated output power: 23/25dbm, polarization-maintaining, FC/APC connector, benchtop

    MP-EDFA-C-26-B-LA-GF-PM

    C-band gain-flattened erbium-doped fiber amplifier, gain-flattened line amplifier LA-GF, saturated output power: 26dbm, polarization-maintaining, FC/APC connector, benchtop



    Optional Configurations

    --

    Downloads

    C-band gain-flattened erbium-doped fiber amplifier(BA-GF PM 26dbm Module FCAPC).pdf

    Request for Quotation

    We will reply to all your information about the product in time.

  • Product title: C-band gain-flattened erbium-doped fiber amplifier(BA-GF PM 26dbm Module FC/APC)
  • Product link: https://www.idealphotonics.com/product/detail/332.html

    • *Your name:

    • *Phone number:

    • *Your company name:

    • *Email:

    • *Purchase Quantity:

    • *Part Number:

      • Other Requirements:
