633nm DBR Polarization-Maintaining Laser Diode

633nm DBR Polarization-Maintaining Laser Diode

The 633nm DBR laser diode is a single-frequency semiconductor laser based on a Distributed Bragg Reflector (DBR) structure, with a typical center wavelength of 633 nm. It is housed in an industry-standard 14-pin hermetic butterfly package and is available in either free-space output or fiber-coupled output configurations. The product features narrow linewidth, high side-mode suppression ratio, and excellent single-mode output characteristics, making it suitable for Raman spectroscopy and other precision optical applications requiring narrow laser linewidth.Used in precision optical applications requiring narrow laser linewidth.

Product features：Single-frequency narrow-linewidth output；High side-mode suppression ratio；Multiple output options；Standard butterfly package

Part Number：MP-DBR-633-L-PA

Application area：Raman spectroscopy | Precision spectral measurement | Optical inspection and scientific research | OEM optical systems

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center wavelength Laser linewidth Output power

633 nm 10 MHz (typical) 20 mW (free-space) / 12 mW (fiber-coupled)

Dimension Drawing

General Parameters

Parameter	Specification
Package type	14-pin hermetic butterfly package
Output mode	Free-space / fiber-coupled
Center wavelength	633 nm (typical)
Wavelength range	632～634 nm
Side-mode suppression ratio (SMSR)	45 dB (typical)
Laser linewidth (FWHM)	10 MHz (typical), 20 MHz (MAX.)
Temperature wavelength coefficient	0.05 nm/℃ (typical)
Current wavelength coefficient	0.005 nm/mA (typical)
Free-space output power	20 mW (typical)
Fiber-coupled output power	12 mW (typical)
Mode structure	TEM00
Polarization	TE
Operating voltage	2.3 V (typical)
Slope efficiency	0.3 W/A (typical)
Threshold current	55 mA (typical), 70 mA (MAX.)
Recommended operating current	120 mA
Recommended chip temperature	15～25 ℃
TEC current	MAX.2.9 A
TEC voltage	MAX.2.9 V
Thermistor resistance @25°C	10 kΩ (typical), 9.9–10.1 kΩ
Thermistor β coefficient	3435
Case temperature	5～45 ℃
Storage temperature	5～85 ℃
MAX. LD forward current	150 mA
MAX. LD reverse voltage	0 V

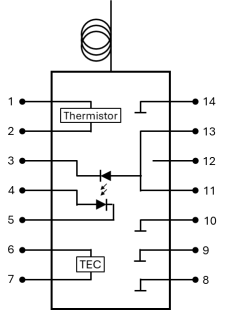

Pinout


Pin#	Function	Pin#	Function
1	Thermistor	8	Case
2	Thermistor	9	Case
3	LD (-)	10	Case
4	PD (+)	11	LD (+)
5	PD (-)	12	NC
6	TEC (+)	13	LD (+)
7	TEC (+)	14	Case

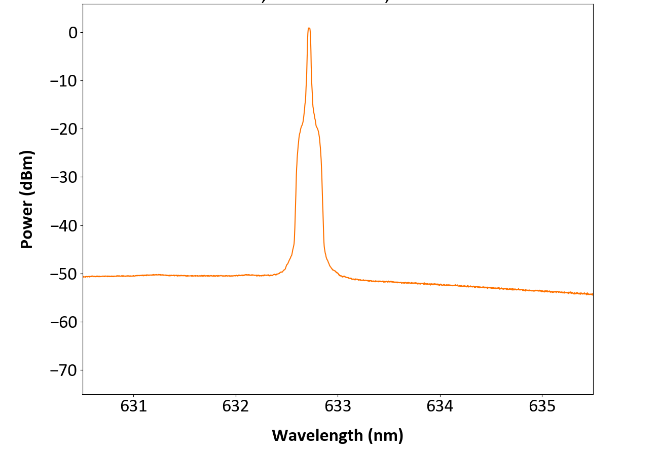

Typical Output Spectrum


Optional Configurations

Downloads
