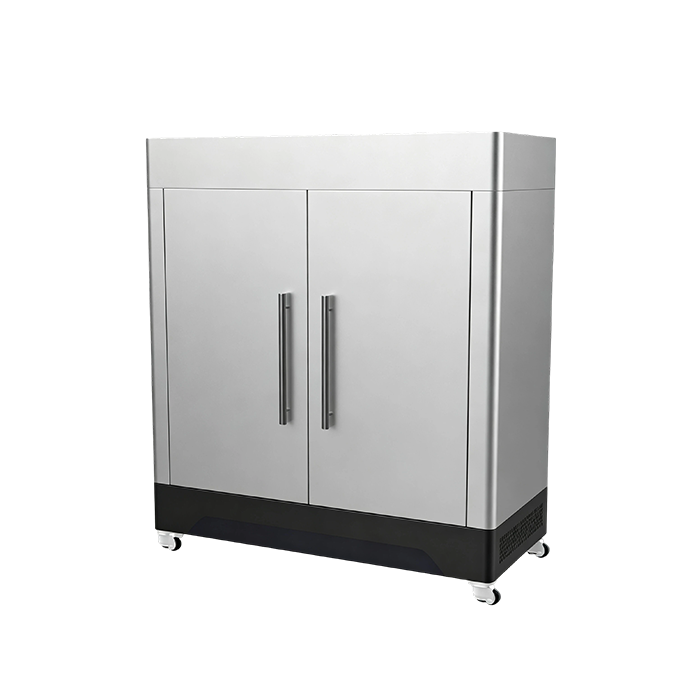

Laboratory Darkroom Hyperspectral Imaging System

Laboratory Darkroom Hyperspectral Imaging System

The Laboratory Darkroom Hyperspectral Imaging System is an integrated hyperspectral imaging platform designed for scientific research and high-precision inspection applications. It can be configured with a 400-1000 nm visible-to-near-infrared (VIS-NIR) or 900-1700 nm near-infrared (NIR) hyperspectral camera, enabling stable and repeatable acquisition of sample spectral and spatial information in a controlled darkroom environment. The system integrates a high-precision motion platform, full-spectrum illumination, imaging control, and acquisition software. It can perform autofocus, precision scanning, and continuous imaging, making it suitable for scenarios such as material analysis, biological detection, cultural relic research, hyperspectral teaching, and basic scientific research.

Product features：Visible to near-infrared multi-band configuration；Simultaneous acquisition of spectral and spatial information；High-precision automatic scanning platform；Controlled darkroom imaging environment

Part Number：MP-EHL10-A

Application area：Material analysis | Food and agricultural research | Biology and life sciences | Hyperspectral algorithm research

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Spectral range Spectral resolution Number of Spectral Bands

400–1000 nm / 900–1700 nm 2.5 nm / 4 nm 1200 / 512

Dimension Drawing

General Parameters

Category	Parameter	MP-EHL10-A	MP-EHL10-B	MP-EHL17-B
Hyperspectral Camera	Dispersion method	Concave grating	Concave grating	Plane reflection grating
	Spectral range	400–1000 nm	400–1000 nm	900–1700 nm
	Number of spectral bands	1200	1200	512
	Spectral resolution (FWHM)	2.5 nm	2.5 nm	4 nm
	Number of spatial pixels	1920	1920	640
	Pixel size	5.86 μm	5.86 μm	15 μm
	Aperture	F/2.5	F/2.5	F/2.5
	Optical magnification	1×	1×	1×
	Effective slit width	23 μm	23 μm	30 μm
	Effective slit length	11 mm	11 mm	9.6 mm
	Sensor	CMOS	CMOS	InGaAs focal plane
	Pixel depth	8/10 bit	8/10 bit	14 bit
	SNR(PEAK)	600:1	600:1	—
	Spectral/pixel binning	1, 2, 4 spectral and pixel binning	1, 2, 4 spectral and pixel binning	—
	Full-band imaging speed	84 fps	84 fps	300 fps
	Maximum ROI imaging speed	5200 fps	5200 fps	3500 fps
	ROI	Single region	Single region	Single region
	Data interface	USB 3.0	USB 3.0	USB 3.0
	Power supply	Built-in battery
	Auxiliary imaging	Built-in auxiliary camera for monitoring the scanning area
	Focusing method	Motorized focusing
Lens	field of view (FOV)	12.5° / 18.4° / 49.2° / 69.7°(default)	12.5° / 18.4° / 49.2° / 69.7°(default)	18.4° / 26.2° / 61.9°(default)
Motion Mechanism	Motion axes	XYZ three-axis precision motion control
	Travel	20 mm, customizable
	Guide rail	Linear ball guide rail
	Maximum load	10 kg, customizable
	Full-step resolution	2 μm
	Repeat positioning accuracy	±0.5 μm
	Motion parallelism	≤10 μm
Illumination System	Light source type	High-performance halogen lamp
Illumination System	Light source coverage	Full spectrum
System Platform	Test environment	Darkroom
System Platform	Overall platform	Standard test platform
Software	Data acquisition software	Supported
Software	SDK secondary development	Supported

Optional Configurations

Downloads

No resources available
