    • 200HzFiber Bragg Grating Accelerometer

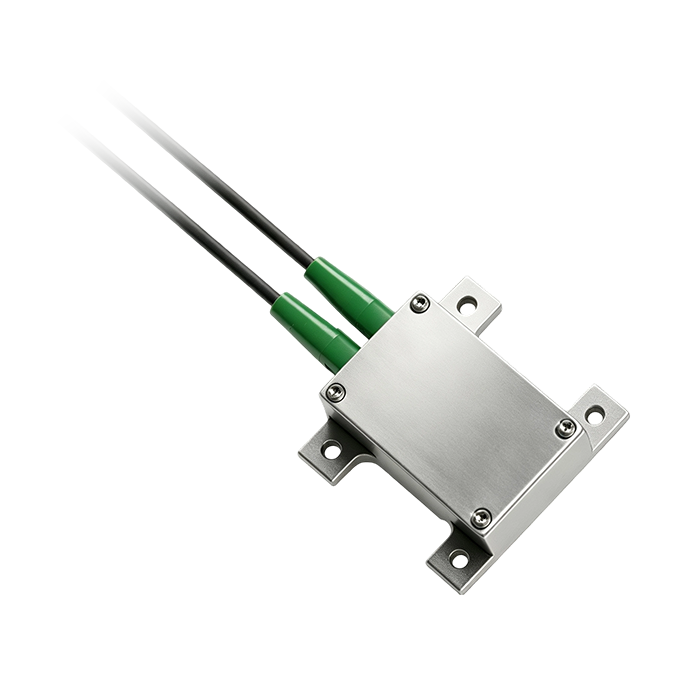

    The MP-BG-FBGS-3000 fiber Bragg grating accelerometer features a threaded connection structure for quick and easy installation, and is reusable. It can also be fixed by adhesive bonding or welding. The rugged armored optical cable is tightly integrated with the sensor, effectively protecting the optical fiber and eliminating stress. With dual-end fiber outputs, the sensor can be connected in series, facilitating the construction of sensor networks.

    Product features：High precision and high sensitivity；Excellent anti‑interference capability；Compact and lightweight；Reusable and suitable for distributed networking

    Part Number：MP-BG-FBGS-3000

    Application area：Aerospace | Railway transportation | Civil engineering | Industrial equipment and machinery condition monitoring

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Sensitivity Frequency Range

    ~22 pm/g DC - 200 Hz (customizable)

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Measurement range

    ±50 g, ±100 g, customizable

    Sensitivity

    ~22 pm/g

    Frequency range

    DC – 200 Hz, customizable

    Mounted resonance frequency

    ~250 Hz (varies with frequency range)

    Accuracy

    Better than ±(0.2 + 0.001 × F.S.) Hz

    Transverse sensitivity

    <5%

    Operating temperature

    –40 °C to +80 °C / –40 °C to +200 °C, customizable

    Base dimensions

    55 × 39 × 14.5 mm, customizable

    Sensor weight

    150g

    Connector type

    FC/APC, FC/PC, SC, ST, customizable

    Cable type

    3 mm armored optical cable, customizable

    Mounting method

    Threaded connection, adhesive bonding, welding

    Center wavelength

    1510nm~1590nm

    Wavelength deviation

    -0.3~0.3nm

    Reflectivity

    ≥90%

    –3 dB bandwidth

    ≤0.3nm

    Side‑mode suppression ratio

    ≥15dB


    Optional Configurations

    --
