    • Fiber Array Standard V-Groove

    The Standard Fiber Array V-Groove is fabricated from high-precision quartz, Pyrex, or Tempax glass materials and is specifically designed for fiber array (FA) packaging. Manufactured with a high-precision V-groove process, it enables precise positioning and secure fixation of optical fibers. The product offers excellent dimensional consistency, pitch accuracy, and environmental stability, and is widely used in optical communication applications such as PLC optical splitters, AWGs, fiber couplers, MEMS devices, and high-speed optical transceivers.

    Product features：High‑precision V‑groove processing technology；High fiber positioning accuracy and consistency；Supports 125 μm and 250 μm fibers；Excellent environmental stability

    Part Number：MP-FVG-2-250

    Application area：PLC optical splitters | AWG (Arrayed Waveguide Gratings) | Fiber couplers | Multi-channel optical switches | SIP optical packaging | 40G/100G high-speed optical transceivers

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Number of Channels Fiber Pitch

    2, 4, 8, 16, 32, 64, 96, 128 CH 127 μm / 250 μm

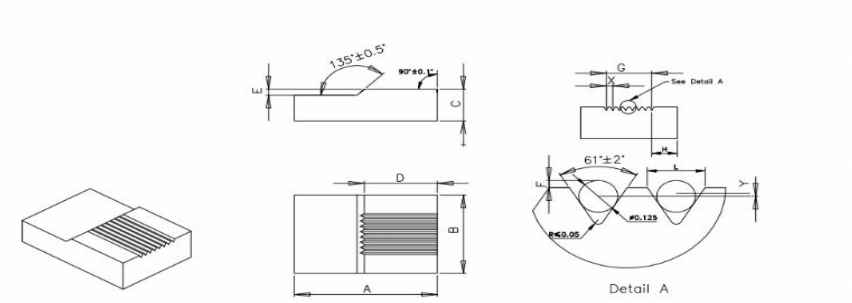

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Material

    Quartz, Pyrex, or Tempax glass

    Number of channels

    2、4、8、16、32、64、96、128 CH

    Fiber pitch

    127 μm / 250 μm

    Individual groove pitch tolerance

    ±0.0005 mm

    Total pitch tolerance

    ±0.0005～±0.0012 mm(varies with channel count)

    Height

    1.5 mm

    Dimensions

    Standard or custom according to customer requirements



    Channels

    Fiber Pitch

    Length (mm)

    Width (mm)

    Height (mm)

    2 CH

    250 μm

    10

    2.5

    1.5

    4 CH

    250 μm

    10

    2.5

    1.5

    8 CH

    250 μm

    12

    2.5

    1.5

    8 CH

    127 μm

    12

    2.5

    1.5

    16 CH

    127 μm

    12

    3.5

    1.5

    32 CH

    127 μm

    12

    5.7

    1.5

    64 CH

    127 μm

    12

    9.8

    1.5

    96 CH

    127 μm

    13.7

    12

    1.5

    128 CH

    127 μm

    20

    15

    1.5
