    • InGaAs Scientific-Grade High-Speed Short-Wave Infrared Camera

    The short-wave infrared (SWIR) camera is a high-performance imaging device developed for low-light scientific imaging, SWIR microscopy, and industrial inspection applications. Equipped with an InGaAs detector, the camera covers a spectral response range of 0.95-1.7 μm, enabling near‑infrared and SWIR imaging that conventional visible-light cameras cannot achieve. It features a 640 × 512 resolution sensor with a pixel size of 15 μm × 15 μm, and achieves a maximum frame rate of 350 fps at full resolution. The camera supports arbitrary-size ROI setting, meeting the requirements for laser beam tracking, high-speed dynamic observation, and scientific experiments. The product incorporates TEC semiconductor cooling and offers advanced image processing capabilities including black-level correction, dead-pixel correction, 3D noise reduction, LUT, and Gamma adjustment. Communication is via a GigE interface, compliant with GigE Vision V1.2 and GenICam standards, and it works seamlessly with machine vision and scientific software such as Halcon, VisionPro, and LabVIEW, facilitating integration into scientific instruments and automated inspection systems.

    Product features：InGaAs SWIR detector；640 × 512 high‑speed imaging；TEC semiconductor cooling；12‑bit high‑grayscale imaging；Rich image processing functions

    Part Number：MP-SWIR-0.95-1.7-12

    Application area：Fluorescence imaging | Laser beam tracking imaging | Semiconductor inspection | Scientific SWIR imaging

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Spectral Response Power Consumption Resolution Max Frame Rate

    0.95–1.7 μm < 12 W 640 × 512 350 fps

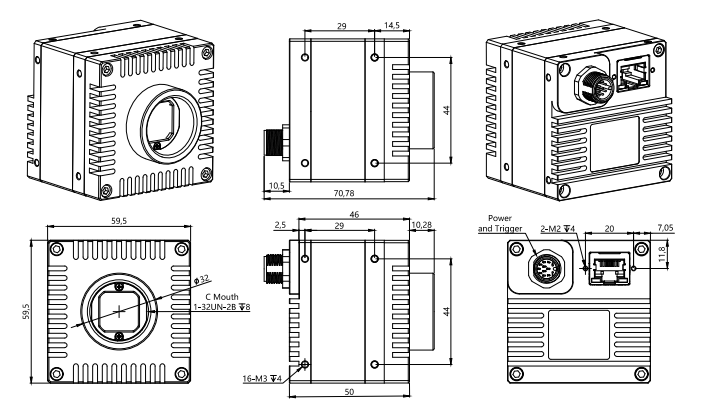

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Sensor size

    9.6×7.68mm

    Sensor type

    InGaAs

    Pixel size

    15×15μm

    Effective pixels

    300 k

    Resolution @ frame rate

    640×512，max@350fps

    Spectral response

    0.95~1.7μm

    Exposure mode

    Global shutter

    Sensitivity

    121mV（1/30s）

    Dynamic range

    ≥55dB

    GPIO

    1 × trigger input, 1 × strobe output; 1 × GPIO input, 1 × GPIO output, 1 × non‑isolated bi‑directional I/O

    Max gain (factor)

    126

    Exposure time range (ms)

    0.007~2150.4

    AD resolution

    12bit

    Frame buffer

    256M Bytes

    User-defined data area

    2K Bytes

    Video output

    SWIR

    Vision standard protocols

    GigE Vision V1.2、GenICam

    Lens mount

    C-mount

    Interface

    Gigabit Ethernet

    Power supply

    12V DC

    Power consumption

    <12W

    Dimensions

    59.5×59.5×46mm(excluding lens mount and rear connector)

    Weight

    <500g

    TEC cooling

    40 °C temperature difference between hot and cold sides

    Operating temperature

    0~50℃

    Operating humidity

    20~80%(non-condensing)

    Storage temperature

    -30~60℃

    Storage humidity

    20~95%(non-condensing)

    Operating systems

    WIN XP, WIN 7/8/10 32‑ & 64‑bit, Linux and ARM Linux drivers, Android platform drivers, MAC OS

    Drivers / components

    DirectShow component, Halcon dedicated component, LabVIEW dedicated driver, OCX component, TWAIN component



    Pinout Definition

    Pin No.

    Wire Color

    Signal Name

    Signal Description

    Remark

    1

    Black

    GND

    Camera power supply GND (negative input)


    2

    Red

    DC12V+

    Camera power supply DC12V+ (positive input)


    3

    Gray

    GPI1+/ TRIG_IN+

    GPI1 or trigger input optocoupler positive terminal

    Default: trigger

    4

    Pink

    GPI1 -/ TRIG_IN-

    GPI1 or trigger input optocoupler negative terminal

    Default: trigger

    5

    Brown

    GPI2+

    GPI2 input optocoupler positive terminal


    6

    White

    GPI2 -

    GPI2 input optocoupler negative terminal


    7

    Green

    GPI3+/GPO3+

    GPI3 input or GPO3 output optocoupler positive terminal

    Default: output

    8

    Yellow

    GPI3 -/GPO3-

    GPI3 input or GPO3 output optocoupler negative terminal

    Default: output

    9

    Blue

    GPO1+/STRB_OUT+

    GPO1 or strobe output optocoupler positive terminal

    Default: strobe

    10

    Light green

    GP01-/STRB_OUT-

    GPO1 or strobe output optocoupler negative terminal

    Default: strobe

    11

    Violet

    GPO2+

    GPO2 output optocoupler positive terminal


    12

    Orange

    GPO2-

    GPO2 output optocoupler negative terminal
