    • Four-Axis SCARA Industrial Robot

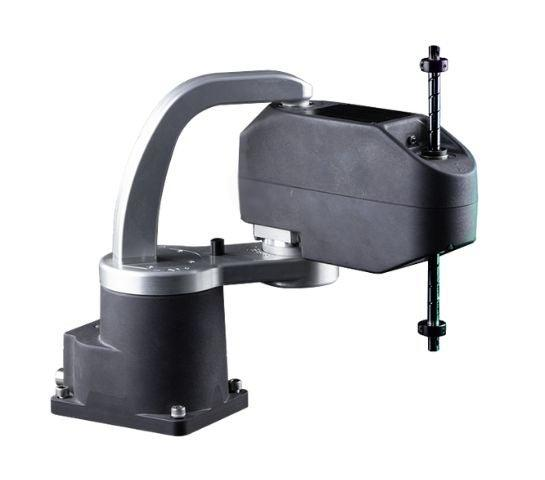

    The MP-SCARA-0.5-1 is an ultra-compact four-axis SCARA industrial robot developed specifically for high-speed, high-precision automation applications. It features an integrated design that combines the control system, power module, and robot body into a complete automation platform, enabling rapid integration into production equipment, laboratory instruments, and automation workstations. With its high-speed cycle capability, high repeat positioning accuracy, and compact structure, this product is particularly well-suited for high-speed pick-and-place, precision assembly, laboratory automation, and electronics manufacturing.

    Product features：Compact SCARA design；High repeat positioning accuracy；High‑speed motion performance；Integrated control architecture；Rapid integration；Flexible mounting options

    Part Number：MP-SCARA-0.5-1

    Application area：High-speed pick-and-place、Precision assembly | Laboratory automation | Medical devices | Optical manufacturing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Horizontal reach Position repeatability

    225 nm 0.005 mm

  • Dimension Drawing
    • General Parameters

    Parameter

    Value

    Horizontal reach

    225 mm

    Position repeatability

    0.005 mm

    Rated payload

    500 g

    Maximum payload

    1.0 kg

    Robot arm weight

    4.3 kg

    Mounting orientations

    Tabletop or upside down

    Range for joint 1

    [-140°, 140°]

    Range for joint 2

    [-145°, 145°]

    Range for joint 3

    [-102 mm, 0 mm]

    Range for joint 4

    [-360°, 360°]

    Cycle time

    0.42 s

    Maximum speed for joint 1

    300°/s

    Maximum speed for joint 2

    500°/s

    Maximum speed for joint 3

    700 mm/s

    Maximum speed for joint 4

    5000°/s

    Average power consumption

    200 W

    Operating ambient temperature range

    [5°C, 35°C]

    Operating ambient relative humidity range

    [10%, 80%](non-condensing)

    IP rating

    IP 40


    Optional Configurations

    --
