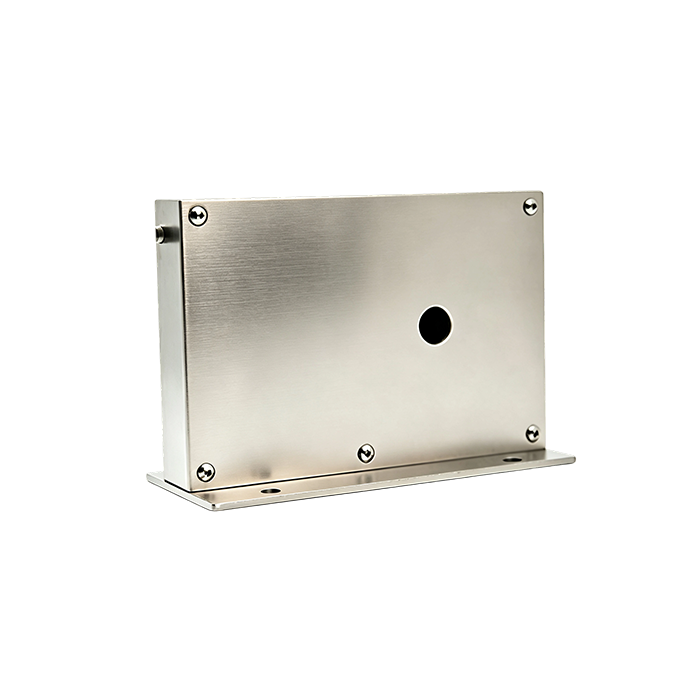

    • Laser Safety Interlock Shutter

    specifically designed for highpower continuouswave (CW) lasers and highenergy pulsed laser systems. Featuring a highspeed electromechanical drive structure and highdamagethreshold mirrors, it provides reliable, fast, and stable beam control in applications such as laser safety interlocking, pulse gating, and laser exposure control. The MPLST300 supports a large 16 mm clear aperture and handles up to 300 W of continuous optical power. It offers both metallic and dielectric mirror options, making it compatible with Nd:YAG, CO₂, UV, and other laser systems.

    Product features：Large aperture design; supports high-energy lasers; supports laser safety interlocking; compatible with metal and dielectric mirrors

    Part Number：MP-LST-300

    Application area：Laser safety interlock systems | Q-switched laser pulse gating | Nd:YAG solid-state lasers | High-power | industrial lasers | Semiconductor manufacturing | Scientific research platforms | Optical testing and metrology | Laser material processing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Clear Aperture Recommended Beam Diameter Maximum CW Optical Power

    16 mm 1–14 mm 300 W (+50 W requires water cooling)

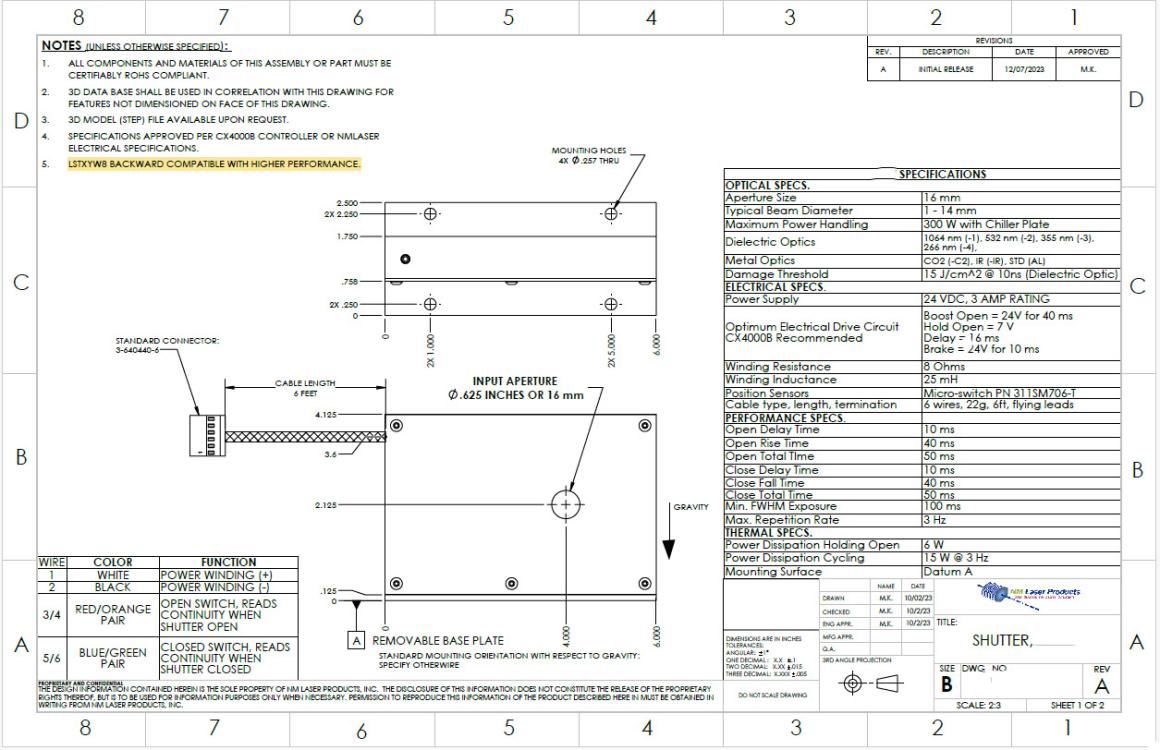

  • Dimension Drawing
    • General Parameters

    Optical Specifications

    Clear Aperture

    16 mm

    Recommended Beam Diameter

    1–14 mm

    Maximum CW Optical Power

    300 W (+50 W requires water cooling)

    Optics Options

    Gold, Aluminum, or Dielectric

    Dielectric Optics Suffix

    1064 nm（-1）、532 nm（-2）、355 nm（-3）、266 nm（-4）

    Metal Optics Suffix

    CO₂（-C2）、IR（-IR）、STD（-AL）

    Laser‑Induced Damage Threshold

    15 J/cm² (@ 10 ns, Dielectric Optics)



    Electrical Specifications

    Power Supply

    24 VDC, 3 A rating

    Boost open: 24 V for 40 ms

    Hold open: 7 V, delay 16 ms

    Brake: 24 V for 10 ms

    Recommended Controller

    CX4000B

    Shutter Winding Resistance

    8 Ω nominal

    Nominal Winding Inductance

    25 mH

    Position Sensors

    Micro‑switch PN 311SM706‑T

    Cable/Wire Type, No., Length, Termination

    6‑conductor cable, 6 wires, 22 AWG, 6 ft., MTA‑100 connector or flying leads



    Performance Specifications

    Open Delay Time

    10 ms

    Open Rise Time

    40 ms

    Total Open Time

    50 ms

    Close Delay Time

    10 ms

    Close Fall Time

    40 ms

    Total Close Time

    50 ms

    Minimum FWHM Exposure Capability

    100ms

    Maximum Shutter Repetition Rate

    3Hz



    Thermal Specifications

    Thermal Power Dissipation (Holding Open)

    6 W

    Thermal Power Dissipation (Repetitive Cycling)

    15 W @ 3 Hz

    Mounting Surface for Thermal Sinking

    Datum A



    Custom Options

    Optics

    Gold, Aluminum, or Dielectric

    Wire Length, Cable Type

    Any 6‑conductor cable length

    Connector

    Any 6‑pin connector, MTA standard

    Identification

    Engraving, Labels


    Pin Assignments (Wire Color ‑ Pin No.)

    Color

    Description

    1 ‑ White

    Power Winding (+)

    2 ‑ Black

    Power Winding (-)

    3 ‑ 4 ‑ Red/Orange Pair

    Open Switch – reads continuity when shutter is open

    5 ‑ 6 ‑ Blue/Green Pair

    Reads continuity when shutter is closed



    General Attributes

    Dimensions

    6 in × 1 in × 4 in

    Weight

    ~1.5 lb

    Classification

    Safety / Pulse Gating

    Gravity Considerations

    Mounting orientation affects the power required to open. Not designed for upside‑down mounting.
