    • 375–1550 nm Compact Fiber-Coupled LD Light Source

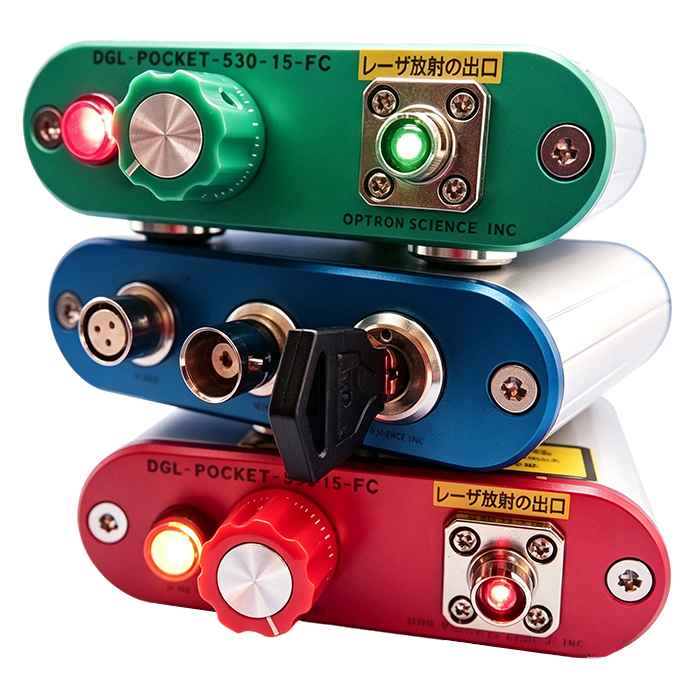

    The MP-LD series is a pocket-sized, lightweight, compact fiber-coupled LD light source device.

    Product features：Single-mode fiber-coupled LD light source；Wavelength range: 375–1550 nm, selectable according to application；External modulation: TTL DC–10 kHz

    Part Number：MP-LD-375-1550-30-SA

    Application area：Optical component inspection | Optical equipment alignment | Various optical sensing | Research and development

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Peak Wavelength Output Power

    375–1550 nm (multiple bands) 1–30 mW

  • Dimension Drawing
    • General Parameters



    Parameter

    Details

    Peak wavelength

    375, 405, 450, 520, 635, 658, 830, 980, 1300, 1550

    Output Power (mW)

    1–30 mW

    Fiber Type

    Single-mode

    Connector

    FC connector / SC connector

    Driving Mode

    APC · ACC

    External Modulation

    TTL HI: OFF, LOW: ON (DC–10 kHz)

    Dimensions

    24 mm (H) × 81 mm (W) × 64 mm (D), approx. 120 g (excluding rubber feet)

    Operating temperature

    0–35 °C

    Storage temperature

    0–80 °C



    Product Characteristics

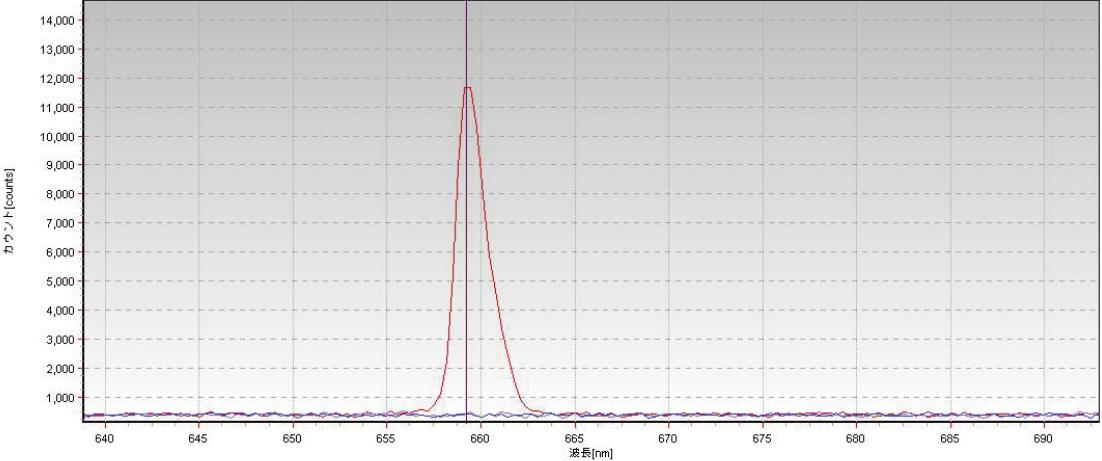

    Wavelength Measurement (659 nm)

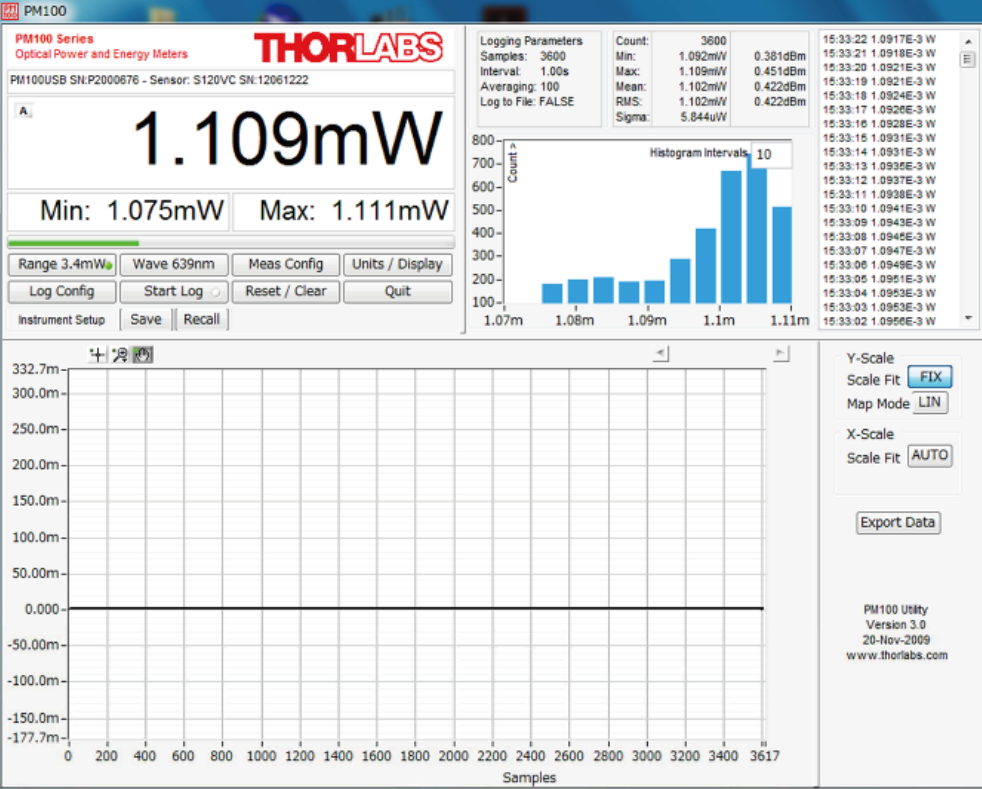

    Output Power Stability Data (659 nm, room temperature 25 ℃)


    Optional Configurations

    --
