    • 190–440 nm UV‑Enhanced Miniature Spectrometer

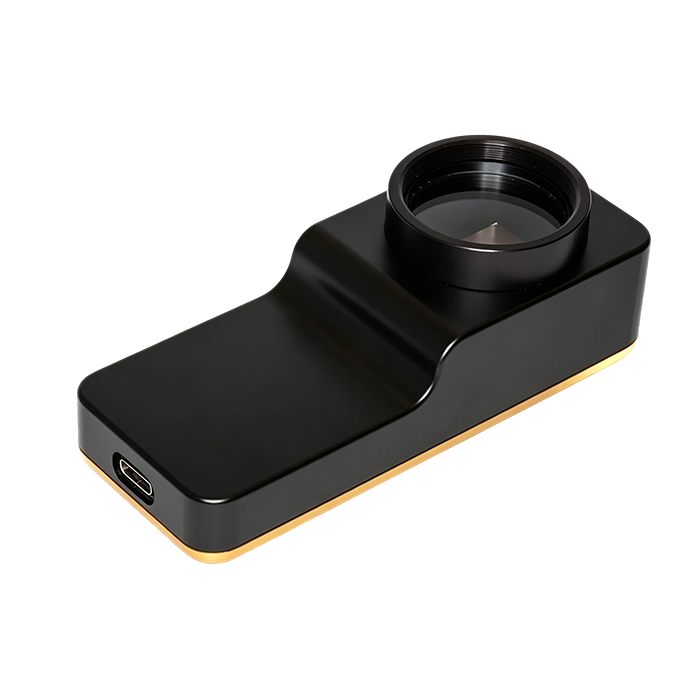

    The Spectre Mini is a UV-enhanced miniature spectrometer (190–440 nm) designed for ultraviolet spectral measurement and light source analysis.This compact spectral analysis module is suitable for a wide range of applications, including UV detection, LED spectral testing, industrial and research optical analysis, and OEM system integration.

    Product features：UV‑enhanced design (190–440 nm)；High‑sensitivity UV detection capability；Suitable for compact/portable system integration；Supports light source analysis and absorption/emission measurements；Industrial‑grade stability design

    Part Number：MP-SPE-190-440

    Application area：UV spectral analysis | Materials and chemical analysis | Industrial inspection | OEM integration applications

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range FHWM

  • Dimension Drawing
    • General Parameters

    Parameter

    Value

    Wavelength Range

    190–440nm

    Numerical Aperture

    0.22

    Free-Space Full Field of View

    25°

    Nominal Spectral Resolution

    0.87nm

    FHWM Spectral Resolving Power

    5–6nm

    Bit Depth

    Linearized 16-bit

    Integration Time (Exposure)

    10µs to 10s

    Maximum Frame Rate

    840 FPS Calibrated,2,000 FPS Raw

    Optical and Temperature Calibrations

    Embedded Onboard

    Operating Temperature

    +5°C to 50°C

    Operating Modes

    Automatic and Manual

    Electrical Interface

    Enclosed

    Board Level

    USB 2.0 Type C; PoE M12 X-Coded Ethernet; USB 2.0 Type C; PoE M12 X-Coded Ethernet; PoE RJ45 Ethernet; UART Board to Board (3.3V); I2C Board to Board (3.3V); Power Board to Board (5.0V I/O); Input & Output Triggers (Up to 24V)

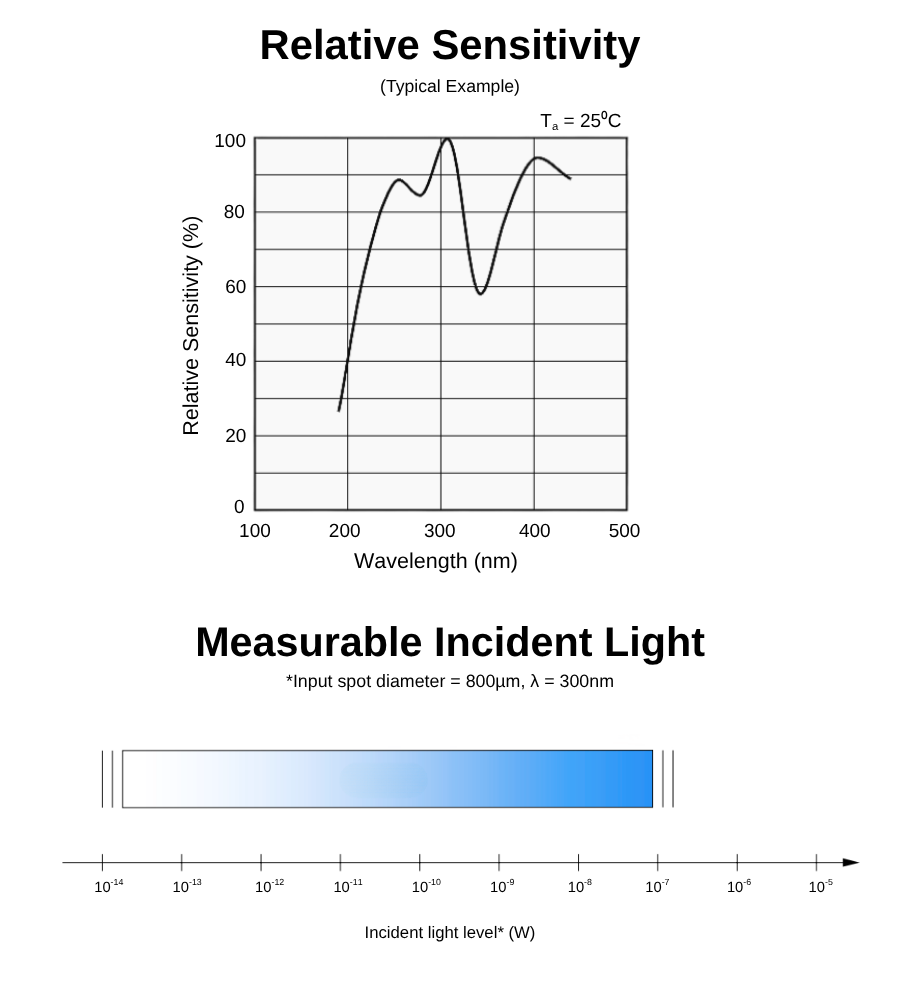

    Relative Sensitivity Curve



    Optional Configurations

    --
