    • 340–850 nm Miniature Spectrometer

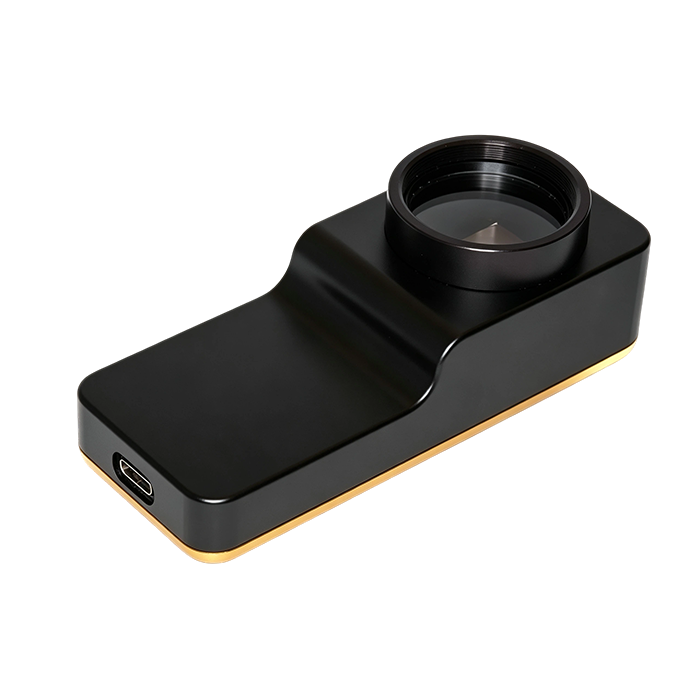

    MP-SPE-340-850 is a compact gratingbased miniature spectrometer module covering the spectral range from 340 nm to 850 nm, suitable for spectroscopic analysis in the ultraviolet, visible, and nearinfrared regions. Designed for OEM integration and industrial inspection applications, it features high sensitivity, miniaturisation, and low power consumption, and can be embedded into various automated optical systems.

    Product features：Broad spectral coverage (340–850 nm)； Miniaturised design；High‑speed real‑time spectral acquisition；High‑sensitivity detection capability；Solid‑state construction with no moving parts；Versatile for multiple scenarios

    Part Number：MP-SPE-340-850

    Application area：Light source testing and spectral analysis | Optical characterisation of materials | Biological and chemical analysis | Industrial in-line inspection and quality control

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range FHWM

    340–850 nm 8–10 nm

  • Dimension Drawing
    • General Parameters

    Parameter

    Value

    Wavelength Range

    340–850 nm

    Numerical Aperture

    0.22

    Free-Space Full Field of View

    25°

    Nominal Spectral Resolution

    1.77 nm

    FHWM Spectral Resolving Power

    8–10 nm

    Bit Depth

    Linearized 16-bit

    Integration Time (Exposure)

    10 µs to 10 s

    Maximum Frame Rate

    840 FPS Calibrated,2,000 FPS Raw

    Optical and Temperature Calibrations

    Embedded Onboard

    Operating Temperature

    +5°C to 50°C

    Operating Modes

    Automatic and Manual

    Electrical Interface (Enclosed)

    USB 2.0 Type C

    Electrical Interface (Enclosed)

    PoE M12 X-Coded Ethernet

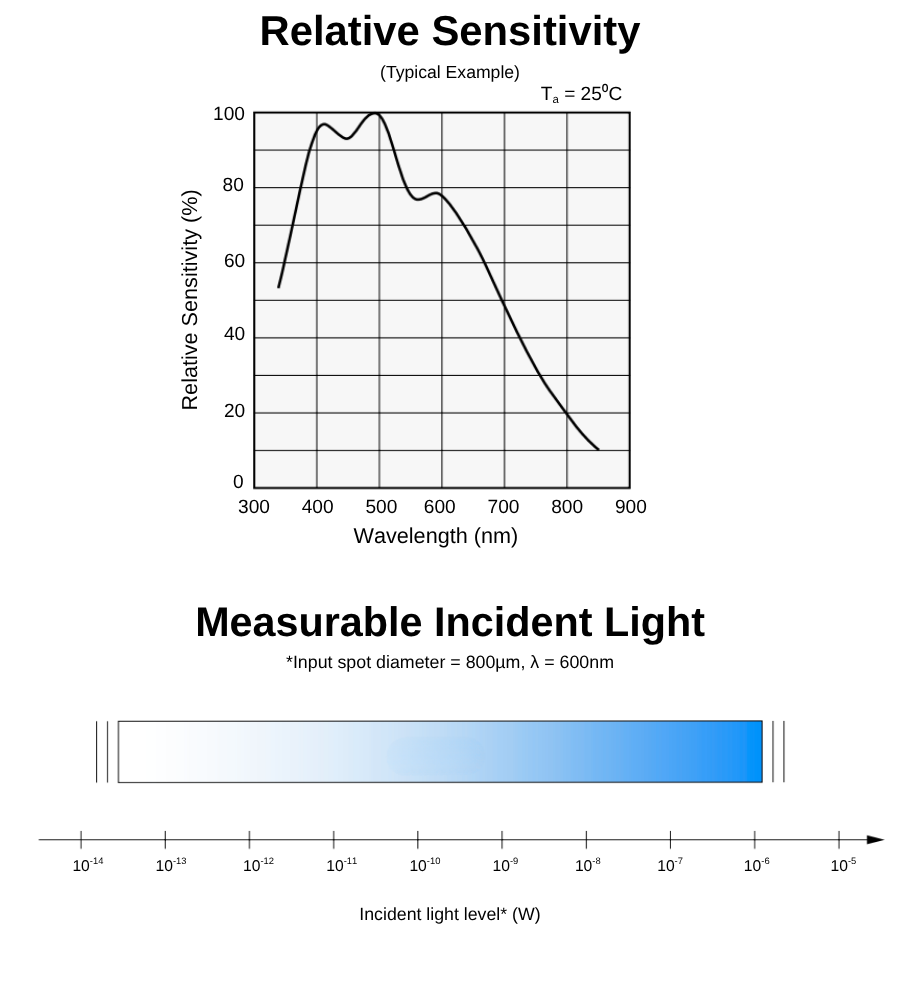

    Relative Sensitivity Curve



    Optional Configurations

    --
