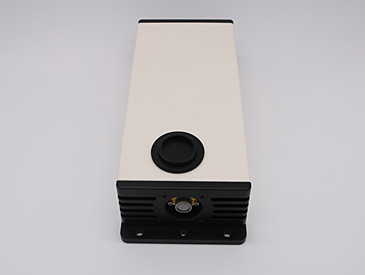

    • 7.4um Low-Power Desktop DFB-QCL Mid-Infrared Quantum Cascade Laser (Desktop Light Source)

    7.4um low-power benchtop DFB-QCL mid-infrared quantum cascade laser is a domestically advanced ultra-low-power QCL DFB laser developed by Idealphotonics in the first half of 2018.Our laser collimated output has stable output power and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers. It provides an excellent test light source for our mid-infrared test customers.

    Product features：Low power consumption, high power、 Narrow line width、 Compact structure、 Software intelligent control、 Built-in FPGA

    Part Number：MP-QCL-7400-DFB-10-B

    Application area：TDLAS CO high-precision trace analysis | Mid-infrared test light source | Mid-infrared device analysis

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Peak wavelength Spectral width Output power Laser type

    7.4um 3MHz 10mW /

  • Dimension Drawing
    • General Parameters

    Parameter

    Parameter

    Unit

    Indicators



    Min.

    Typical value

    Max.

    Output power 1

    mW


    10


    Peak operating wavelength 2

    um


    7.4


    Spectral width (FWHM)

    MHZ


    1


    Output side mode suppression ratio (SMSR)

    dB

    20



    Output isolation 3



    30


    Wavelength temperature coefficient

    Mrad


    0.6


    Wavelength current coefficient

    mm


    0.2


    Output power stability (8 hours) 4

    nm/A


    ±1

    ±4

    Output power adjustable range

    %

    0


    100

    TEC operating range

    ℃

    0


    50

    Operating voltage

    VAC

    100

    220

    240

    Operating temperature

    ℃

    0

    -

    55

    Storage temperature

    ℃

    -20

    -

    65

    Specifications and dimensions

    mm

    290(L)×108(W)×68(H) mm



    Technical indicators:

    1. Output power is optional;

    2. Peak operating wavelength can be specified;

    3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

    4. Maximum power consumption refers to the overall power consumption under extreme working conditions.









    Measured spectrum





    Wavelength temperature tuning curve

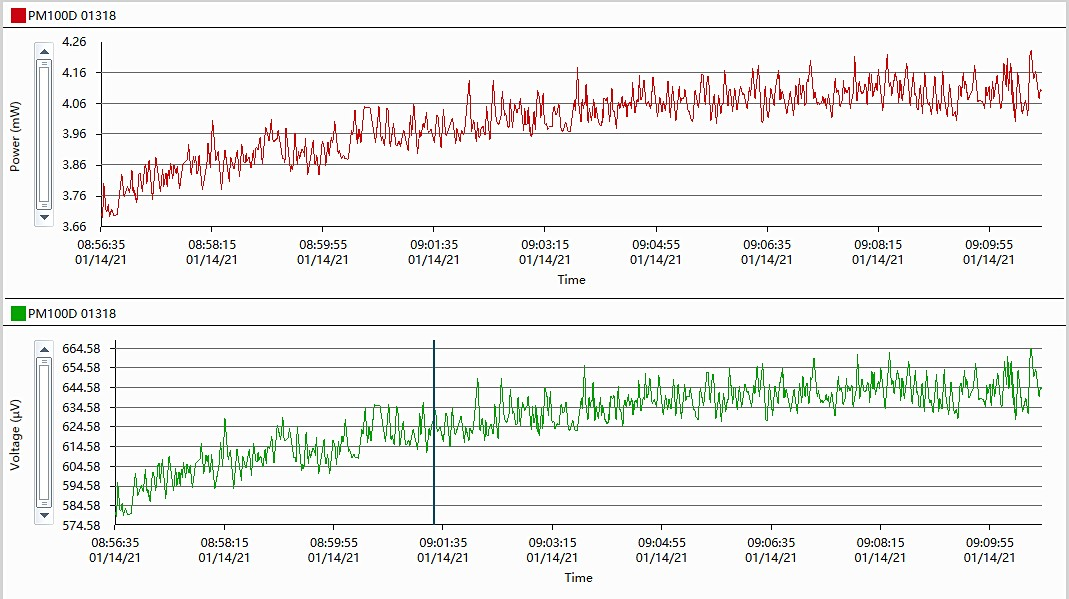

    Power stability






    QCL laser characteristic curve (taking 7.4um typical wavelength as an example)

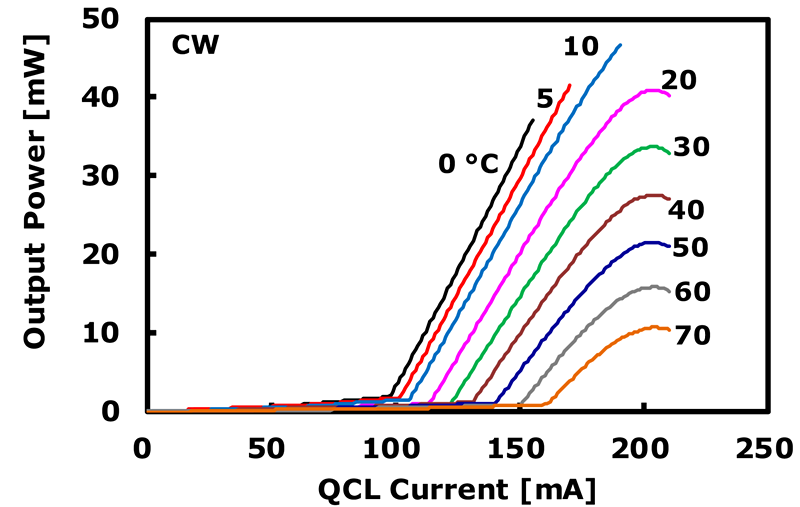

    Output power characteristic curve:

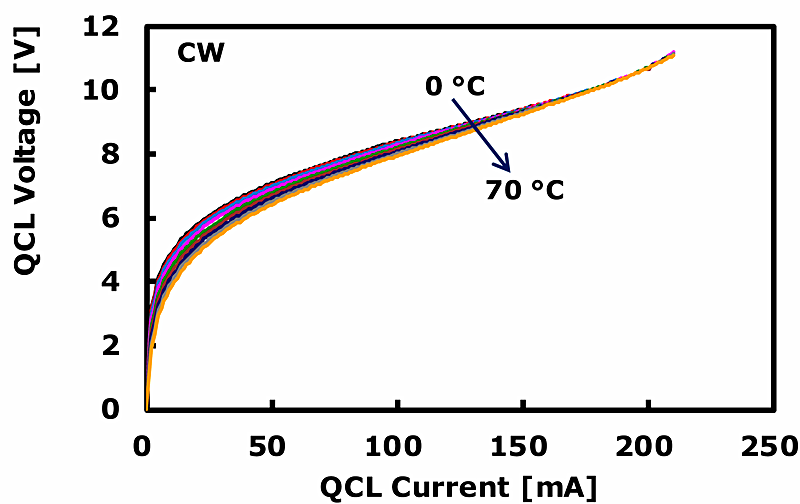

    Voltage characteristic curve

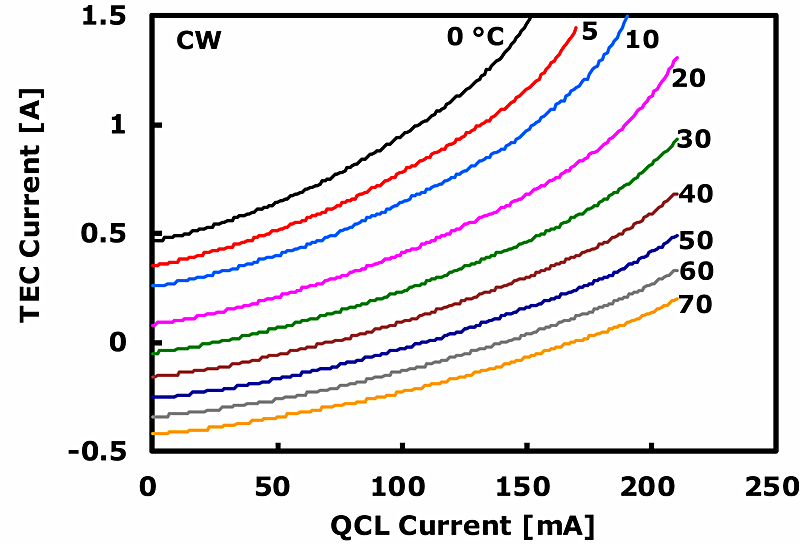

    TEC current characteristic curve

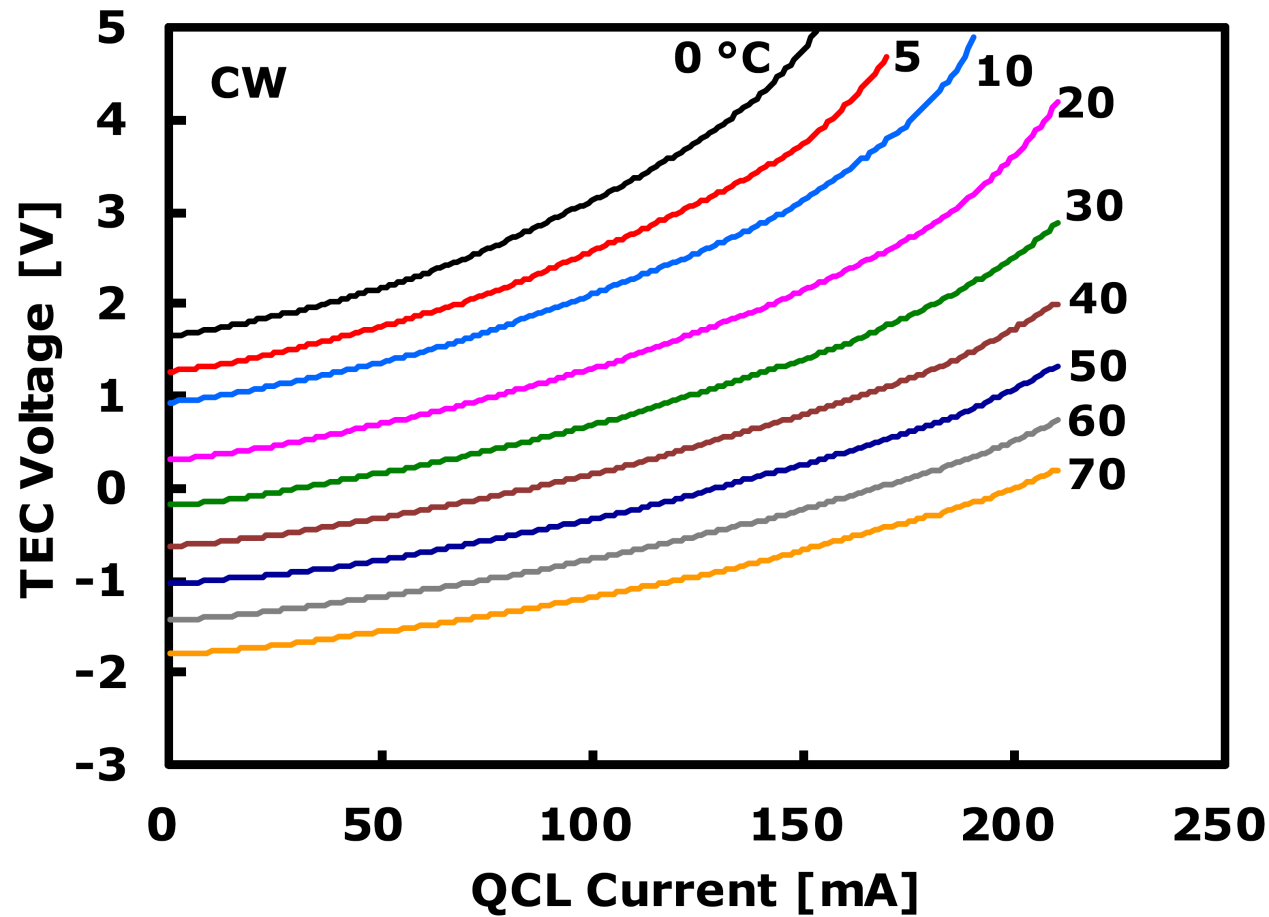

     TEC voltage characteristic curve

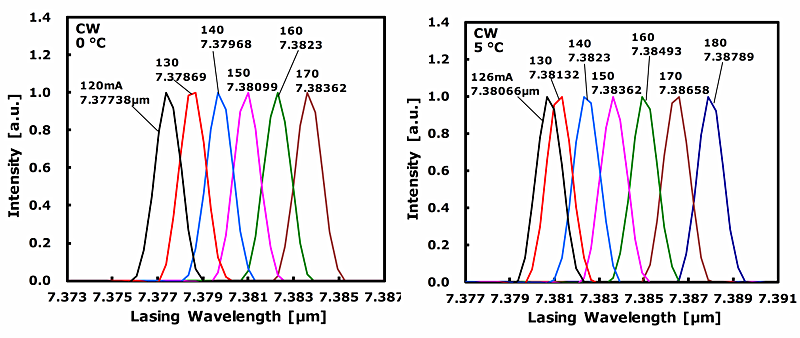

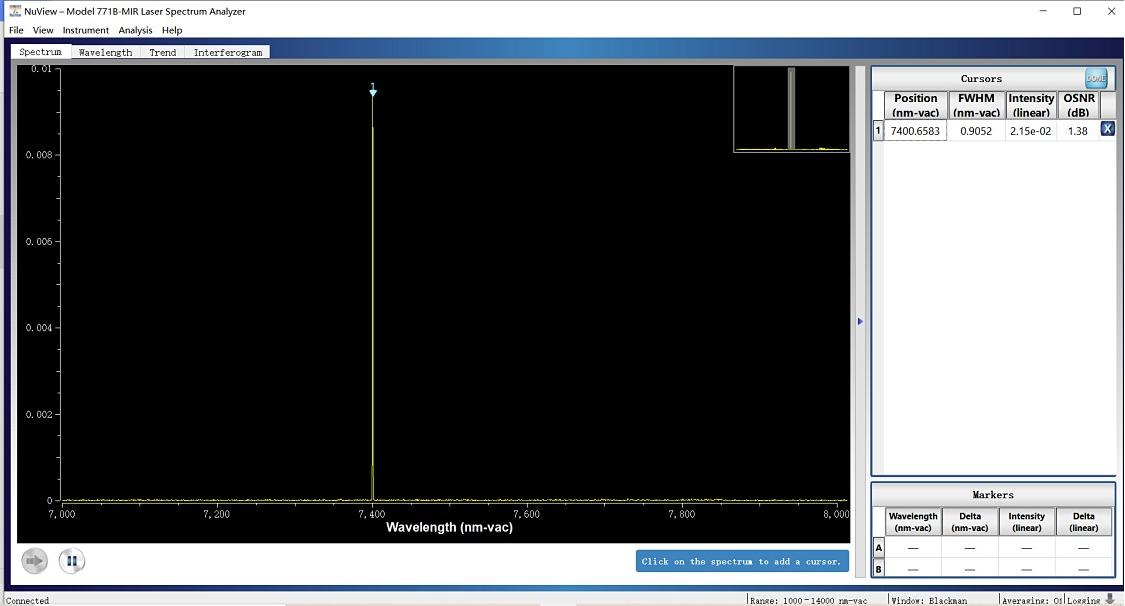

    Laser spectrum (CW)

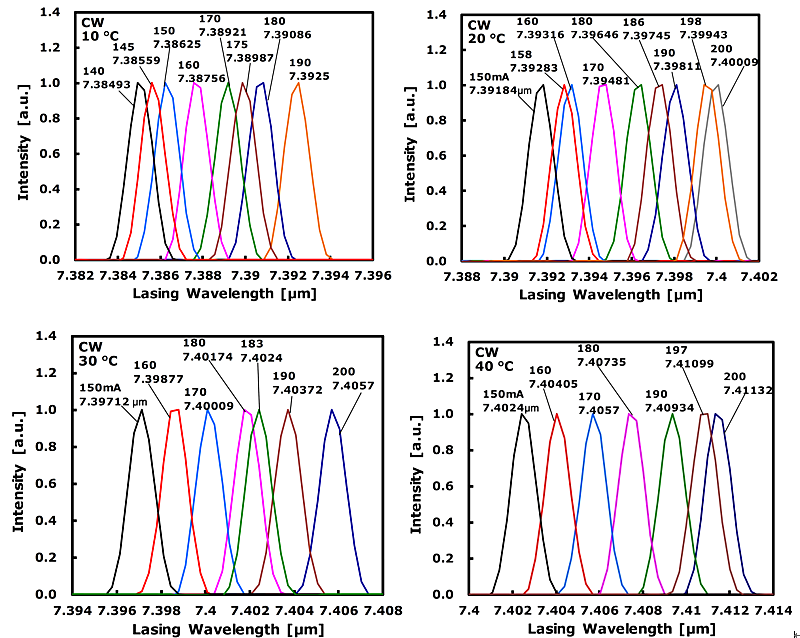

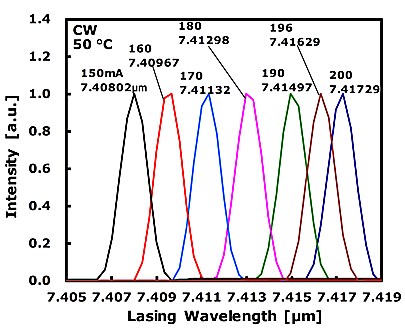

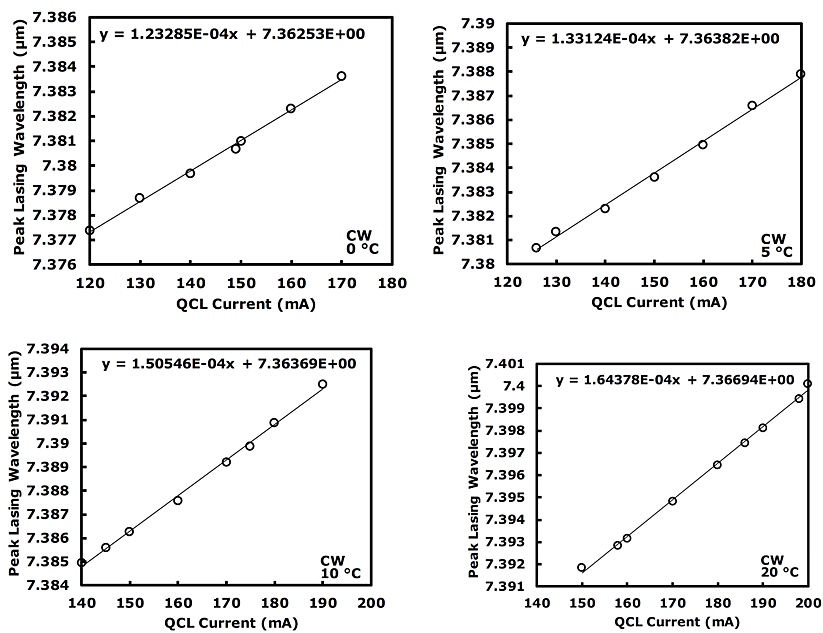

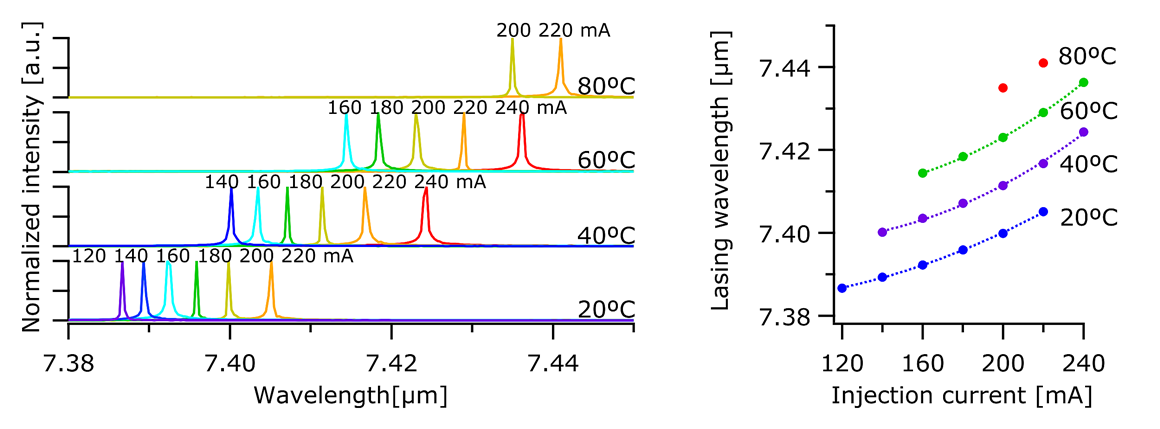

    Wavelength temperature current tuning curve

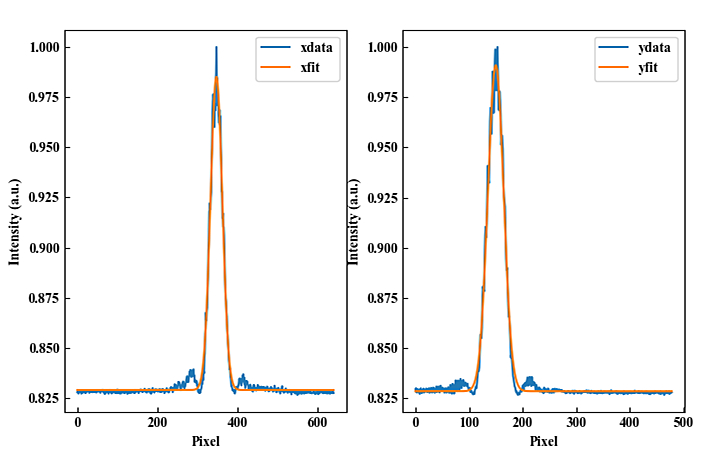

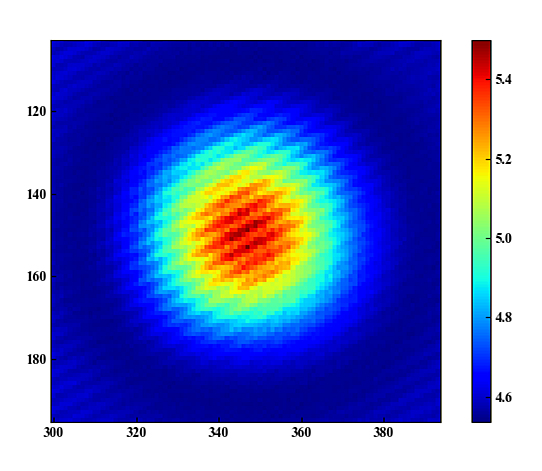

    Quantum cascade laser output spot








    The pixel size of the test camera is 5 μm, and the Gaussian fitting spot diameter is 320 μm.

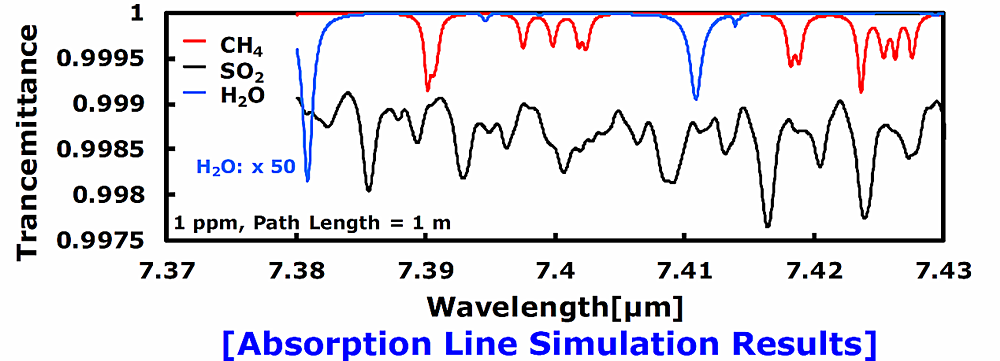

    Simulation results of absorption spectral lines near 7.4um

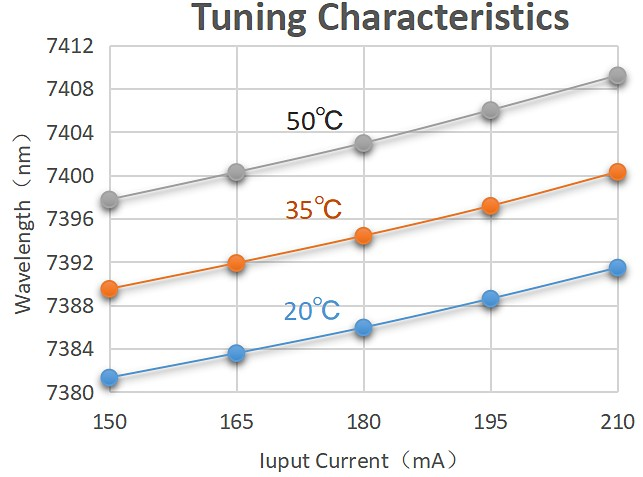

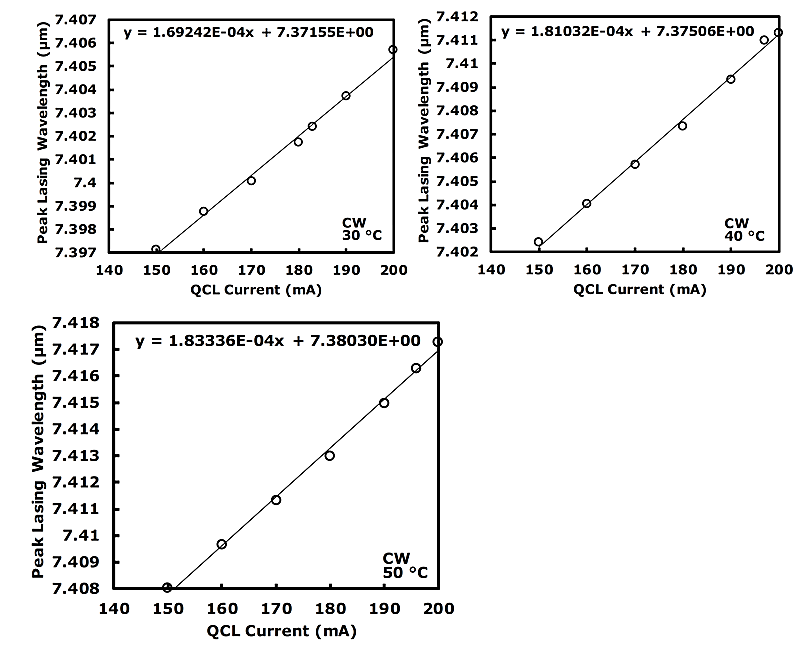

    The relationship curve between peak wavelength and current









    Control software

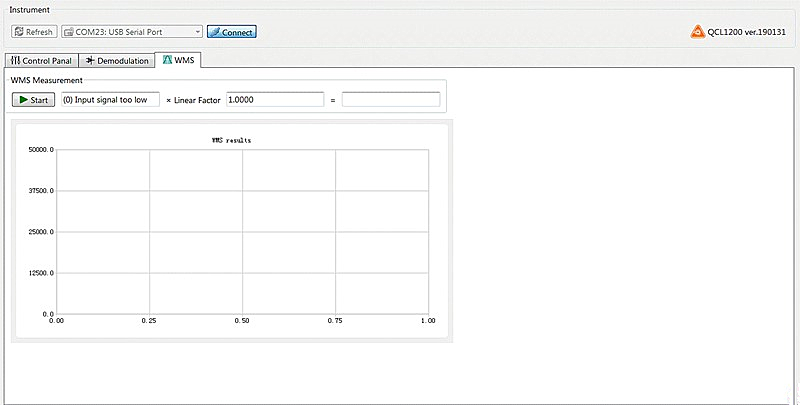

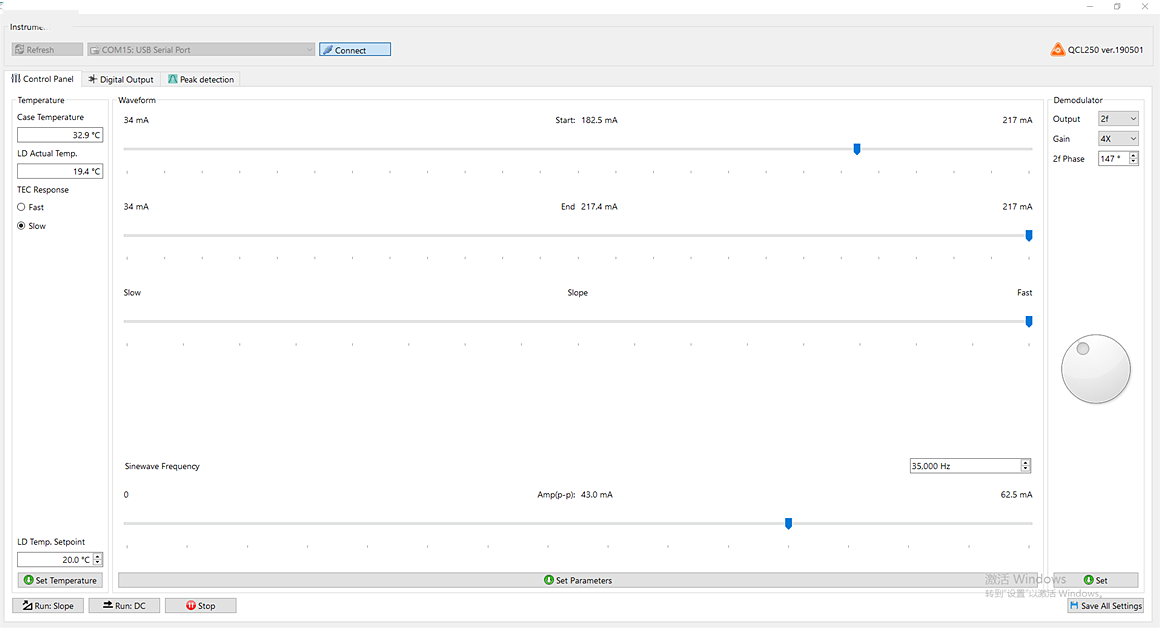

    2F signal acquisition interface:





    Algorithm calibration interface:

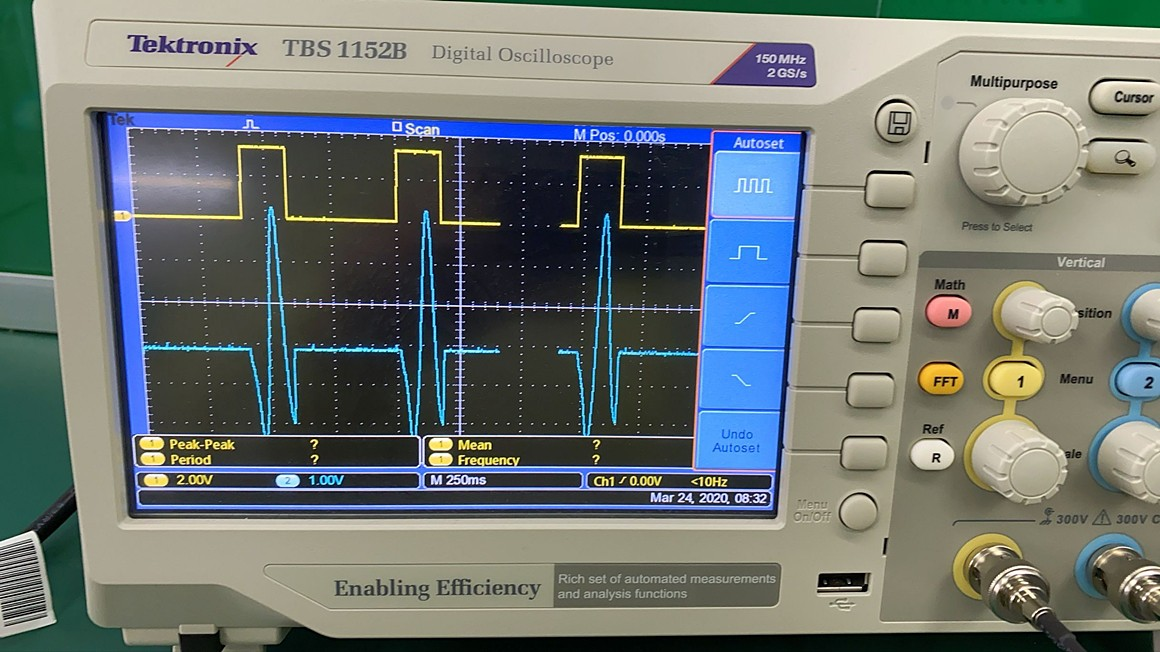

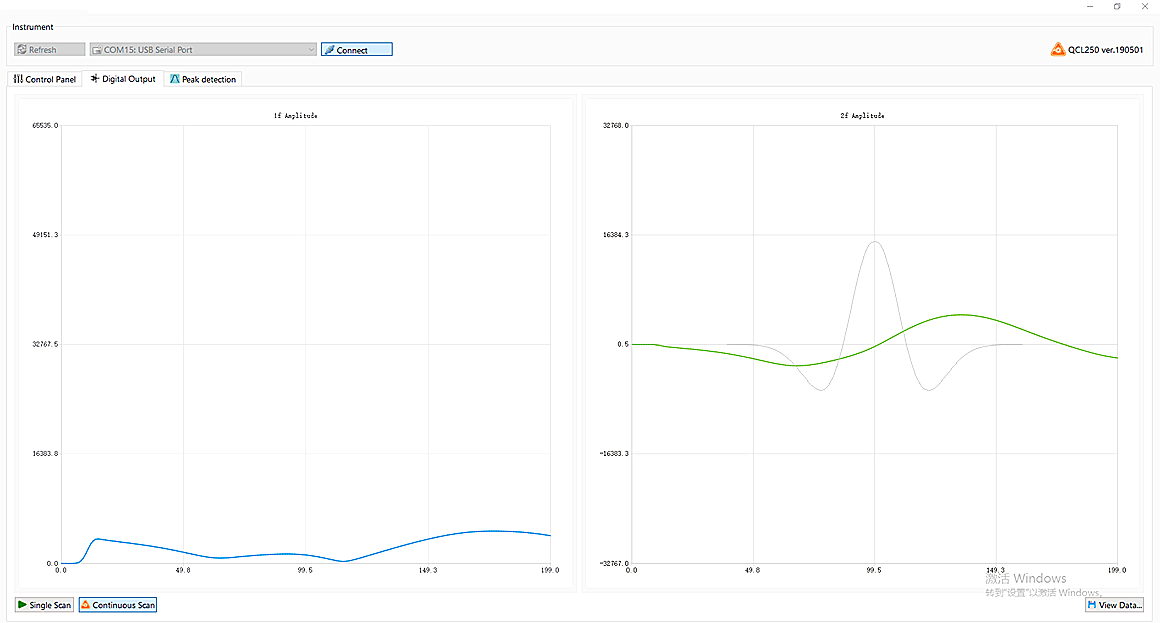

    Modulation signal linearity test (oscilloscope voltage signal effect diagram):




    Ordering Information



    MP-QCL- W□□□□ -☆-△-XX



    W□□□□: Wavelength



    5260: 5260nm



    5184: 5184nm



    7160: 7160nm



    7400: 7400nm



    10530: 10530nm



     ☆: collimated output



    1: with



    0: without



    △: laser type



    FP: QCL-FP



    DFB: QCL-DFB



    XX: output power


    Optional Configurations

    --
