Home/ Products/ Optical Imaging/ Camera/ CMOS camera/ 65000 fps Ultra-High-Speed Camera/ 65000 fps Ultra-High-Speed Camera

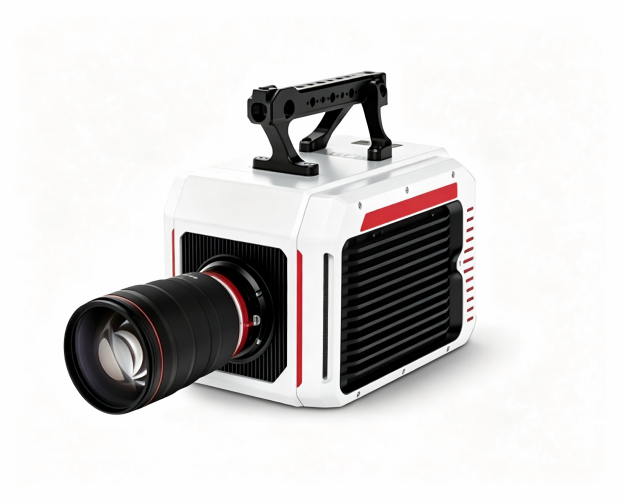

    • 65000 fps Ultra-High-Speed Camera

    The MP-HSC-65000 ultra-high-speed camera is a high-performance imaging device developed for scientific research, advanced industrial inspection, and high-speed motion analysis. Equipped with a 28 μm back-illuminated (BSI) CMOS image sensor, it delivers up to 65,000 fps at full resolution (1280 × 1024), combining high sensitivity, wide dynamic range, and ultra-short exposure capability to accurately record microsecond-scale transient events. The camera features 512 GB of onboard high-speed memory, supports 10-gigabit Ethernet data transfer, and offers a rich set of interfaces including HDMI, SDI, TTL synchronization, and IRIG-B time synchronization. It is widely used in applications such as explosion and impact testing, combustion research, PIV (Particle Image Velocimetry), DIC (Digital Image Correlation), high-speed mechanical motion analysis, automotive crash testing, battery thermal runaway studies, and material fracture analysis.

    Product features：Ultra‑high frame rate;High‑sensitivity back‑illuminated sensor;Peak quantum efficiency: 88%;Minimum exposure time: 500 ns;Ultra‑short PIV inter‑frame time;Broad spectral response;High dynamic range;Large‑capacity high‑speed memory;Rich data interfaces

    Part Number：MP-HSC-65000

    Application area：Explosion and impact experiments | Combustion and discharge research | Flow field diagnostics (PIV) | Material and structural testing (DIC) | Automotive and battery testing | High‑speed mechanical motion analysis | Aerospace and defense research

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Spectral Range Maximum Frame Rate Minimum Exposure Time

    350 nm – 1100 nm 65000fps 500ns

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Image Sensor

    BSI CMOS

    Resolution

    1280×1024

    Maximum Frame Rate

    65000fps

    Pixel Size

    28μm

    Minimum Exposure Time

    500ns

    PIV Inter‑Frame Time

    240ns

    Auto Exposure

    Supported

    Extreme Dynamic Range

    Supported

    Data Interface

    10 Gigabit Ethernet (compatible with Gigabit Ethernet)

    Spectral Range

    350 nm – 1100 nm

    Peak Quantum Efficiency

    88% QE

    Dynamic Range

    59.8 dB

    Video Interfaces

    SDI × 2 (one FPGA, one ARM), HDMI × 1 (ARM)

    Sync Input

    Compatible with 3.3/5 V TTL

    Sync Output

    5V TTL

    Time Synchronization Input

    Supports DC IRIG‑B input

    Control Interface

    RS422 (reserved)

    Trigger Input

    Pulse trigger signal

    Lens Mount

    Standard: EF (with motorized control), Optional: F‑mount

    High‑Speed RAM Storage

    512 GB

    Dimensions

    ≤ 175 × 183 × 260 mm

    Weight

    11 kg

    Operating Temperature

    -10 ~ 50 °C

    Extended Temperature (Custom)

    -35 ~ 60 °C

    Operating Humidity

    0 ~ 95%

    Shock Resistance

    GJB150.18A, 30 G, 11 ms terminal‑peak sawtooth wave, ±10 shocks per axis

    Vibration Resistance

    GJB150.16A, general low‑limit integrity vibration and test environment, 7.5 Grms, 15 min per axis

    EMC

    EMI: Complies with CE EN 55032, Class A

    EMS: Complies with CE EN 55035, Class B


    Optional Configurations

    --
