    • 850 nm 20 mW Coaxial SingleMode FiberCoupled Laser

    The MP-FCD-808-30-SA series coaxial single‑mode fiber‑coupled laser is a low‑cost single‑mode fiber‑coupled laser launched by. It features a compact package size and high output power. Our products are widely used in laser communications, printing, and laser medical applications.

    Product features：Coaxial integrated design; single-mode fiber output; high beam quality; intelligent temperature control; multiple modulation interfaces

    Part Number：MP-FCD-850-20-SA

    Application area：Medical field | Printing | Fiber lasers

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength

    850nm

  • Dimension Drawing
    • General Parameters

    Detailed Parameters



    Parameter

    Value

    Center wavelength (nm)

    850 ± 5 nm

    CW output power (mW)

    > 30 mW

    Spectral width

    0.5 – 2 nm

    Fiber core diameter

    6 µm

    Numerical aperture (NA)

    0.12

    Fiber length

    0.8 m

    Connector

    FC/APC

    Operating voltage

    1.8 – 2.3 V

    Threshold current

    35 mA

    Max. operating

    140 mA

    Monitor current

    0.5 mA

    Differential efficiency

    0.9mW/mA

    PD reverse voltage

    30V

    Package type

    Coaxial package

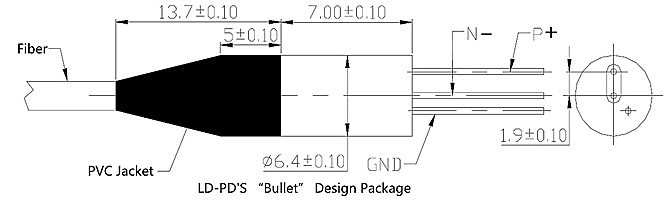

    Package Dimensions and Pin Definitions





    Parameter

    Symbol

    Unit

    Min

    Typ

    Max

    Test Condition

    Case temperature

    T

    °C

    -5

    25

    70

    —

    Forward voltage

    VR

    V

    1.8

    2.0

    2.3

    —

    Axial pull force

    —

    N

    —

    —

    5

    3×10 s

    Side pull force

    —

    N

    —

    —

    2.5

    3×10 s

    Fiber bend radius

    —

    mm

    —

    16

    —

    —

    Reverse voltage (LD)

    VLD

    V

    —

    —

    2

    HBM

    Soldering time

    —

    s

    —

    —

    10

    260 °C

    Storage temperature

    TSTG

    °C

    -40

    —

    +85

    2000 hr

    Operating temperature

    —

    °C

    -55

    —

    +125

    —

    Relative humidity

    RH

    %

    5

    —

    95

    Non‑condensing

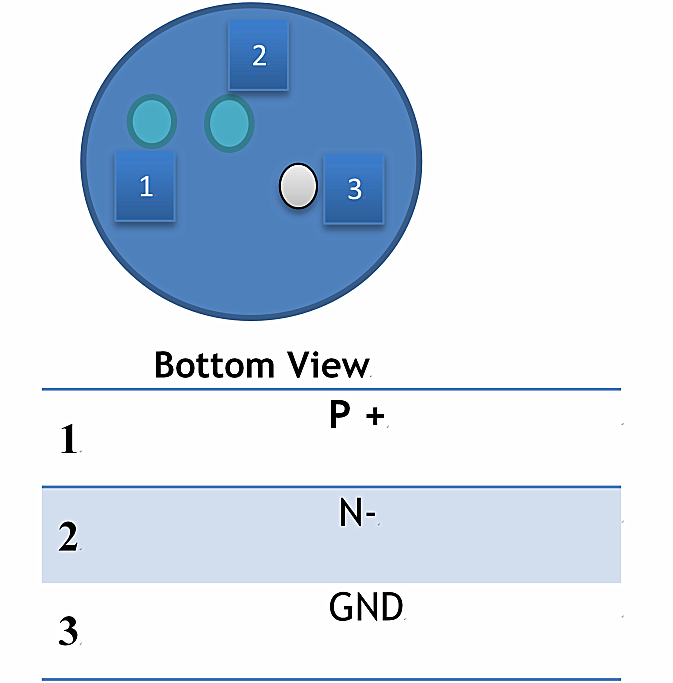

    Package Dimensions and Pin Definitions

    1.Avoid direct eye and skin exposure to the laser beam during operation. Even very weak laser light, when focused by the eye, can cause serious injury.

    2.Use a stable drive power supply. Avoid surge currents. Instantaneous reverse current and reverse voltage must not exceed the absolute maximum ratings, otherwise the device will be damaged.

    3.Semiconductor lasers are temperature‑sensitive. Operation at high temperatures reduces conversion efficiency and accelerates aging. Ensure adequate heat dissipation or cooling.

    4.Operate the laser within rated current and power. Exceeding the rated output power will accelerate aging of the components.

    5.The laser is an electrostatic‑sensitive device. Anti‑static measures must be taken during transportation, storage, and use.

    6.Store and operate the laser in a dry, well‑ventilated environment to prevent condensation, which can damage the device.

    7.The emitting facet (cavity facet) is a critical part of the laser. Avoid any operation that may damage the facet. Ensure the chip is not contaminated and protect it from mechanical damage.

    8.Do not bend the fiber at sharp angles. The bending diameter must be greater than 300 times the fiber diameter.
