TO-39 Packaged Deep Ultraviolet (UVC) LED

TO-39 Packaged Deep Ultraviolet (UVC) LED

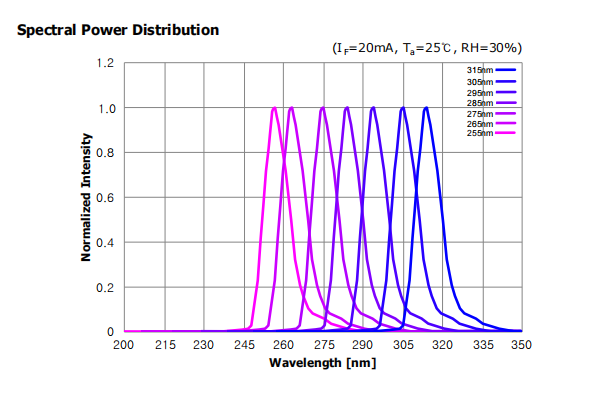

The MP-UVC-255 is a deep ultraviolet LED housed in a TO-39 metal package, offering high reliability, high stability, and excellent UV output performance. It covers multiple peak wavelengths from 255 nm to 315 nm, making it suitable for a wide range of applications including medical testing, biological analysis, air purification, water treatment, and industrial inspection.

Product features：TO‑39 metal package;Multiple deep‑UV wavelengths available from 255 nm to 315 nm;Typical radiant power: 1.5 mW;Narrow spectral output;FWHM approximately 11 nm;Small beam divergence angle (7.5°);High reliability;High reliability;RoHS compliant

Part Number：MP-UVC-255

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Forward Current IF FWHM

20mA 11nm

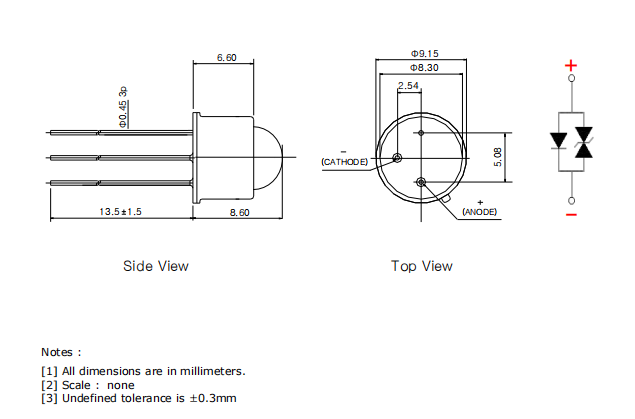

Dimension Drawing

General Parameters

Optical and Electrical Parameters

Parameter	Condition	Min.	Typ.	Max.
Forward Current IF	—	—	20mA	—
Forward Voltage VF	20 × 20 × 65 mm	4.8V	—	7.0V
Radiant Power Φe	1.5 ± 0.2 mm	0.5mW	1.5mW	3.0mW
Peak Wavelength λp	＜2–4 λ / 10 mm（PV）	See model designation
FWHM Δλ	Uncoated	—	11nm	—

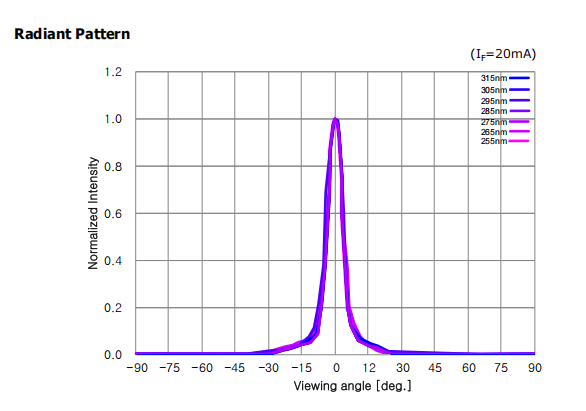

Half‑Intensity Beam Angle 2θ1/2	Borofloat-33	—	7.5°	—

Absolute Maximum Ratings

Parameter	Value
Maximum Forward Current	60mA
Maximum Power Dissipation	380mW
Operating Temperature	-15℃ ~ +60℃
Storage Temperature	-40℃ ~ +85℃
Soldering Temperature	260℃（≤3s）
ESD Rating	Class 1

Mechanical Dimensions

Parameter	Value
Outer Diameter	Φ9.15mm
Body Diameter	Φ8.30mm
Number of Pins	3 Pin
Pin Diameter	Φ0.45mm
Pin Pitch	2.54mm
Diagonal Pitch	5.08mm
Body Length	8.60mm
Pin Length	13.5±1.5mm
