1064nm 10mW Benchtop DFB Laser Source with Software Control

1064nm 10mW Benchtop DFB Laser Source with Software Control

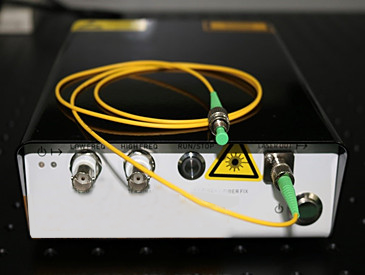

The desktop DFB light source with software control features a control system based on an advanced microprocessor. Combined with high-precision ATC and ACC (APC) control circuits, it achieves highly stable laser output while ensuring quick and intuitive control of the light source. We can also provide corresponding communication interfaces and control software according to user requirements, enabling computer control. This light source features a one-button recovery function (Run/Stop button), which can effectively help customers return to their previous working state.

Product features：High-precision wavelength control；Intelligent software control；Multi-function modulation；Modular design；Research-grade performance

Part Number：MP-DFB-1064-10-A81-14BF-PA-B

Application area：Fiber optic communication R&D | Fiber optic sensing systems | Gas detection experiments | Quantum optics laboratory light sources | Industrial inspection

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power Linewidth

1030 nm 10mW 1 MHz

Dimension Drawing

General Parameters

l Technical Parameters

Parameter	Min	Max	Unit	Notes
Supply Voltage	100	240	VAC
Power Consumption	5	15	W
Modulation Low Frequency	20	1000	kHz
Modulation High Frequency	100	1000	MHz
Output Power	10	50	mW
Linewidth	1	3	MHz
Center Wavelength	1064±0.5		nm
Output Fiber Type		HI1060/PM980
Laser Drive Current	0	225	mA
Laser Drive Voltage	2.5	V	@80mA
NTC	9.7	10.3	Kohm	@25℃
TEC Current	-1	1	A
Temperature Control Range	0	50	℃
Analog Input (peak-to-peak)	0	5	V	AC coupled
Analog Output	0	2.5	V
Dimensions	22.5×15.0×6.5		cm³
Fiber Connector	FC/APC
