Home/ Products/ Light Sources/ Coherent Sources/ Fiber coupled laser source/ 1570 nm 1–10 W Single-Mode Fiber-Coupled Laser, Bench-Top/Module/ 1570nm 10 dBm wavelength single mode fiber coupled laser

    • 1570nm 10 dBm wavelength single mode fiber coupled laser

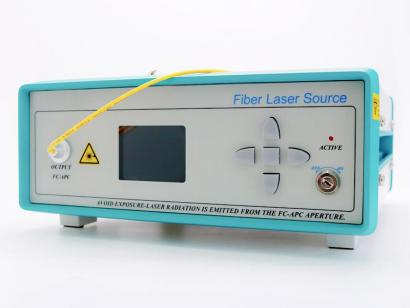

    The 1570nm single-wavelength laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, stable output power, and spectrum. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers and can be provided in desktop or modular packages.

    Product features：1~10W multiple powers；single-mode fiber output；multiple spectrum options

    Part Number：MP-FCL-1570-100-SA-B

    Application area：Thulium-doped fiber laser；Fiber laser；Fiber sensor

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Operating wavelength Output power Pigtail connector type

    1570nm 10 dBm FC/APC

  • Dimension Drawing
    • General Parameters

    Parameter



    Parameter

    Unit

    Typical

    Notes

    Operating wavelength

    nm

    1570±1


    Spectral linewidth

    nm

    < 0.1


    Side mode suppression ratio

    dB

    >50


    Operating mode

    -

    CW

    Continuous light

    Output power

    dBm

    10/20/30/33/37/40


    Short-term stability (15 minutes)

    dB

    ≤  ±0.02

    Equivalent≤±0.5%

    Long-term stability (8 hours)

    dB

    ≤  ±0.05

    Equivalent≤±1.2%





    Parameter

    Unit

    Typical

    Notes

    Pigtail type

    -

    SMF-28 fiber


    Pigtail connector type

    -

    FC/APC





    Electrical and environmental

    parameters



    Benchtop



    Module



    Control mode



    Button

    RS232 Serial

    communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC,<150W

    5V DC, <60W



    Dimensions

    260(W)×320(D)× 120(H)mm

    125(W)×150(D)× 20(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%





    Ordering information / PN#

    F

    L

    Operating

    wavelength (nm)

    Output

    power (dBm)

    Output pigtail type



    Package method






    1570



    10/20/30/33/

    37/40



    SM= SMF-28

    PM=PM1550

    B=Benchtop M=Module

    *33~40dBmJust provide

    benchtop








    Optional Configurations

    --
