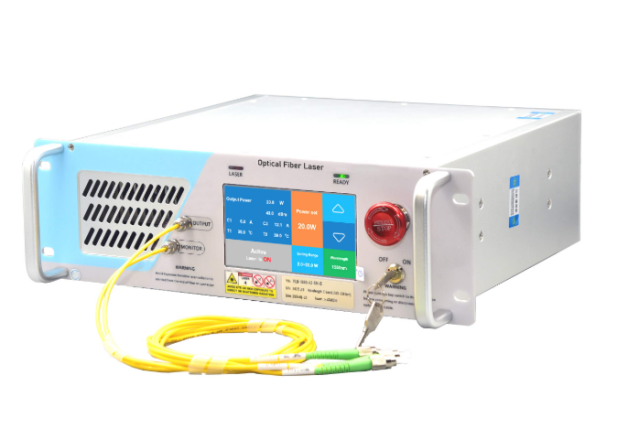

    • 1940nm High Power Benchtop Single-Mode Fiber-Coupled Light Source

    The 1940nm single-wavelength laser source utilizes a high-performance butterfly semiconductor laser chip. Professionally designed driver and temperature control circuits ensure safe laser operation with stable output power and spectrum. It can be used as a seed light source for thulium-doped fiber lasers or fiber amplifiers, and is available in benchtop or modular packages.

    Product features：High power output; Single-mode fiber coupling; Wavelength stability; High side-mode suppression ratio; Integrated temperature control and drive circuits

    Part Number：MP-FCL-1940-100-XA-B

    Application area：Thulium-doped fiber laser pumping | Optical component testing | Optical frequency doubling research | Mid-infrared laser systems | Scientific research experiments

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Working Wavelength Output Power

    1940nm 20dBm

  • Dimension Drawing
    • General Parameters

    Detailed Parameter

    Parameter

    Unit

    Typical Value

    Note

    Operating Wavelength

    nm

    1940；2009


    Wavelength Accuracy

    nm

    ±5


    Spectral Linewidth

    nm

    < 0.1


    SMSR

    dB

    ≥50


    Operating Mode

    -

    CW

    Continuous wave

    Output Power

    dBm

    7/20/30/33/37/40

    *33~40dBmavailable in benchtop only

    Short-term Stability (15 min)

    dB

    ≤   ±0.02

    Equivalent to ≤±0.5%

    Long-term Stability (8 hours)

    dB

    ≤   ±0.05

    Equivalent to ≤±1.2%

    Polarization State

    -

    Random

    Linear


    Polarization Extinction Ratio

    dB

    -

    >23


    Fiber Type

    -

    SM1950

    PM1950


    Fiber Connector


    FC/APC

    FC/APC(slow axis aligned）

    *Connector used for power testing

    Electrical and Environmental Specifications

    Benchtop

    Module


    Control Method

    Touch screen / RS232 serial communication

    RS232 serial communication


    Communication Interface

    DB9 Female

    DB9 Female


    Power Supply

    AC 100~240V，50W

    DC 12V,<60W


    Optical Power (dBm)

    7/20/30

    33/37/40

    7/20/30


    Dimension Code

    B2

    B3

    M70


    Operating Temperature/Humidity Range

    -5~+35°C；0~70%

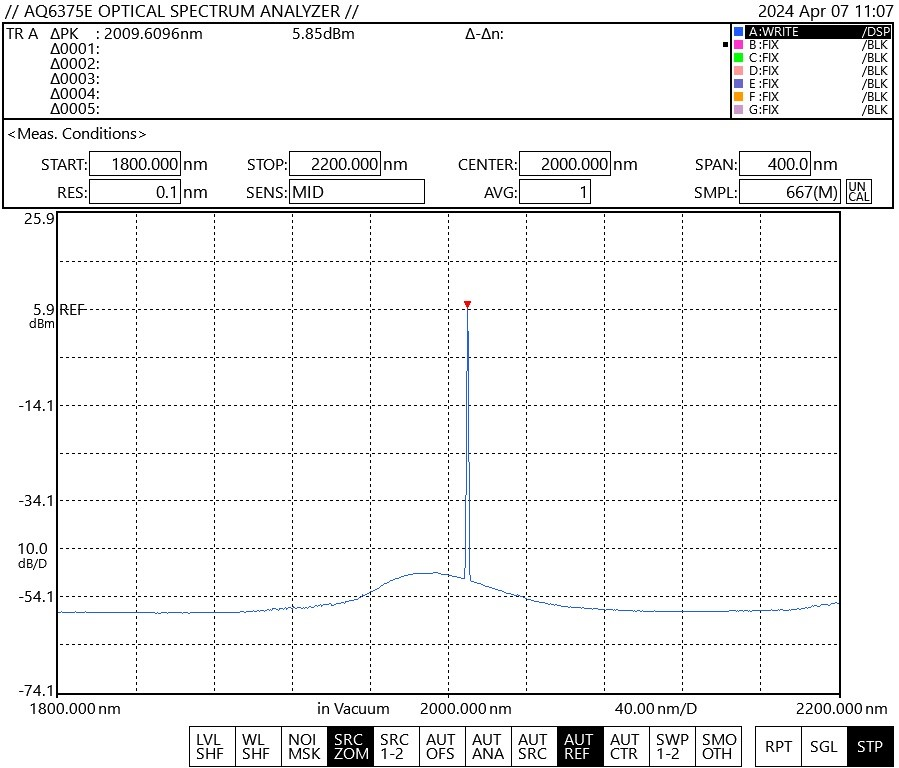

    Characteristic Curve





    Optional Configurations

    无

    Downloads

    No resources available
