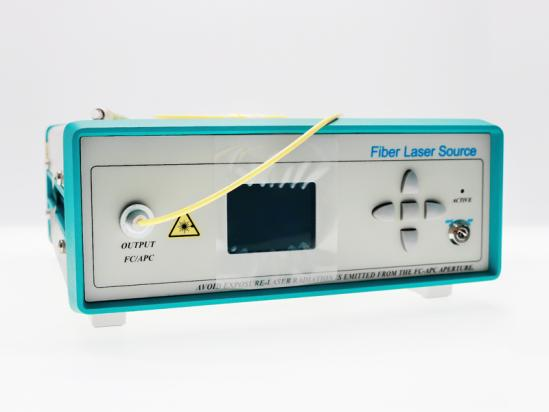

    • 808nm High Power benchtop Multimode Pump Laser 5W

    High-power laser light source is based on high-performance semiconductor laser chip,105/125um fiber coupled output. Professionally designed constant current driver and temperature control circuit ensures safe and stable operation of the laser. Some models have wavelength locking, and the spectrum stability can be better than ±3nm. It is suitable for medical research, fiber laser pumping and other production tests. It can provide benchtop or modular packaging, and provide host computer monitoring software

    Product features：High output power; Power and spectrum stability; Module or benchtop package

    Part Number：MP-FP-808-5-MM-B

    Application area：Fiber laser pumping | Biomedical | Material laser processing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Output Power Spectral Width

    808nm 5W Benchtop

  • Dimension Drawing
    • General Parameters


    Optical Specifications

    Parameter

    Unit

    Typical Value

    Note

    Operating Wavelength

    nm

    793/808/976

    915


    Wavelength Accuracy

    nm

    ±3

    ±10


    Spectral Width

    nm

    3

    6


    Operating Mode

    -

    CW

    Continous Wave

    Output Power

    W

    5、10、25

    Customizable

    Short-term Stability(15min)

    dB

    ≤ ±0.02

    Equivalent to≤±0.5%

    Long-term Stability(8 hours)

    dB

    ≤ ±0.05

    Equivalent to≤±1.2%

    Pigtail Fiber Type

    -

    105/125μm multimode fiber，NA= 0.22


    Pigtail Connector Type

    -

    Bare Fiber

    Optional fiber collimator



    Electrical and Environmental Specifications

    Parameter

    Benchtop

    Module

    Control Method

    Push-button

    RS232 serial communication

    Communication Interface

    Optional

    DB9 Female

    Power Supply

    100~240V AC, <120W

    12V DC, <60W

    Dimensions

    260(W)×320(D)×120(H) mm

    125(W)×150(D)×30(H) mm

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%



    Product Characteristics





    Optional Configurations

    --
