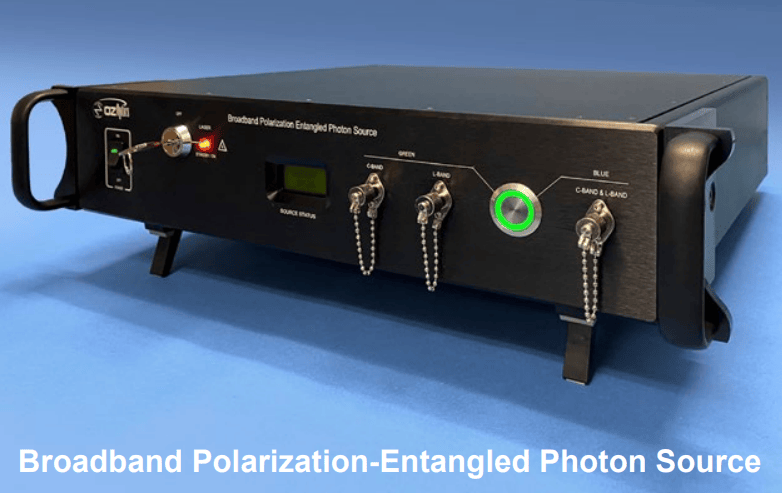

1566nm All-Fiber Broadband Polarization-Entangled Photon Source

1566nm All-Fiber Broadband Polarization-Entangled Photon Source

We have developed a series of polarization-entangled photon sources to support the growing field of quantum information science. These sources are room-temperature nonlinear optical photon-pair sources based on polarization crystal technology and polarization fiber technology, supporting all common phase-matching schemes. They are available in OEM, benchtop, and rack-mount configurations, covering a broad wavelength range from near-infrared to short-wave infrared. Each source can be further customized to meet niche applications.

Product features：All-fiber structure; Broadband entanglement; High brightness output; Low noise design; Intelligent calibration

Part Number：MP-EPS-1000-3A3A3A-1566-9/125-S

Application area：Quantum communication | Quantum computing | Precision measurement | Quantum imaging | Fundamental research

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Wavelength Accuracy

1566nm 2nm

Dimension Drawing

General Parameters

General Specifications

Parameter Table

Parameter		Max.	Typical	Mln.	Unit
Signal/Idler degeneracy wavelength^*2		1580	1566 ±2	1530	nm
Signal/Idler degeneracy wavelength accuracy		-	±2	-	nm
Biphoton bandwidth (3 dB)^*3		>120	80	60	nm
Signal/Idler sum frequency bandwidth (3 dB)		0.4	0.2	0.1	nm
Pair-generation rate		4x10⁶	2x10⁶	1x10⁶	Pairs/second

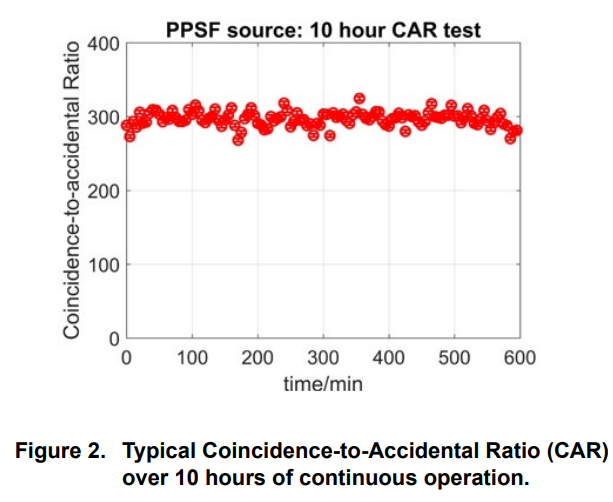

Coincidence-to-accidental ratio^*4		-	1000	100

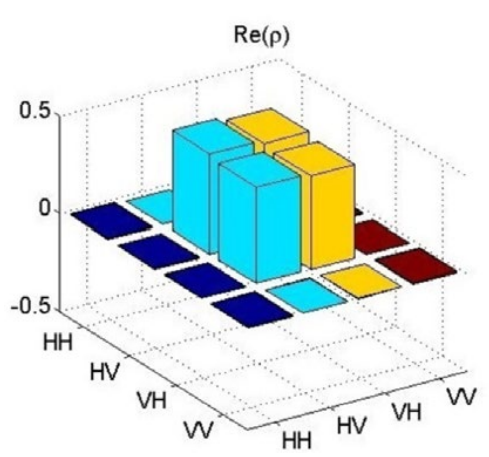

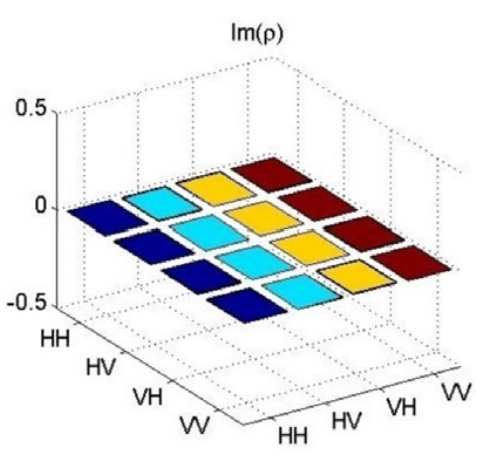

Fidelity^*5 to Ψ=(\|HV⟩+\|VH⟩)/ √2		99.5%^*6	98%	97%
Two-photon interference visibility^*7		99.5%^*6	98%	97%
Physical dimensions	W×D×H (cm)	39×34.4×8.6
Physical dimensions	Mass (kg)	~4

Notes:

*1 Under continuous wave (CW) operation.

*2 Degeneracy wavelength is typically conveniently set at the boundary between C-band and L-band. Degeneracy wavelength can be customized within the specified range.

*3 Before the signal and idler are separated by a wavelength division multiplexer.

*4 Coincidence counts measured over a 0.65 ns window, over each 16 nm signal/idler FWHM bandwidth, with free-running SPAD detector dark count ~5 kHz.

*5 Measured on conjugate signal/idler pairs with 1 nm FWHM bandwidth centered at degeneracy over 80 nm. Accidental coincidences are not subtracted.

*6 Limited by detector dark counts.

*7 Measured in HV basis and AD basis. Accidental coincidences are not subtracted.

Operating and Storage Conditions

Condition	Specification
Operating Temperature	15°C to 25°C
Operating Relative Humidity (%RH)	5% - 60%
Storage Temperature	-40°C to 40°C
Storage Relative Humidity (%RH)	0% - 90%

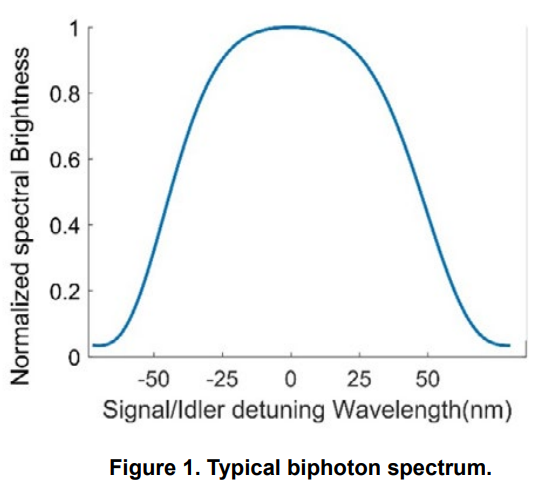

Characteristic Curves
