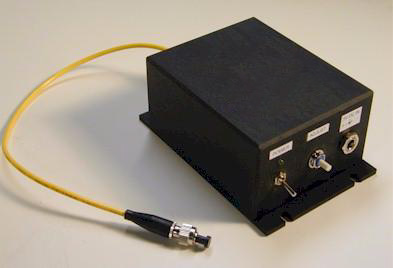

780nm 2mW 10nm Bandwidth Benchtop LED Light Source

780nm 2mW 10nm Bandwidth Benchtop LED Light Source

LED light sources feature a broad spectrum, high energy efficiency, long lifespan, compact design, and ease of operation, making them widely applicable in fields such as sensors, instruments, and biomedicine.

Product features：High energy efficiency; High stability; Low coherence; Compact modular design; Long lifetime

Part Number：MP-LEDS-780-2-10

Application area：Optical sensing | Bioimaging | Industrial inspection | Communication experiments | Instrument calibration

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Bandwidth Power

780nm 10nm 2mW

Dimension Drawing

General Parameters

Detailed Parameter

Parameter	Unit	Value
Center Wavelength	nm	365-970	1000-1650	1750-4600
Bandwidth	nm	10-50	50-150	150-900
Output Power	mW	~1-10	~1	~1
Connector		ST, FC, SMA
Fiber Type/Core Diameter	µm	MMF/core: 50, 62.5, 100, 200, 400, 800, 1000
Control Voltage*	mV	0-750
Control Input Impedance*	kΩ	20
Modulation Rise Time*	µs	0.3
Power Supply（Turn-key）		110-120 VAC/60 Hz, 220-240VAC/50Hz
Power Supply（OEM）		5VDC, 70 mA
OperatingTemperature	°C	10-40
Dimensions	mm	50 x 90 x 130
*Optional, available only for versions with a control signal.

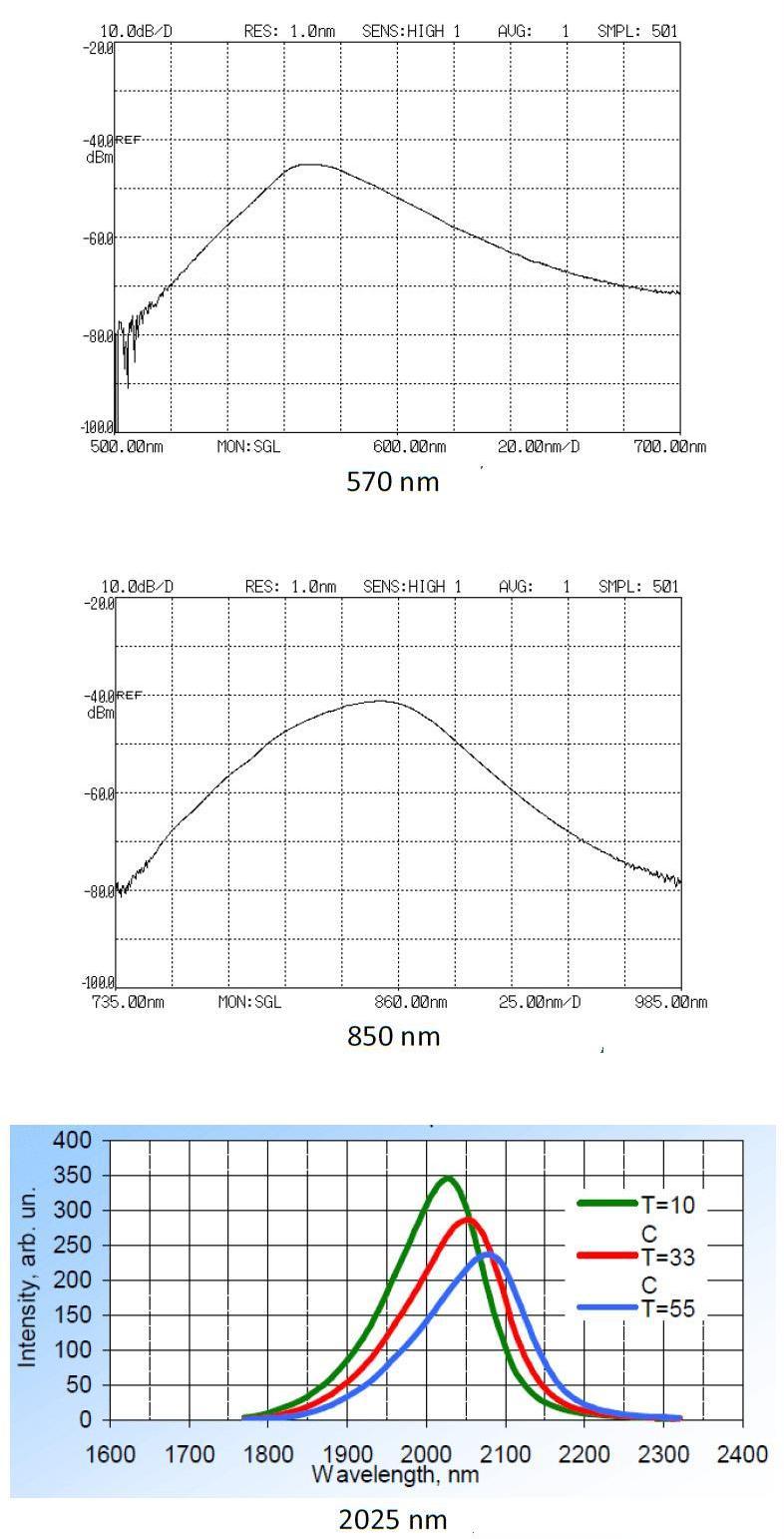

Characteristic Curves

Optional Configurations

Downloads

780nm 2mW 10nm Bandwidth Benchtop LED Light Source.pdf
