    • 930nm 15mW RCLED Resonant Cavity LED Diode

    Resonant Cavity Light Emitting Diode. The InGaAs/AlGaAs chip operates at wavelengths of 930nm, 960nm, 1170nm, 1240nm, and 1270nm.

    Product features：Narrow spectral output; Highly directional beam; Low power consumption, high efficiency; Long lifetime; Low-cost manufacturing

    Part Number：MP-RCLED-930-15

    Application area：Narrow spectral output; Highly directional beam; Low power consumption, high efficiency; Long lifetime; Low-cost manufacturing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    930nm 15mW

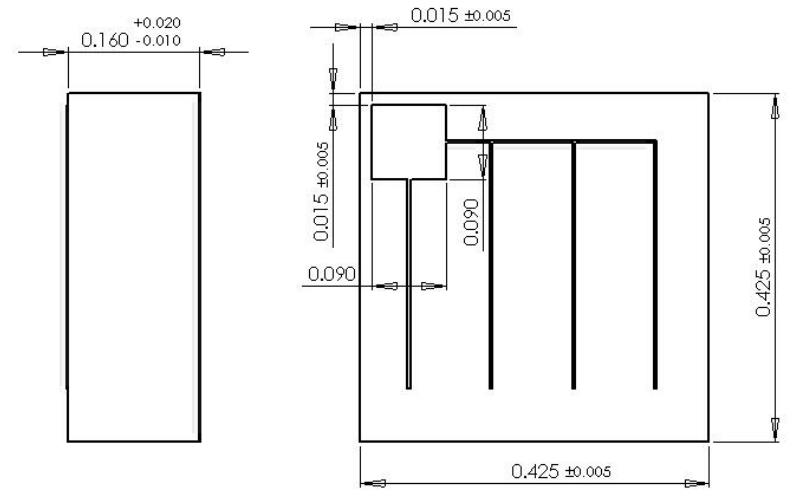

  • Dimension Drawing
    • General Parameters

    Model Specifications

    Test conditions: CW, operating temperature 25°C

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Operating Current

    Iop



    200

    mA

    Operating Voltage

    Vop


    1.5

    2.0

    V

    Reverse Voltage

    Vrev



    2.0

    V

    Optical Output Power@100mA

    Pout

    5

    6*


    mW

    Center Wavlength

    λC

    955

    960

    965

    nm

    FWHW of Spectrum

    Δλ

    30

    40

    50

    nm

    Operating Temperature Range

    Top

    15


    60

    ℃

    Chip Soldering Temperature (20sec)

    Tsol



    330

    ℃

    *Up to 15mW available upon request



    Design:

     P-side up; wire-bondable Au bond pad with current spreaders on top side; back-side full (100%) area metallization, Au finished, solderable




    Typical parameters of RCLEDs (Resonant Cavity Light Emitting Diodes)

    Part number

    Center Wavlength

    Output Power

    Bandwidth
    FWHM

    Operating Current

    nm

    mW

    nm

    mA

    MP-RCLED-930-15

    930

    15

    40

    100

    MP-RCLED-960-5

    960

    5*

    40

    100

    MP-RCLED-1170-10

    1170

    10

    40

    100

    MP-RCLED-1240-3

    1240

    3

    40

    100

    MP-RCLED-1270-3

    1270

    3

    40

    100

    *-15mW available upon request


    Optional Configurations

    --

    Downloads

    930nm 15mW RCLED Resonant Cavity LED Diode.pdf
