    • 2.83-2.90um MIR LED with Glass Cap

    Idealphptonics is pleased to announce new light-emitting diodes with a special glass cap, which increases the LED output optical power (up to 3-5 times). This allows for higher precision in various gas, liquid, and solid sensing and analysis applications. Along with other advantages (compact size, low power consumption, high modulation range), our LEDs become an even more impressive component basis for sensors and analyzers.

    Product features：Mid-infrared band; High optical efficiency; TO package; Fast response; Wide operating temperature

    Part Number：MP-LED-2830-0.3-TO18

    Application area：Moisture detection | Gas sensing | Medical diagnostics | Material analysis | Security monitoring

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Peak Emission Wavelength Operating Current

    2.83-2.90um 200mA/1000mA

  • Dimension Drawing
    • General Parameters


    LED models with glass cap

    Model

    Peak Emission Wavelength [um]

    min-max

    FWHM of Emission Band[nm]

    min-max

    Average Optical Power in qCW Mode [uW]

    Min/Typ

    Peak Optical Power in Pulse Mode2,3 [uW]

    Min/Typ

    Voltage1 [V]

    (200 mA)

    min-max

    Oparating Current in qCW Mode1[mA]

    Operating Current in Pulse Mode2[mA]

    Operating/Storage Temperature4[℃]

    MP-LED-2700-0.15-TO18

    2.70-2.79

    300-500

    50/150

    370/1000

    0.2-1.0

    200

    1000

    0..+50/0..+40

    MP-LED-2830-0.3-TO18

    2.83-2.90

    300-500

    100/300

    700/2000

    0.2-1.0

    200

    1000

    0..+50/0..+40

    MP-LED-3300-0.3-TO18

    3.30-3.44

    250-600

    100/300

    700/2000

    0.2-1.3

    200

    1000

    0..+50/0..+40

    MP-LED-3700-0.18-TO18

    3.70-3.94

    400-700

    80/180

    500/1500

    0.2-0.8

    250

    2000

    0..+50/0..+40

    MP-LED-4050-0.18-TO18

    4.05-4.30

    400-1200

    80/180

    500/1500

    0.2-0.8

    250

    2000

    0..+50/0..+40

    ¹ Repetition rate: 0.5 kHz, pulse duration: 1 ms, duty cycle: 50%

    ² Repetition rate: 0.5 kHz, pulse duration: 20 µs, duty cycle: 1%

    ³ Parameters tested on a representative sample; all other parameters tested for each device

    ⁴ Temperature range may vary depending on package type



    Device Parameters

    Device Parameter

    Symbol

    Value

    Unit

    Operating/Storage Temperature

    T_opr

    0...+50

    ℃

    Solerding Temperature(time<3 sec, 3mm from housing)

    T_sol

    +180

    ℃

    All parameters apply to LED operation at 25℃ unless otherwise stated.



    LED Parameters

    Parameter

    Condition

    Symbol

    Value

    Unit

    Peak Emission Wavelength1

    qCW mode3  I = 150 mA

    λp

    2.83-2.90

    µm

    FWHM of Emission Band1

    qCW mode3  I = 150 mA

    FWHM

    300 - 500

    nm

    Average Optical Power (Min/Typ)¹

    qCW mode3  I = 200 mA

    Pqcw

    min 100 / typ 300

    uW

    Peak Optical Power (Min/Typ)²

    Pulse mode4  I = 1 A

    Ppul

    min 700 / typ 2000

    uW

    Max Operating Current

    qCW mode3

    I_max qcw

    200

    mA

    Pulse mode4

    I_max pulse

    1

    A

    Forward Voltage¹

    qCW mode3  I = 200 mA

    V

    0.2 - 1.0

    V



    Product Characteristics

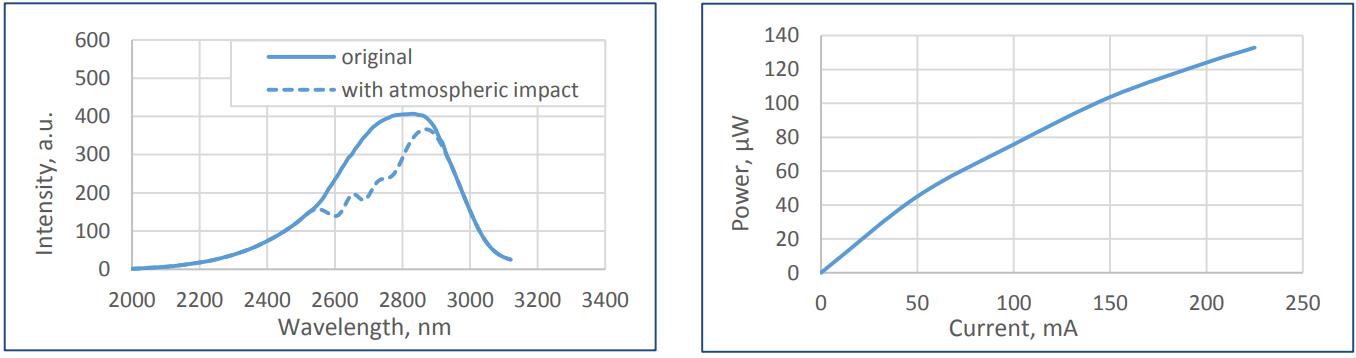

    Typical spectrum (qCW³) and typical optical power characteristics (qCW³)

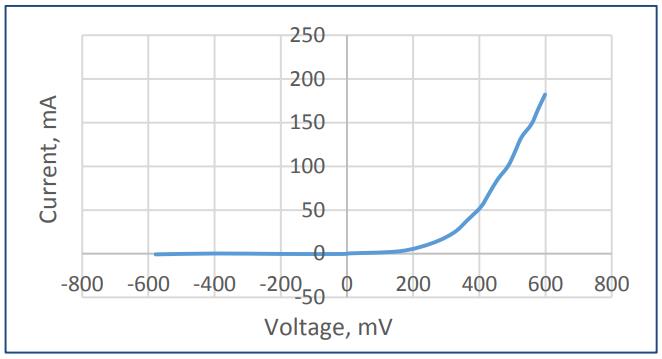

    Typical current-voltage characteristics (qCW³)


    ¹ Parameter tested for each device.

    ² Parameter tested on a representative sample.

    ³ qCW mode: repetition rate: 0.5 kHz, pulse duration: 1 ms, duty cycle: 50%.

    ⁴ Pulse mode: repetition rate: 0.5 kHz, pulse duration: 20 µs, duty cycle: 1%.

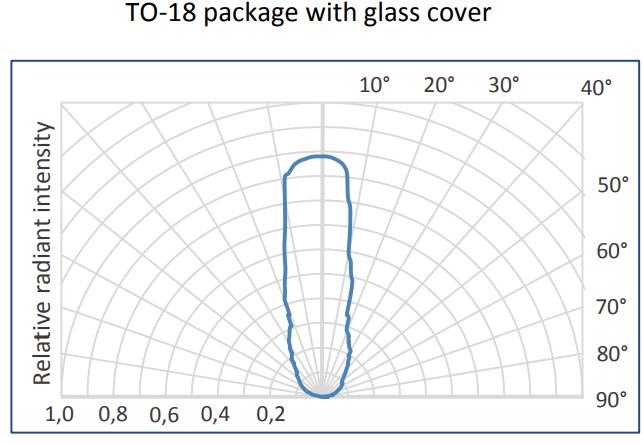

    Radiation Characteristics (Far Field Pattern)

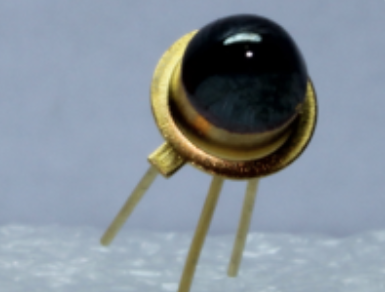

    TO-18 package with glass cap


    Related Products



    To drive the LED, we recommend the following basic circuit connection:


    We recommend using quasi-CW mode with a duty cycle of 50% or 25% to obtain maximum average optical power, and short pulse mode to obtain the highest peak power. Strong CW (continuous wave) mode is not recommended.

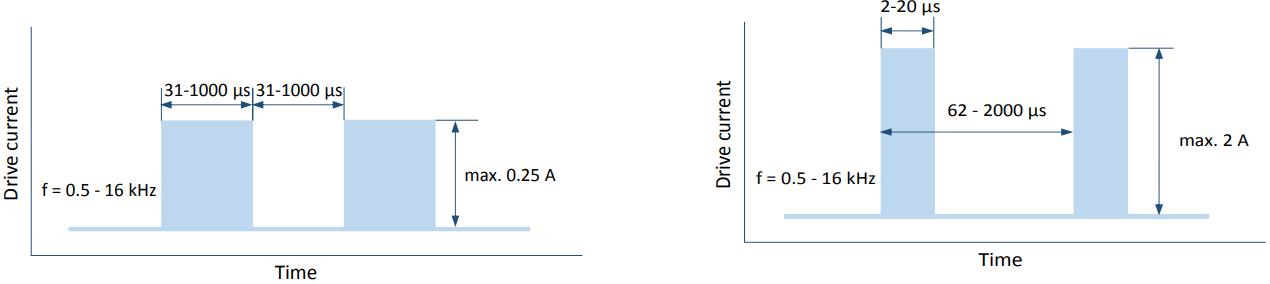

    Quasi-CW (qCW) mode and Pulse mode




    Precautions

    Please check your connection circuit before turning on the LED.

    Please pay attention to LED polarity: the anode is marked with a red dot; reverse voltage is prohibited.

    Do not connect the LED to a multimeter.

    Please control the current applied to the LED and do not exceed the maximum allowable value.

    Do not touch the glass cap or apply any force to it.

    Please pay attention to the operating and storage temperatures; exceeding the allowable range may cause irreparable damage to the glass cap.
