780nm single color LED Diode

780nm single color LED Diode

The 780nm NIR emitter is designed for applications requiring high output and precise optical mechanical axis alignment. Custom package solutions and sorting are available.

Product features：High Output Power；Narrow Beam Angle；High Reliability

Part Number：MP-LED-780-7-TO18

Application area：Bio Medical Applications | Optical Sensors | Optical Communications

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength

780nm

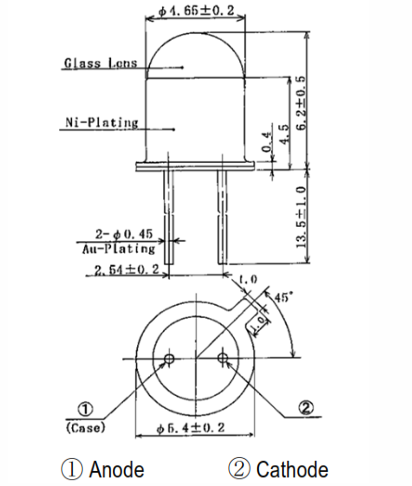

Dimension Drawing

General Parameters

Absolute Maximum Ratings (Ta=25ºC)

Items	Symbol	Ratings	Unit
Forward Current(DC)	IF	50	mA
Forwared Current(Pulse)*1	IFP	0.5	A
Reverse Voltage	VR	5	V
Power Dissipation	PD	120	mW

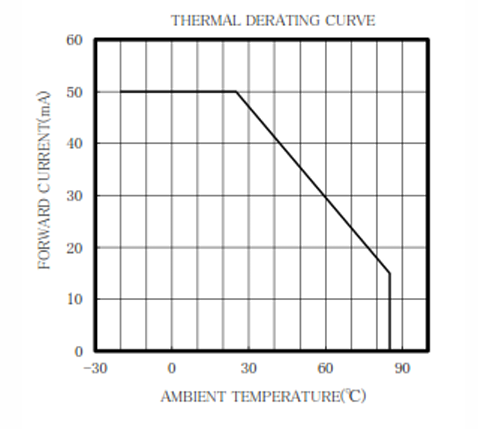

Operating Temperature Range	Topr	-20 ~ +85	℃
Storage Temperature Range	Tstg	-30 ~ +100	℃
Lead Soldering Temperature*2	Tls	260	℃

*1: Tw=10µsec, T=10msec. *2: Time 5 Sec max, Position: Up to 3mm from the body.

Electrical & Optical Characteristics (Ta = 25ºC)

Items	Symbol	Test Condition	Min.	Typical	Max.	Unit

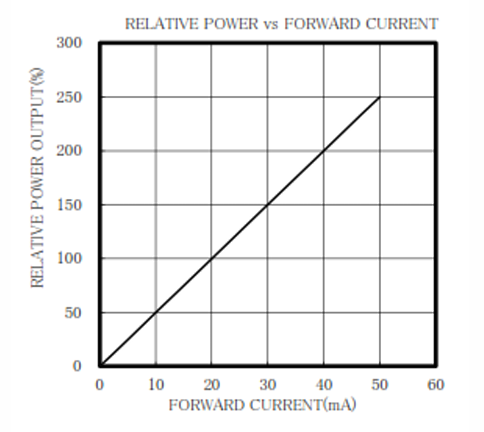

Power Output	PO	IF=20mA	4.0	7.0	--	mW

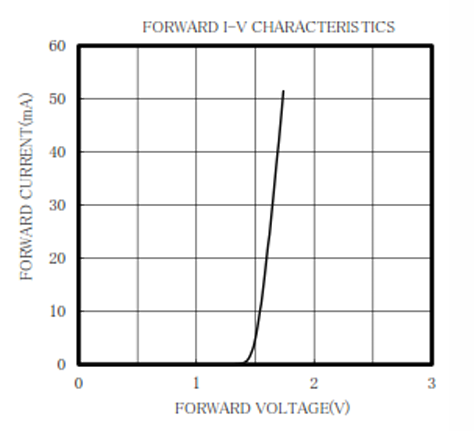

Forward Voltage	VF	IF=20mA	--	1.57	1.90	V
Reverse Current	IR	VR=5V	--	--	100	μA

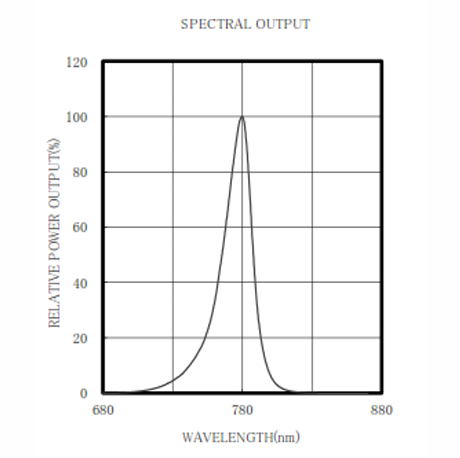

Peak Emission Wavelength	λp	IF=20mA	--	780	--	nm
Spectra Line Half Width	Δλ	IF=20mA	--	25	--	nm

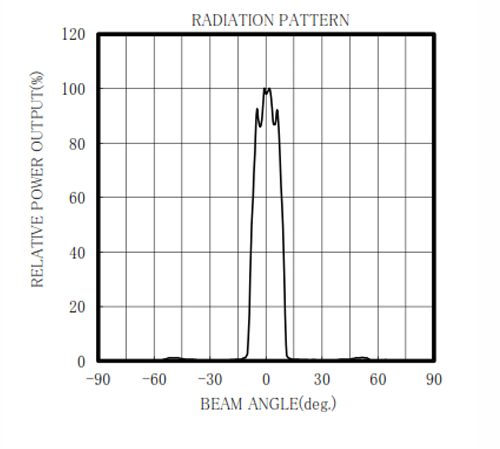

Half Intensity Beam Angle	Θ	IF=20mA	--	±8	--	°

Package Dimensions and Electro-Optical Characteristics

Optional Configurations

Downloads

780nm single color LED Diode.pdf
