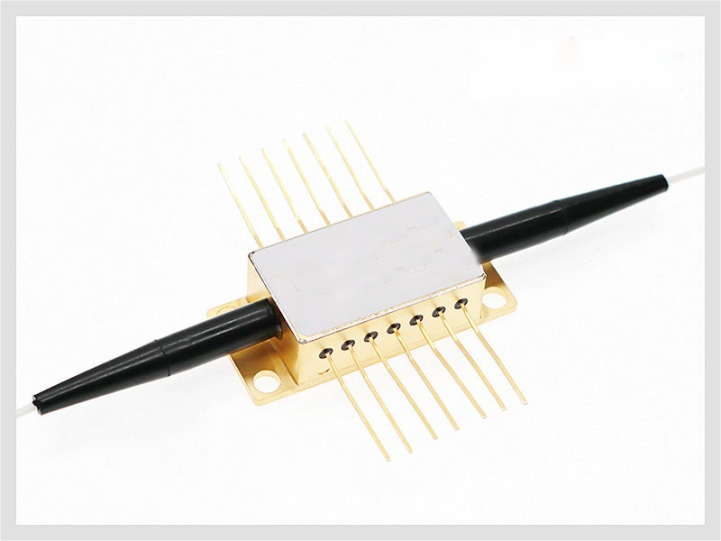

    • 840nm Semiconductor Optical Amplifier(Nonlinear)

    This is a polarization-insensitive optical amplifier. It uses advanced epitaxial growth and optoelectronic packaging technologies to achieve high output saturation power, low noise figure, and high gain over a broad spectral bandwidth.

    Product features：Wide optical bandwidth；High output power；Low polarization sensitivity；Multi-quantum well (MQW) structure

    Part Number：MP-SOA-840-24db-25-SA

    Application area：Telecom and data communications | All-optical signal processing | Communications | Sensing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center wavelength Spectral width

    820-830nm 20-30nm

  • Dimension Drawing
    • General Parameters

    Detailed parameters

    Laser specifications

    Electrical/optical characteristics (Tsub=25°C, CW bias, unless otherwise noted)

    Item

    symbol

    Test conditions

    Min. value

    Typical values

    Max. value

    unit

    Fiber optic gain

    G

    CW, IF = 300mA

    20

    24

    28

    dB

    Forward current

    IF



    300

    350

    mA

    Forward voltage

    VF




    2.5

    V

    Center wavelength

    λc

    CW, IF = 300mA

    820

    825

    830

    nm

    Spectral width

    Δλ

    CW, IF = 300mA

    20

    25

    30

    nm

    Saturation power

    PS

    CW, IF = 300mA

    8

    9

    10

    dBm

    Noise figure

    NF

    CW, IF = 300mA

    7

    8

    9

    dB

    Gain ripple

    δG

    CW, IF = 300mA


    1

    2

    dB

    Polarization-related gain

    PDG

    CW, IF = 300mA


    10


    dB

    Chiller voltage

    VC

    IF=EOL, TC=70°C



    2.7

    V

    Cooler current

    IC

    IF=EOL, TC=70°C



    1.4

    A

    Thermal resistance

    Ro

    TLD=25°C, B=3900±100K

    9.5

    10.0

    10.5

    kΩ



    Absolute maximum rated parameters

    Item

    symbol

    Rated value

    unit

    LD forward current

    If

    400

    mA

    LD reverse voltage

    Vr

    1.8

    V

    Operating temperature

    TC

    -20 to +70

    °C

    Storage temperature

    Tstg

    -20 to +85

    °C

    Cooling current

    IC

    1.4

    A

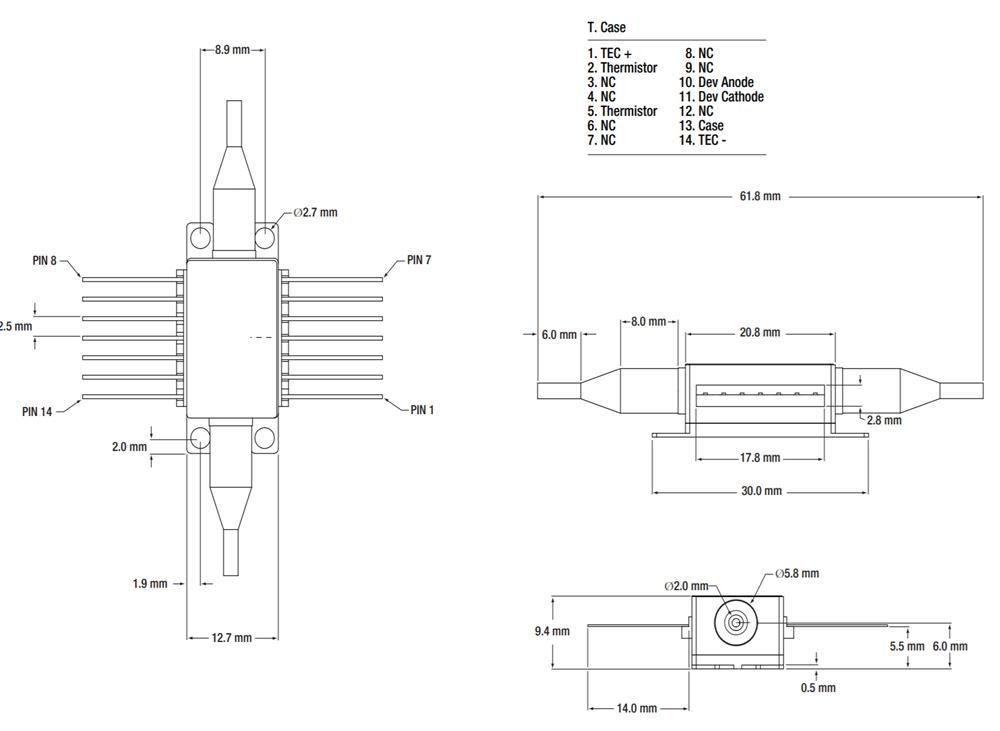

    Dimensions and pin definitions




    1

    Thermoelectric Cooler (+)

    8

    N/C

    2

    Thermistor

    9

    N/C

    3

    NA

    10

    SOA Anode (+)

    4

    NA

    11

    SOA Cathode (‒)

    5

    Thermistor

    12

    N/C

    6

    N/C

    13

    Case Ground

    7

    N/C

    14

    Thermoelectric Cooler (-)



    Ordering information

    MP-SOA-W□□□□-☆-A8▽-XX

    □□□□：Wavelength

    680:680nm

    910: 910nm

    * * * * *

    1550:1550nm

    1650:1650nm

    ☆ ： Output Power

    A: 5dbm

    B: 10dbm

    ▽：Spectral Width

    1：60-70nm

    2：30-40nm

    XX: Fiber and Connector Type

    SASA=(HI780+ FC/APC)+(HI780+ FC/APC)

    SPSP=(HI780+ FC/PC)+(HI780+ FC/PC)

    PPPP=(PM Fiber+ FC/PC)+(PM Fiber+ FC/PC)

    PAPA=(PM Fiber+ FC/APC)+(PM Fiber+ FC/APC)


    Optional Configurations

    --

    Downloads

    840nm Semiconductor Optical Amplifier(Nonlinear).pdf
