    • 1403nm MEMS VCSEL Laser Diode

    Vertical-Cavity Surface-Emitting Laser (VCSEL) is a semiconductor laser based on gallium arsenide (GaAs) material, which emits light vertically from the top surface, fundamentally different from light-emitting diodes (LEDs) and laser diodes (LDs).It consists of reflective mirrors, an active layer, and a metal contact layer. The two emission mirrors are P-type and N-type distributed Bragg reflectors (DBR) respectively, and the active region is composed of quantum wells.A metal contact layer is fabricated on the outer surface of the P-type DBR to form ohmic contact, and a circular aperture is opened on the P-type DBR for laser output.This laser features a small far-field divergence angle with a narrow, circular beam, low threshold current, and high modulation frequency up to 300 kHz.Wavelength tuning can be realized by adjusting the driving current and operating temperature.The package integrates a thermoelectric cooler (TEC) and a photodetector (PD), specially designed for high-speed optical fiber applications.

    Product features：7-pin design; aspheric lens cap; integrated thermoelectric cooler (TEC) for temperature stability control;output power: 1.6 mW;single-mode operation covering the C-L band;broad spectral tuning range: > 8 nm;fast wavelength tuning: ~100 kHz

    Part Number：MP-VCS-1403-1.6-A81-SA-TEC

    Application area：Tunable Diode Laser Absorption Spectroscopy (TDLAS) Gas Measurement System | Face Recognition | LiDAR | Data Centers & Cloud Computing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength

    1403nm

  • Dimension Drawing
    • General Parameters

    Technical Specifications

    Tc = 20 °C, IOP = 2.0 mA unless otherwise noted(Tc = chip backside temperature, controlled by TEC)

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Optical Output Peak Power @ 25 °C

    P

    1.0

    1.6

    –

    mW

    Operating Bias Current

    Iop

    0

    18

    25

    mA

    Operating Temperature Range

    Top

    -40

    25

    85

    °C

    Threshold Current

    Ith

    –

    8

    12

    mA

    Slope Efficiency (CW, Tc = 25 °C)

    SE

    0.14

    0.18

    –

    mW/mA

    Laser Drive Voltage

    VCC

    0

    1.5

    2.5

    V

    Series Resistance

    Rs

    –

    50

    –

    Ω

    Center Wavelength

    –

    1400

    –

    1410

    nm

    Guaranteed Tuning Range(Positive voltage reduces peak wavelength)

    λ

    8

    10

    –

    nm

    Max. Frequency Tuning Response

    fmax

    100

    200

    –

    kHz

    Side Mode Suppression Ratio

    SMSR

    30

    40

    –

    dB

    Linewidth (-3 dB FWHM, CW bias = IOP)

    σ

    –

    –

    300

    MHz

    Relative Intensity Noise

    RIN

    –

    –

    -128

    dB/Hz

    Tuning Voltage

    Vtune

    0

    Test Sheet

    Test Sheet

    V

    Tuning Current

    Itune

    0

    –

    100

    μA

    TEC Voltage

    VTEC

    –

    0.35

    1.5

    V

    TEC Current

    ITEC

    –

    0.05

    0.6

    A



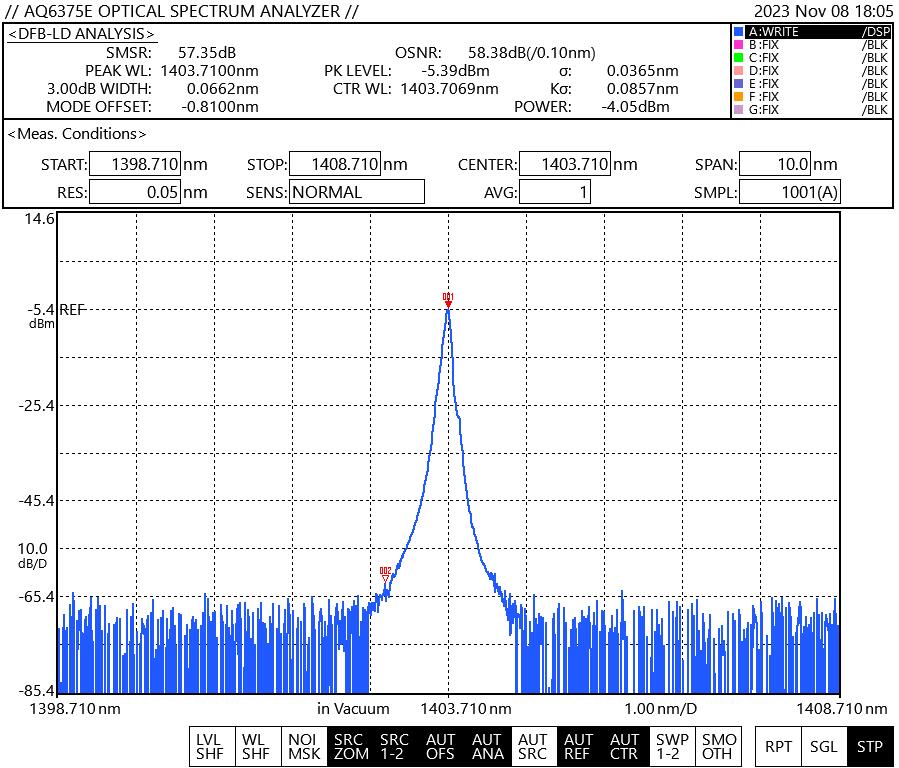

    Experimental Data




    Operating bias current = 19 mA, continuous wave at 25 °C (0 to +15 V)

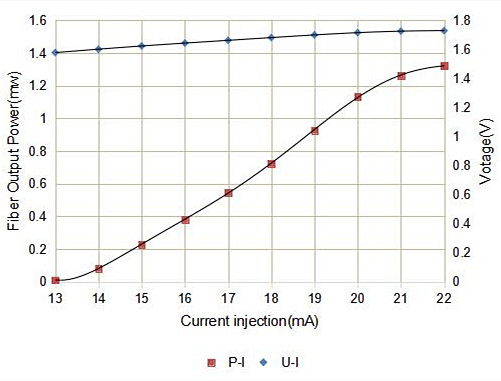

    Optical Power vs. Current Curve (at 25°C)

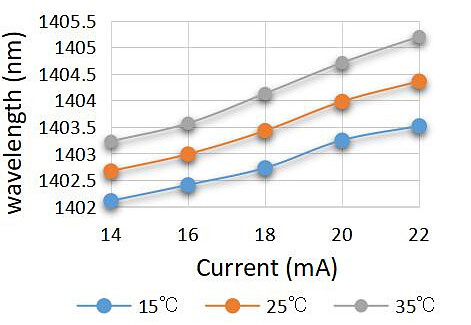

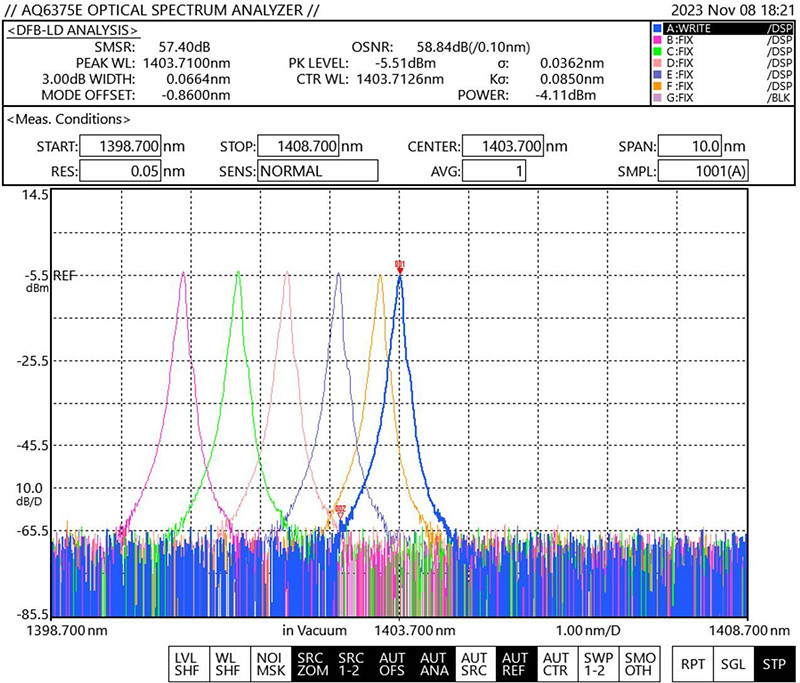

    Tuning Characteristics




    Load Variation at Different Frequencies

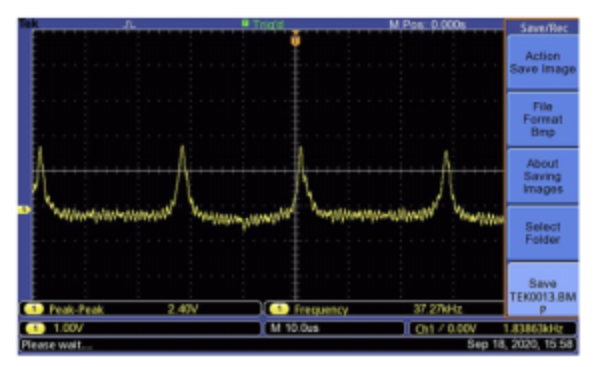

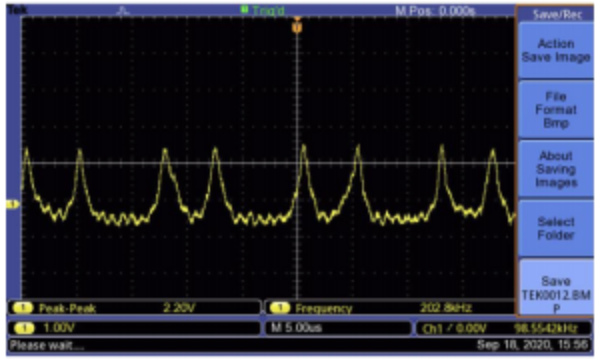

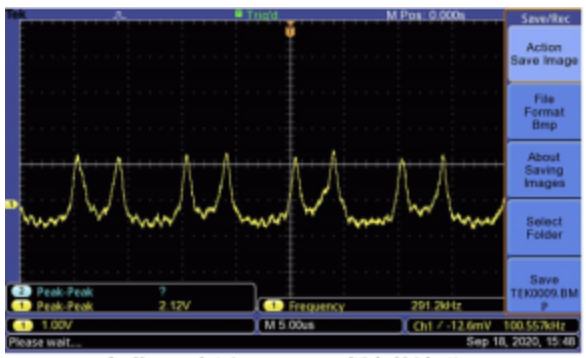

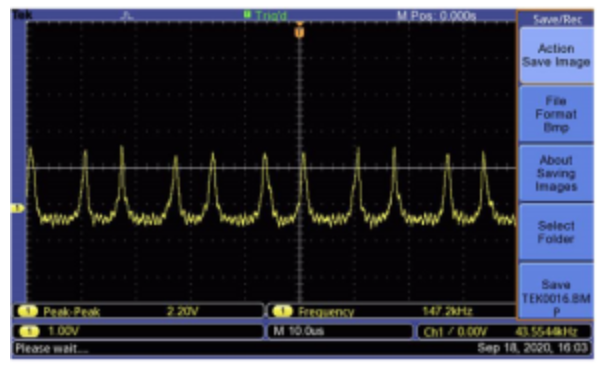

    Waveform@5V 20kHz

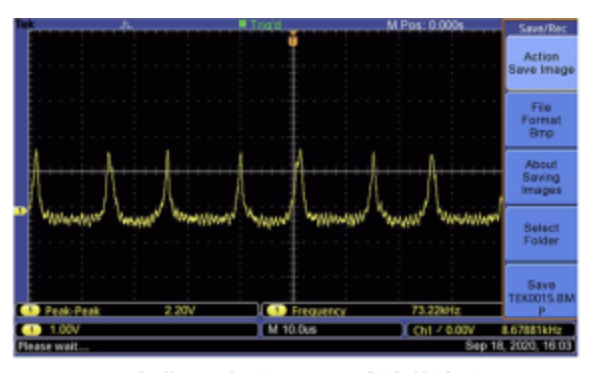

    Waveform@5V 40kHz




    Waveform@5V 60kHz



    Waveform@5V 80kHz

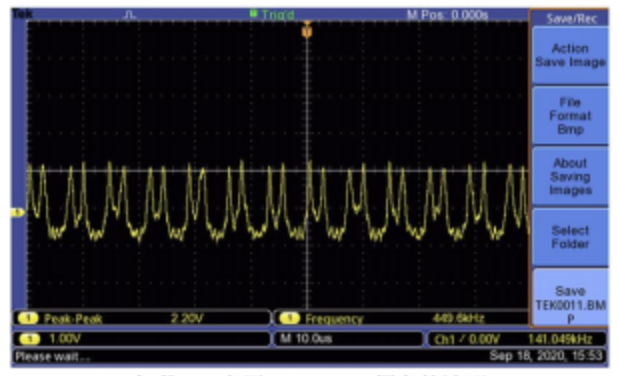

    Waveform@5V 100kHz



    Waveform@5V 120kHz

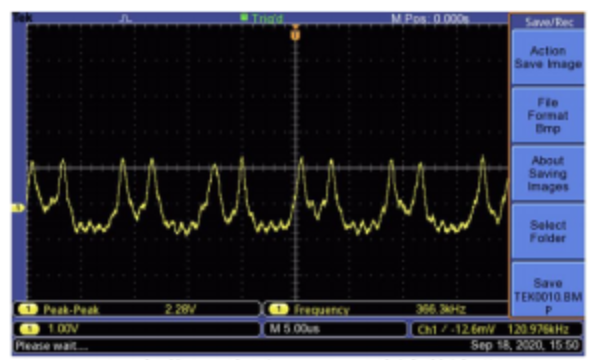

    Waveform@5V 140kHz



    With a constant 5V voltage applied, the frequency was varied to obtain the figure above. Our modulation frequency is extremely high, allowing it to carry a greater amount of information and provide a faster response speed.

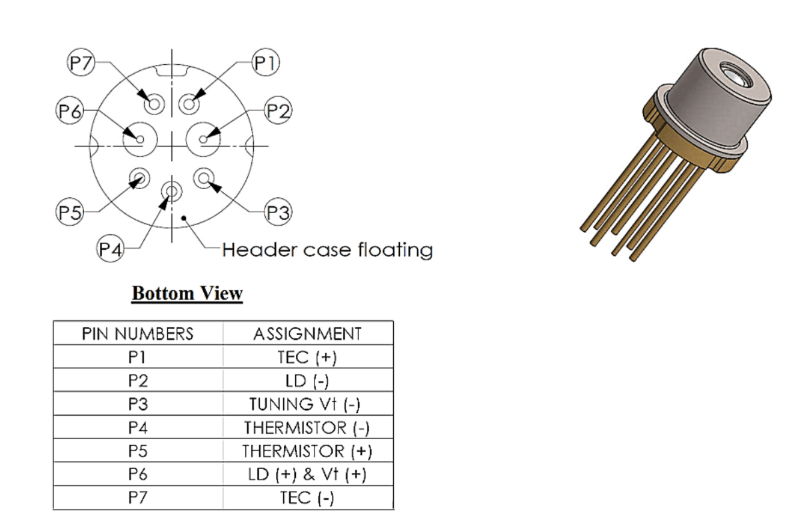

    Pin Definition


    The generation of VCSEL laser mainly consists of three components: the laser gain medium, the pump source, and the optical resonant cavity.The pump source excites the gain medium to achieve population inversion and generate light emission.Within the resonant cavity formed by the bottom and top mirrors, the light is amplified and oscillates, finally outputting from the top mirror.The output light is confined only to the central region without an oxide layer, forming vertical-cavity surface-emitting laser and producing a stable, continuous, high-quality laser beam with sufficient output power.



    Ordering Information

    MP-VCS-W□□□□-☆-A8▽
