    • 840nm 5mW SLD Laser Diode

    The SLD (Superluminescent Diode/SLED) light source combines the high output power of a laser diode with the broad spectral width and low coherence of an LED. Its narrow active layer, similar to that of a laser diode, makes it ideal for fiber coupling, giving it characteristics between those of an LD and an LED. The AS8B series is an SLD module developed for Optical Coherence Tomography (OCT) light sources and non-coherent optical measurement equipment.

    Product features：Broad spectral output；Polarization-maintaining fiber coupling；Low coherence；High stability；Intelligent control

    Part Number：MP-SLD-840-5-A81-14BF-PA

    Application area：Optical Coherence Tomography (OCT) | Fiber-optic Gyroscopes | Fiber-optic Sensing | Device Testing | Biological Detection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Spectral Width Optical Power

    840nm 50nm 5mW

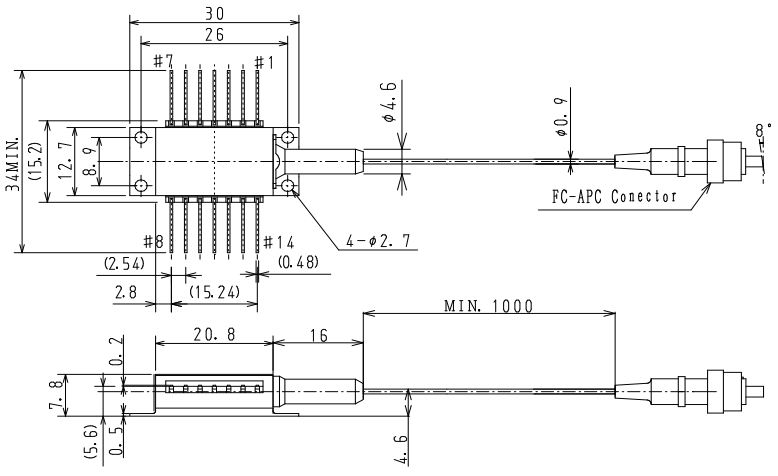

  • Dimension Drawing
    • General Parameters

    Pin definition







    Absorption Max. Rating

    Item

    symbol

    Rating

    unit

    MP-SLD-840-2.5-A81-14BF-PA

    MP-SLD-840-6-A81-14BF-PA

    MP-SLD-840-7-A81-14BF-PA

    Output power

    Pf

    2.5

    6.0

    7.0

    mW

    SLD forward current

    IF

    180

    220

    220

    mA

    SLD reverse voltage

    VR

    2.0

    V

    PD reverse voltage

    VRD

    20

    V

    Enclosure operating temperature

    TC

    -20 to 70

    °C

    Storage temperature

    Tstg

    -40 to 85

    °C

    TEC current

    IC

    2.0

    A

     Note: Exceeding the jue to Max. rating may cause a malfunction



    Characteristic parameters

    Fiber characteristics:

    Parameters

    Min.

    Typ.

    Max.

    unit

    Cut-off wavelength

    700

    730

    760

    nm

    Mold field diameter @850nm

    4.5

    5.0

    5.5

    μm

    Cladding diameter

    123.5

    125

    126.5

    μm

    Coating diameter

    850

    -

    950

    μm

    Fiber bending radius

    13

    -

    -

    mm



    Optical properties (TSLD=25°C, TC=25°C).

    Parameters

    Symbol

    MP-SLD-840-2.5-A81-14BF-PA

    MP-SLD-840-6-A81-14BF-PA

    MP-SLD-840-7-A81-14BF-PA

    unit

    Min.

    Typ.

    Max.

    Min.

    Typ.

    Max.

    Min.

    Typ.

    Max.

    Output power

    Pf

    2.0

    -

    -

    5.0

    -

    -

    5.0

    -

    -

    mW

    Forward voltage

    VF

    -

    2.0

    2.5

    -

    2.0

    2.5

    -

    2.0

    2.5

    V

    Forward current (BOL).

    IF

    -

    -

    120

    -

    -

    150

    -

    150

    180

    mA

    Center wavelength

    λC

    810

    830

    850

    810

    830

    850

    820

    840

    860

    nm

    Spectral width

    Δλ

    10

    14

    -

    10

    14

    -

    45

    50

    -

    nm

    Monitor the current

    Im

    0.2

    -

    -

    0.2

    -

    -

    0.05

    -

    2.0

    mA

    Note 1: Each value refers to Ding under the rated output power

    Note 2: Monitor current measurement conditions (VR = 5 V).



    Electrical characteristics

    Parameters

    symbol

    conditions

    Min.

    Typ.

    Max.

    unit

    PD dark current

    Id

    VR=5 V

    -

    -

    0.1

    μA

    Tracking error

    ΔPf

    Im=const, Tc=-20 to 70°C

    -1.0

    -

    1.0

    dB

    Cooling voltage

    VC

    IF=*EOL, Tc=70°C

    -

    -

    2.5

    V

    Cooling current

    IC

    IF=*EOL, Tc=70°C

    -

    -

    1.0

    A

    Thermistors

    Rth

    TLD=25°C, B=3900±100K

    9.5

    10.0

    10.5

    kΩ

    Note: BOL: Life Start/EOL: End of Life * EOL=BOL×1.2



    Standard performance

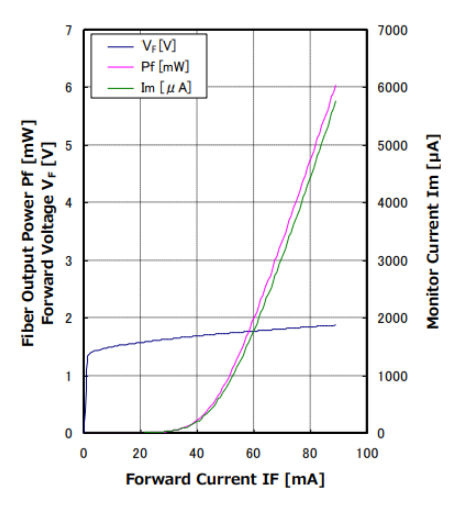

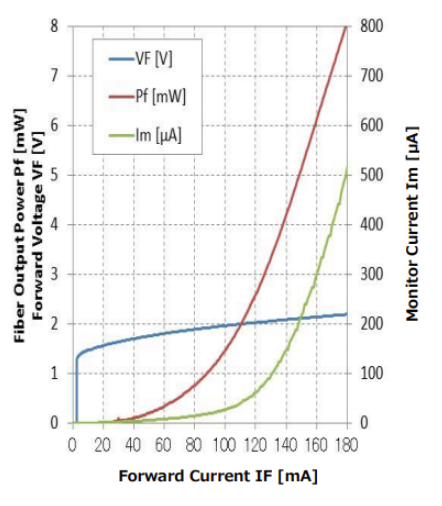

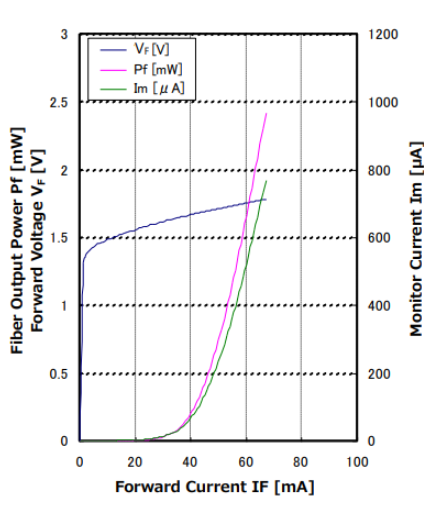

    Output power (Pf) / forward voltage (VF) / monitoring current (Im m).




    MP-SLD-840-2.5-A81-14BF-PA




    MP-SLD-840-5-A81-14BF-PA



    MP-SLD-840-7-A81-14BF-PA

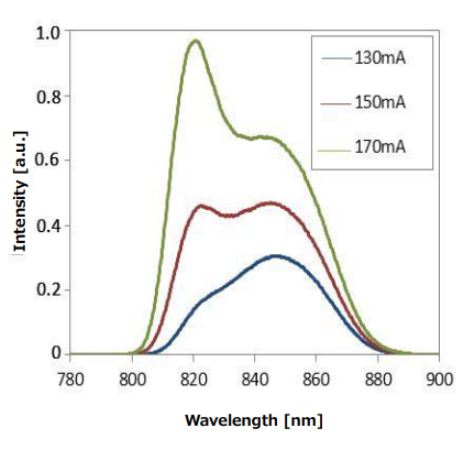

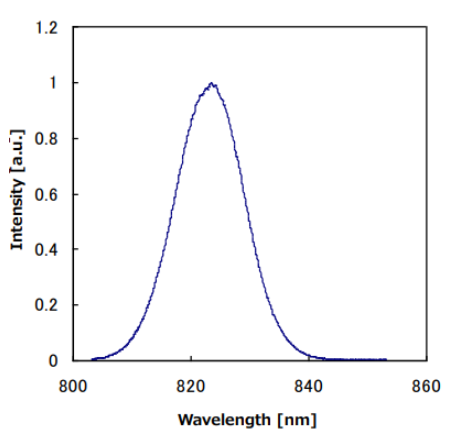

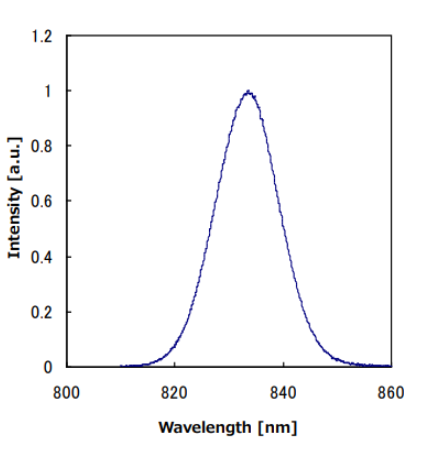

    Spectrum

    MP-SLD-840-2.5-A81-14BF-PA




    MP-SLD-840-6-A81-14BF-PA



    MP-SLD-840-7-A81-14BF-PA



    Optional Configurations

    --

    Downloads

    No resources available
