    • 2004nm 3mW DFB Laser Diode for CO2 Sensing

    2004nm DFB laser diode module is a cost-effective, high-coherence laser source. The DFB laser diode chip is packaged in the industry-standard 14-pin butterfly package with hermetic sealing. A Thermoelectric Cooler (TEC) and a built-in Photodiode (PD) are integrated inside the module. It features excellent Side Mode Suppression Ratio (SMSR) and high optical output power.

    Product features：Narrow linewidth: < 2 MHz；Excellent wavelength control and stability；Industry-standard 14-pin butterfly package；Mode-hop-free tuning；Ultra-high reliability；Customizable wavelength available on request

    Part Number：MP-DFB-2004-3-A81-14BF-SA

    Application area：Tunable Diode Laser Absorption Spectroscopy (TDLAS) | Carbon Dioxide (CO₂) Monitoring

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    2004nm 3mW

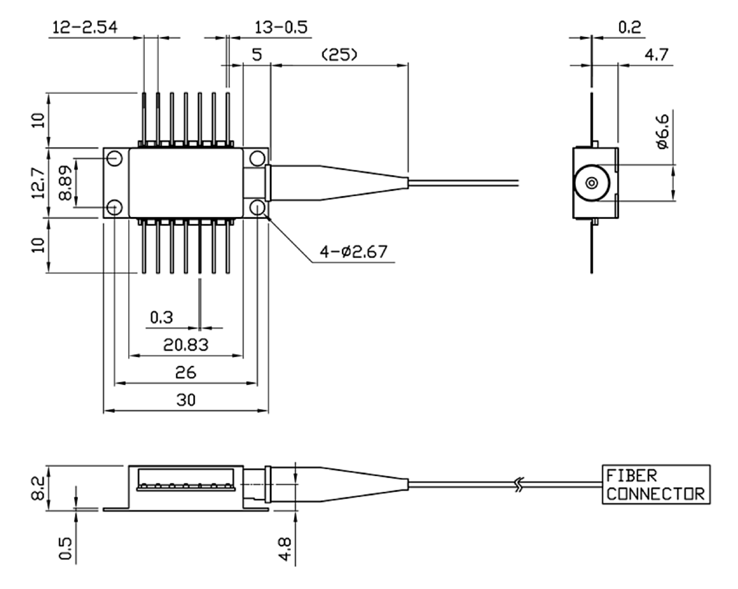

  • Dimension Drawing
    • General Parameters

    Detailed parameters

    Electrical/Optical Properties (Substrate Temperature = 25°C, CW Bias unless otherwise noted)

    Parameters

    symbol

    Minimum

    Typical values

    Maximum

    unit

    Center wavelength

    λ

    2003

    2004

    2005

    nm

    Side Mode Suppression Ratio

    SMSR

    30

    40


    dB

    Threshold current

    Ith


    20

    30

    mA

    Operating current

    Iop


    180

    200

    mA

    Fiber output power

    Pf

    2

    3

    8

    mW

    Quantum Efficiency

    η

    0.08

    0.12


    mW/mA

    Current Tuning Coefficient

    ∆λ/∆I


    0.015


    nm/mA

    Temperature Tuning Coefficient

    ∆λ/∆T


    0.12


    nm/K

    Forward Voltage

    Vf


    1.3

    2

    V

    Thermistor resistance value

    RT

    9.5

    10

    10.5

    KΩ

    Thermistor temperature coefficient



    -4.4


    %/℃

    connectors

    FC/APC

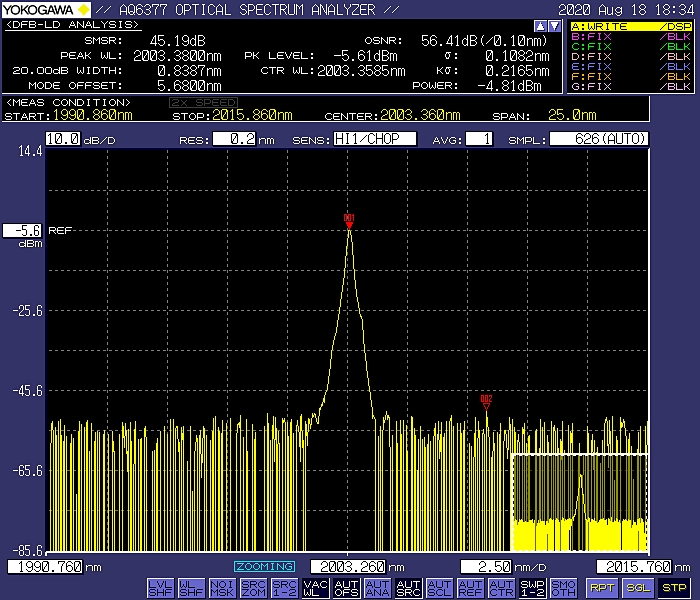

    Spectrum

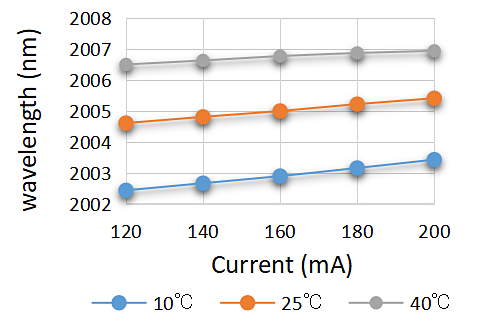

    Tuning Characteristics

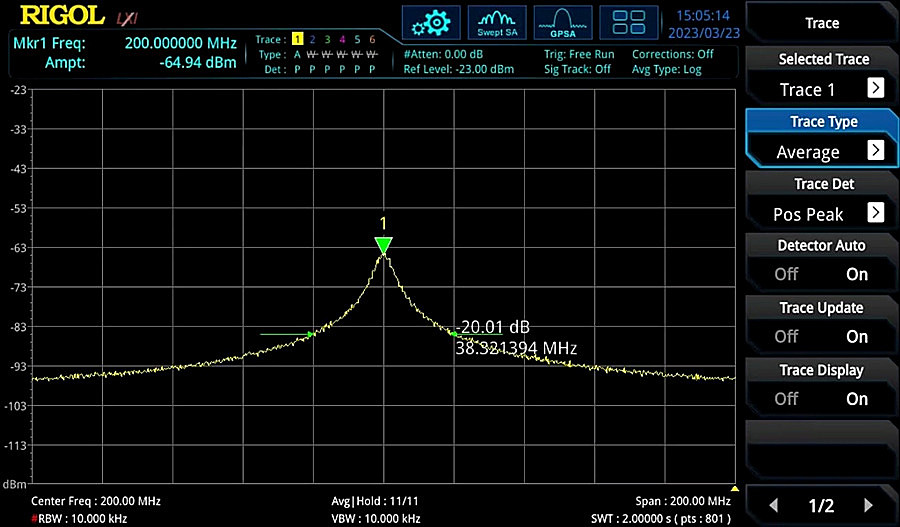

    DFB Linewidth Test Result

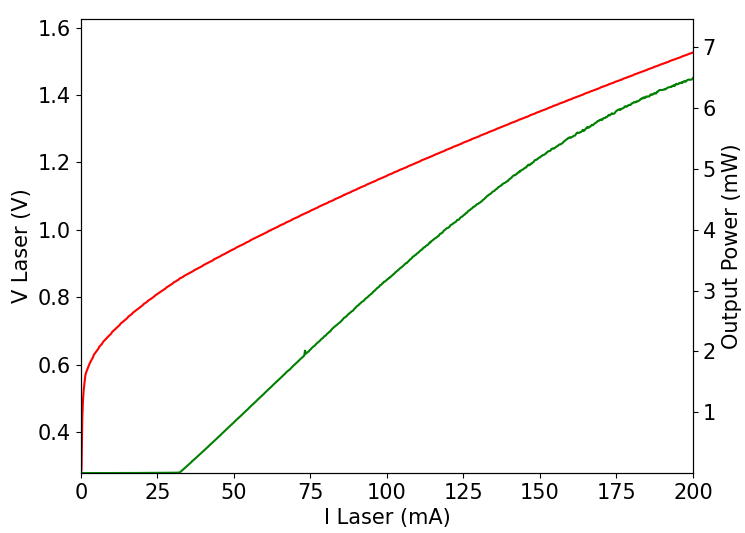

    L-I Curve

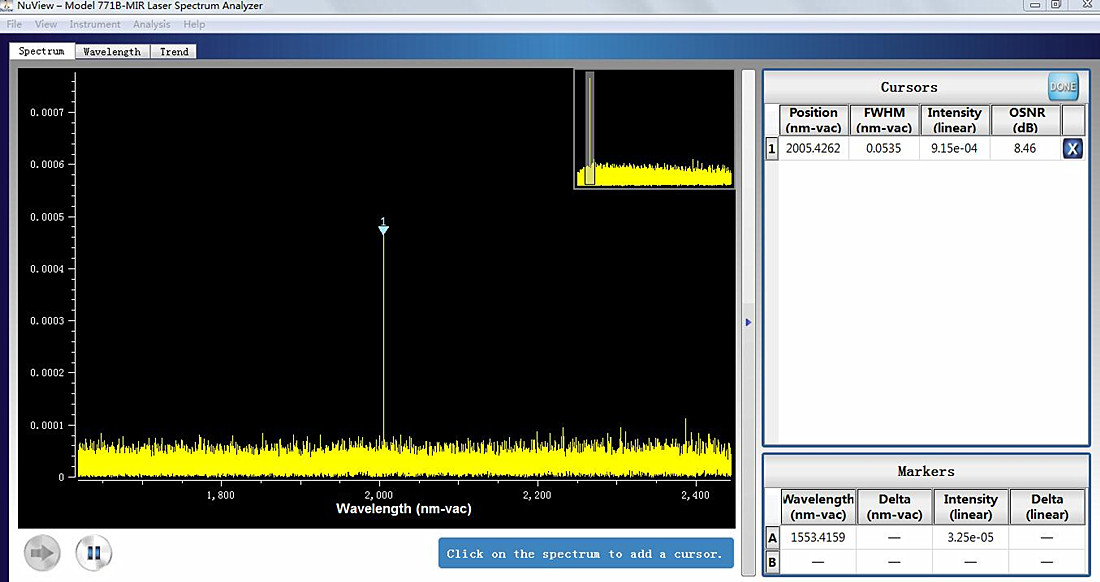

    Central Wavelength

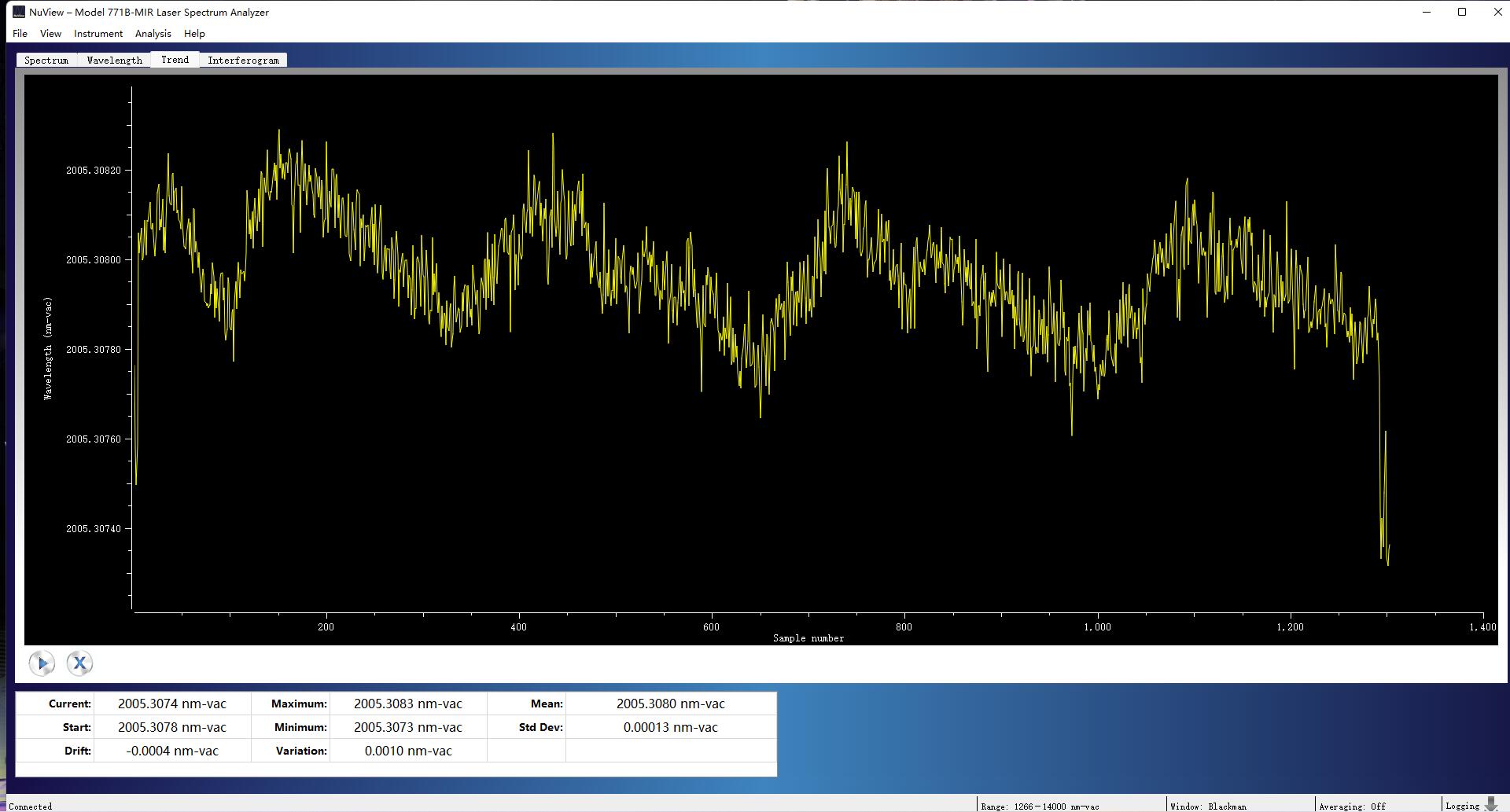

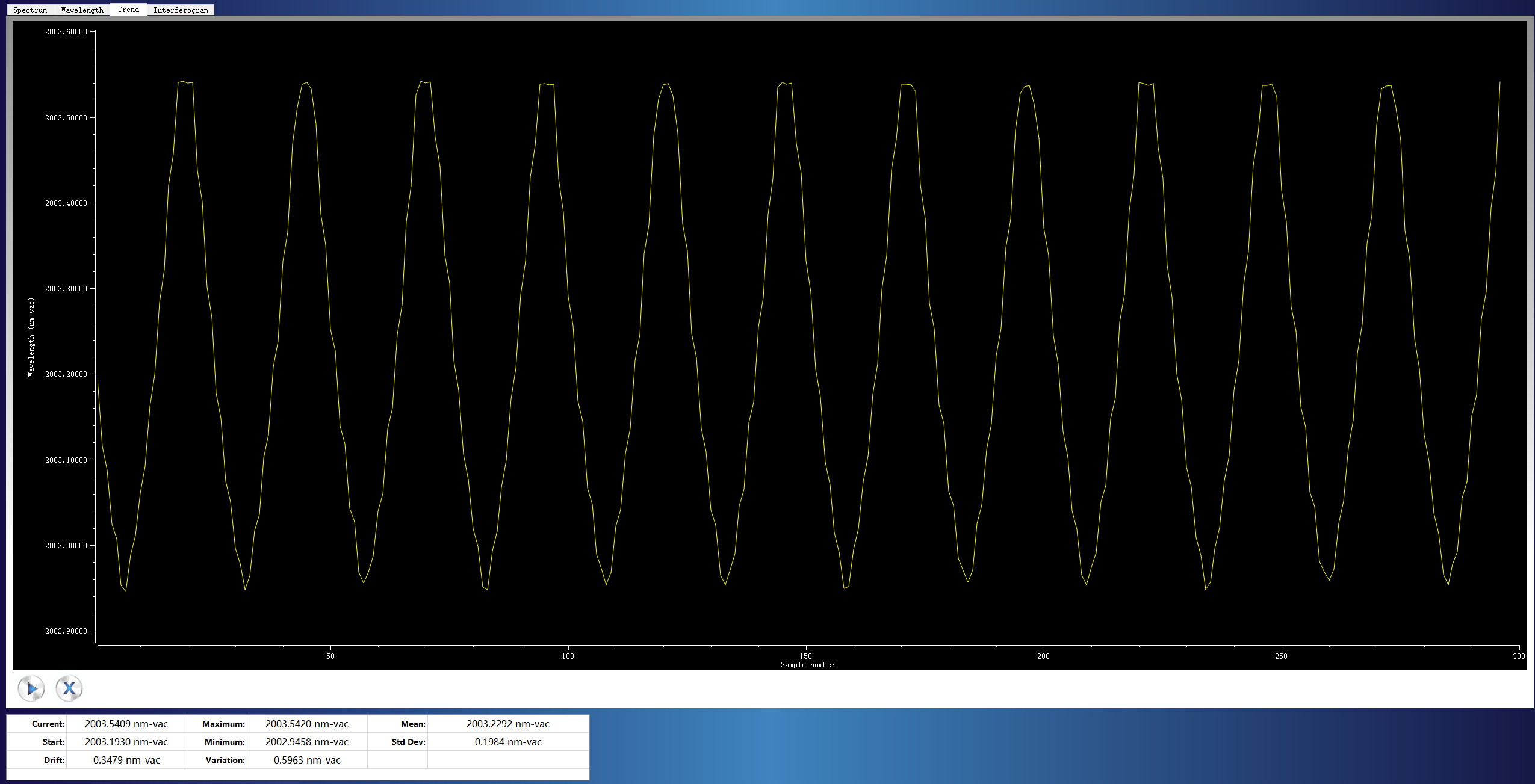

    Wavelength Stability

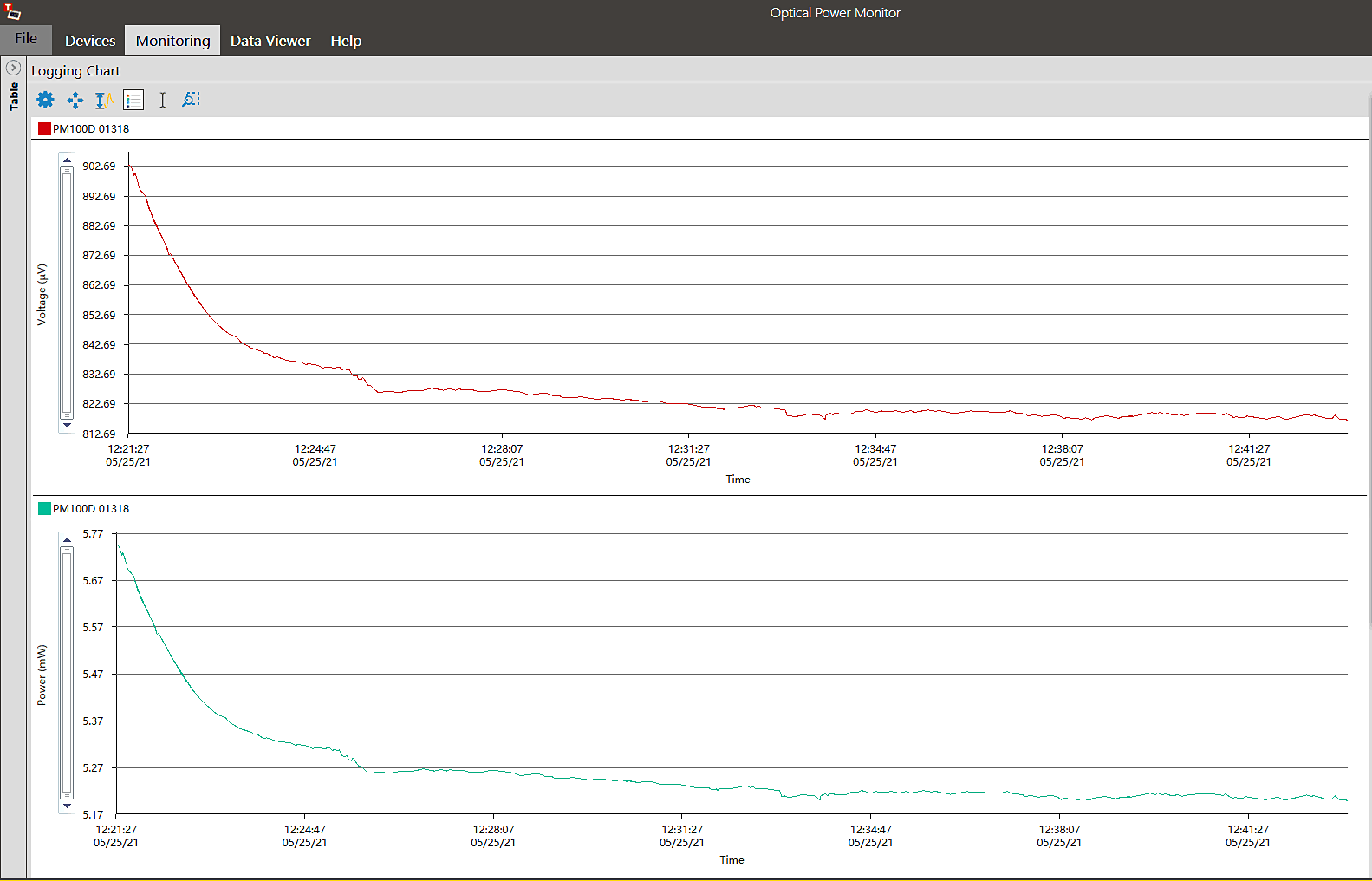

    Power Stability




    Mode-hop Tuning Range

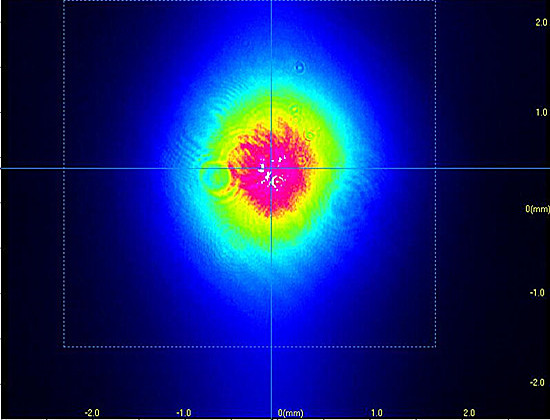

    Beam Quality




    2D

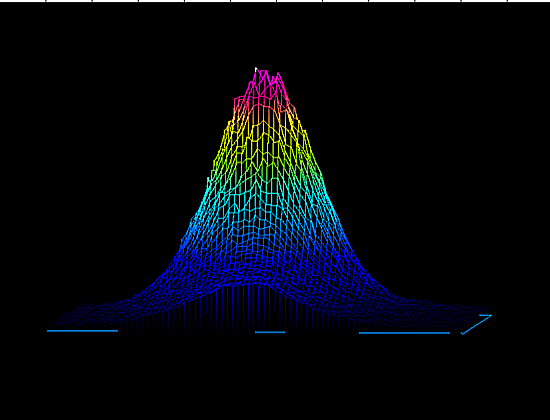

    3D

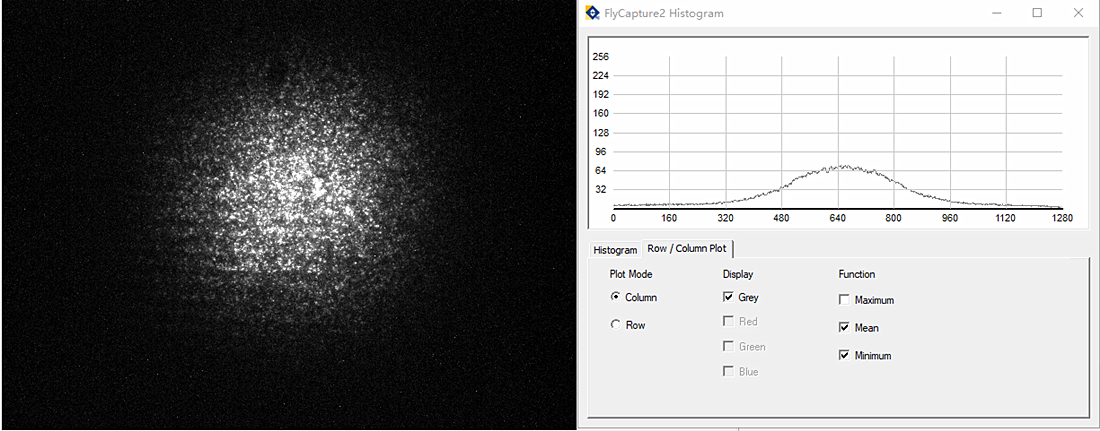

    Camera Analysis




    Pin Definition

    PIN#

    Function

    PIN#

    Function

    1

    Thermistor

    8

    Case Ground

    2

    Thermistor

    9

    Case Ground

    3

    Laser Anode (-)

    10

    N/C

    4

    N/C

    11

    Laser Cathode (+)

    5

    N/C

    12

    Laser Anode (-)

    6

    TEC (+)

    13

    Laser Cathode (+)

    7

    TEC (-)

    14

    N/C


    Absolute maximum rating

    project

    unit

    Minimum

    Typical values

    Maximum

    Shell temperature

    ℃

    -5

    25

    70

    Chip temperature

    ℃

    +10

    25

    40

    Operating current

    mA

    0

    180

    200

    Forward voltage

    V

    0.8

    1.2

    1.8

    Semiconductor Refrigerator (TEC) Current

    A

    -

    -

    1.2

    Laser diode (LD) reverse voltage

    V

    -

    -

    2.0

    Photodiode (PD) reverse voltage

    V

    -

    -

    20

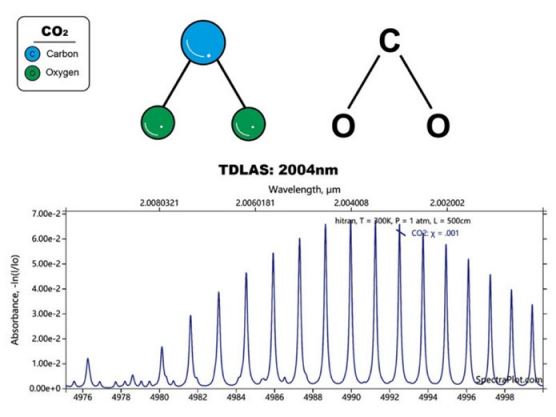

    CO2



    Order information

    MP-DFB-□□□□-☆-A8▽-XX

    □□□□: Wavelength

    1512:1512nm

    *****

    1653.7: 1653.7nm

    2004: 2004nm

    ☆: Output Power

    A: 2mW

    B: 5mW

    ▽: Wavelength Tolerance

    1: ±1nm

    2: ±2nm

    XX: Fiber and Connector Type

    SA=SMF-28E+ FC/APC

    SP=SMF-28E+ FC/PC

    PP=PM Fiber+ FC/PC

    PA=PM Fiber+ FC/APC


    Optional Configurations

    --
