1385 nm distributed feedback (DFB) laser diode module is a cost-effective laser source with high coherence. The DFB laser diode chip is housed in an industry-standard hermetically sealed 14-pin butterfly package, with an integrated thermoelectric cooler (TEC) and photodetector (PD).

Product features：Narrow linewidth: < 2 MHz; industry-standard 14-pin butterfly package; excellent wavelength control and stability; mode-hop-free tuning; high reliability; customer-specific wavelengths available

Part Number：MP-DFB-1385-20-A81-14BF-PA

Application area：Tunable Diode Laser Absorption Spectroscopy | H₂O (gas) monitoring

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Central Wavelength Output Power

1385nm 20mW

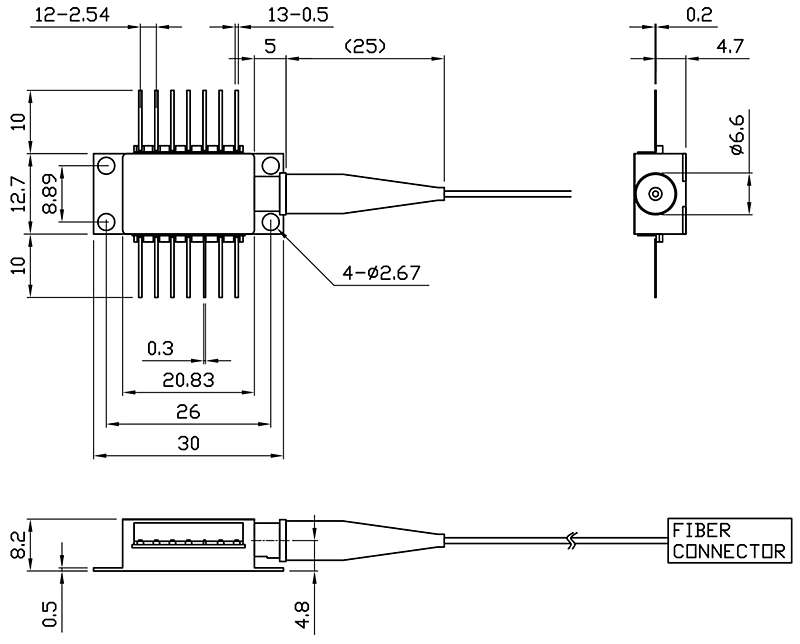

Dimension Drawing

General Parameters

Detailed Parameters

Specification Table

Electrical / Optical Characteristics (Tsub = 25 °C, CW bias, unless otherwise specified)

Parameter	Symbol	Min.	Typ.	Max.	Unit
Center Wavelength	λ	1384.5	1385	1385.5	nm
Side-Mode Suppression Ratio	SMSR	30	40	—	dB
Threshold Current	Ith	—	20	30	mA
Operating Current	Iop	—	75	100	mA
Chip Output Power	Pf	—	20	35	mW
Quantum Efficiency	η	0.08	0.12	—	mW/mA
Current Tuning Coefficient	∆λ/∆I	—	0.015	—	nm/mA
Temperature Tuning Coefficient	∆λ/∆T	—	0.12	—	nm/K
Forward Voltage	Vf	—	1.3	2	V
Thermistor Resistance	RT	9.5	10	10.5	kΩ
Thermistor Temperature Coefficient	—	—	-4.4	—	%/℃

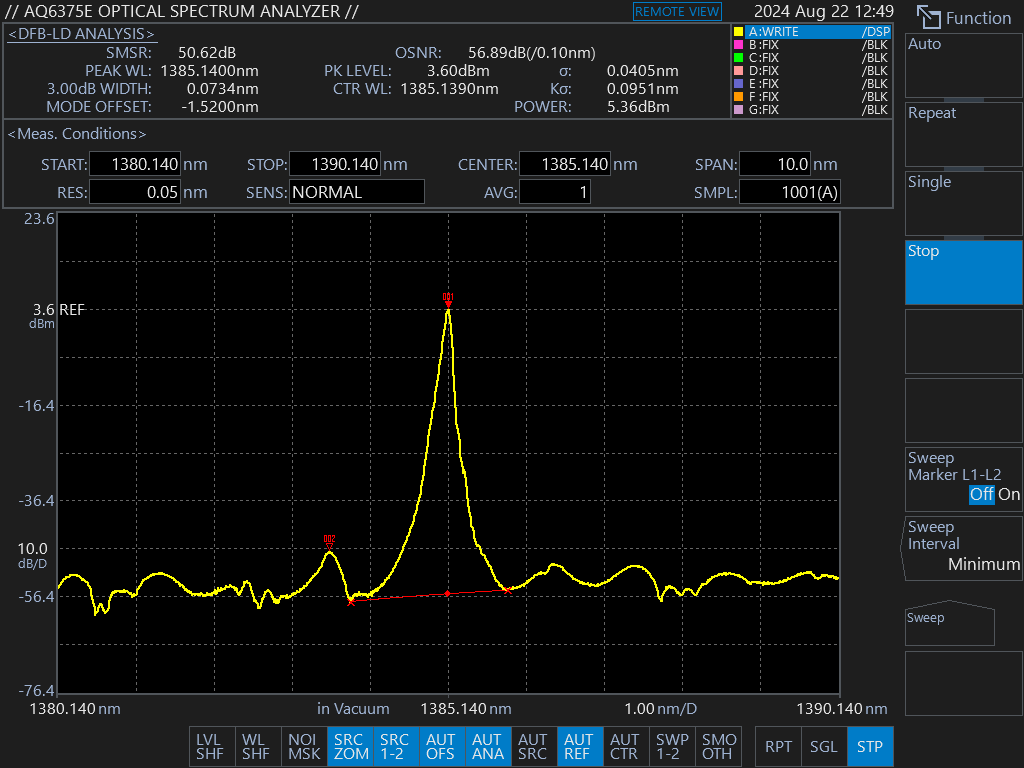

Spectrum Diagram

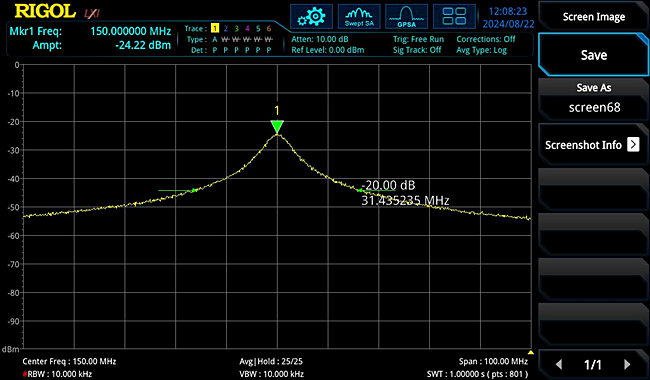

DFB Laser Linewidth Test Results(CW, 1.572 MHz@25deg, 50mA)

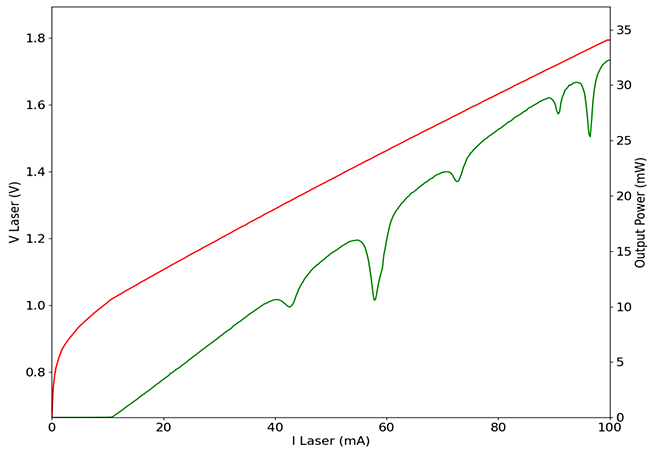

L-I Curve

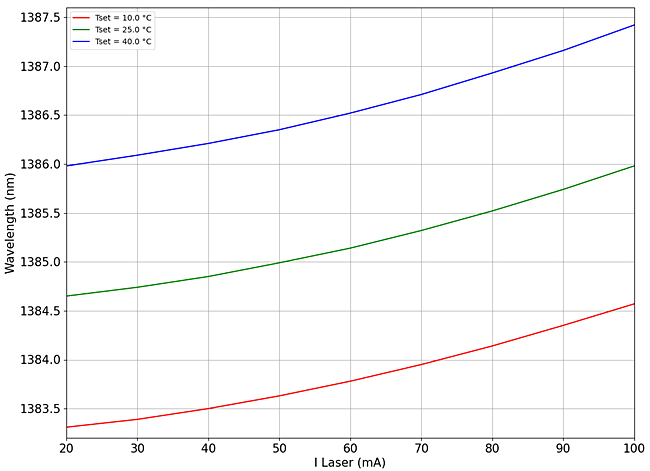

Tuning Characteristics

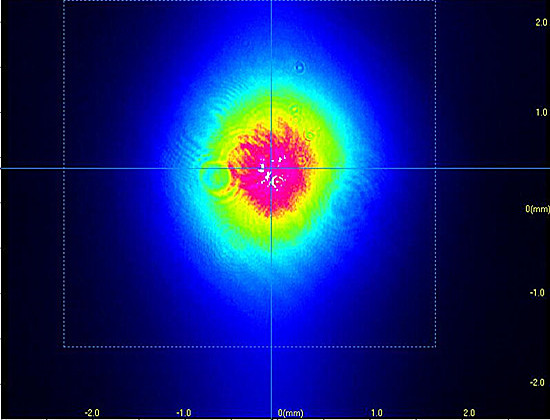

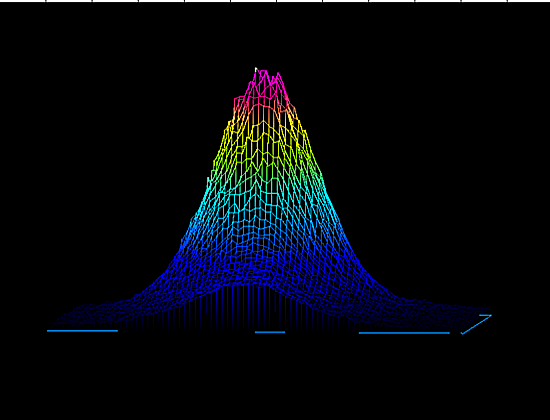

Beam Quality

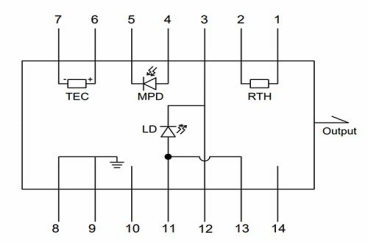

Pin Definition：

Pin #	Definition	Pin #	Definition
1	Thermistor	8	Case Ground
2	Thermistor	9	Case Ground
3	LD(-)	10	NC
4	Detector (+)	11	LD(+)
5	Detector (-)	12	LD(-), RF
6	TEC (+)	13	LD(+)
7	TEC (-)	14	NC

Absolute Maximum Ratings:

Parameter	Unit	Min.	Typ.	Max.
Case Temperature	℃	-5	25	70
Chip Temperature	℃	10	25	40
Operating Current	mA	0	75	100
Forward Voltage	V	0.8	1.2	1.8
TEC Current	A	—	—	1.2
Reverse Voltage (LD)	V	—	—	2.0
Reverse Voltage (PD)	V	—	—	20

Ordering Information:

MP-DFB-□□□□-☆-A8▽-XX

**□□□□: Wavelength

1341: 1341nm

1385: 1385nm

1392: 1392nm

1512: 1512nm

1567: 1567nm

*****

1653.7: 1653.7nm

☆ : Output Power

A: 50mW

B: 80mW

▽: Wavelength Tolerance

1: ±1nm

2: ±2nm

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PP=PM Fiber+ FC/PC

PA=PM Fiber+ FC/APC
