760.8nm 6mW TO5 DFB laser diode

760.8nm 6mW TO5 DFB laser diode

760.8 nm DFB laser diodes are used for oxygen detection.

Product features：Compact TO5 package; stable output; single longitudinal mode characteristic; low threshold current; wide-temperature operation

Part Number：MP-DFB-760.8-6-TO5

Application area：Optical fiber communication | Fiber optic sensing | Industrial inspection | Medical equipment | Consumer electronics

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters

Core parameters

Central Wavelength Output Power

760.8nm 6mW

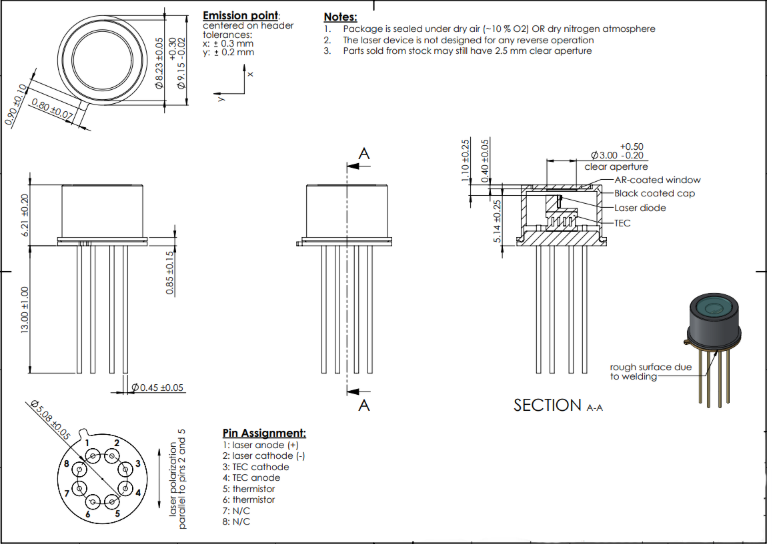

Dimension Drawing

General Parameters

General Parameters

Item	Symbol	Unit	Min.	Typ.	Max.
Operating Wavelength	λop	nm	—	760.8	—
Optical Output Power (at λop)	Pop	mW	—	6	—
Operating Current	Iop	mA	—	30	—
Operating Voltage	Vop	V	—	3	—
Threshold Current	Ith	mA	5	10	18
Side-Mode Suppression Ratio	SMSR	dB	—	>35	—
Current Tuning Coefficient	CI	nm/mA	0.010	0.018	0.025
Temperature Tuning Coefficient	CT	nm/K	0.045	0.054	0.060
Chip Operating Temperature	Top	℃	+20	+25	+40
Case Operating Temperature	Tcase	℃	-20	+25	+55
Storage Temperature	TStg	℃	-40	+20	+80

Prduct Features

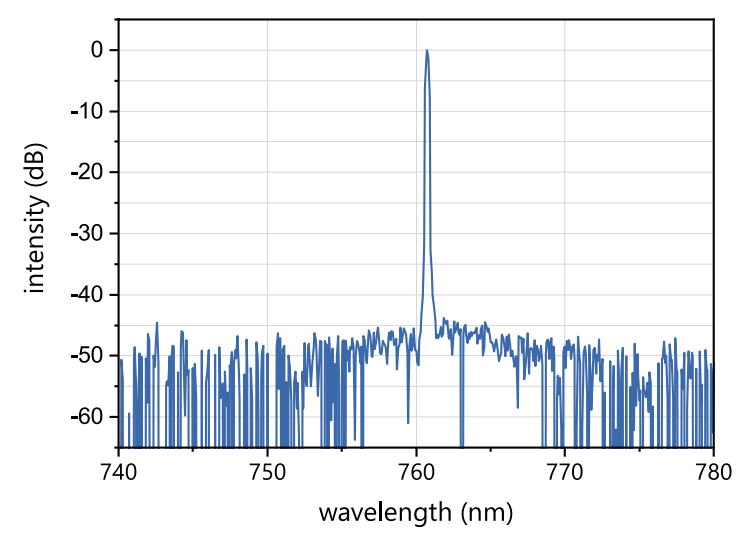

Spectrum Diagram

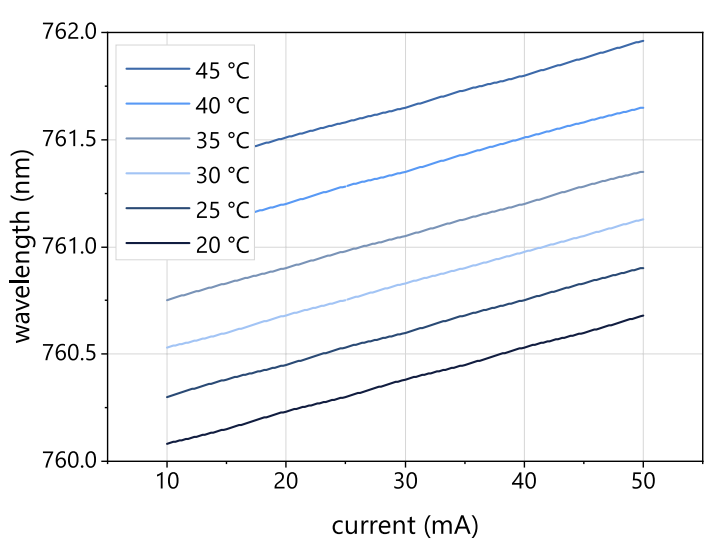

Wavelength tuning range

Optional Configurations
