    • 405nm 20mW SM FP Laser Diode

    405nm FP is a single-mode laser diode module designed specifically for optical measurement and communication. The laser adopts a standard 14-pin butterfly package, with a built-in monitoring photodiode (PD) and thermoelectric cooler (TEC), and is coupled to PM Fiber. The pigtail of this module is 0.7-1.0m single-mode polarization-maintaining fiber, with an FC/APC connector interface.

    Product features：Optical output power: 30mW；FC/APC connector；14-pin butterfly package；High-efficiency coupling to single-mode fiber；Continuous wave (CW) or pulsed operation mode；Built-in monitoring photodiode (PD) and thermoelectric cooler (TEC)；Single-mode (SM) or polarization-maintaining (PM) fiber (0.9mm diameter)

    Part Number：MP-FP-405-20-14BF-SA

    Application area：Fiber optic transmission systems | Laser interferometry | Laser indication | Test light sources

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Connectors

    405nm FC/APC

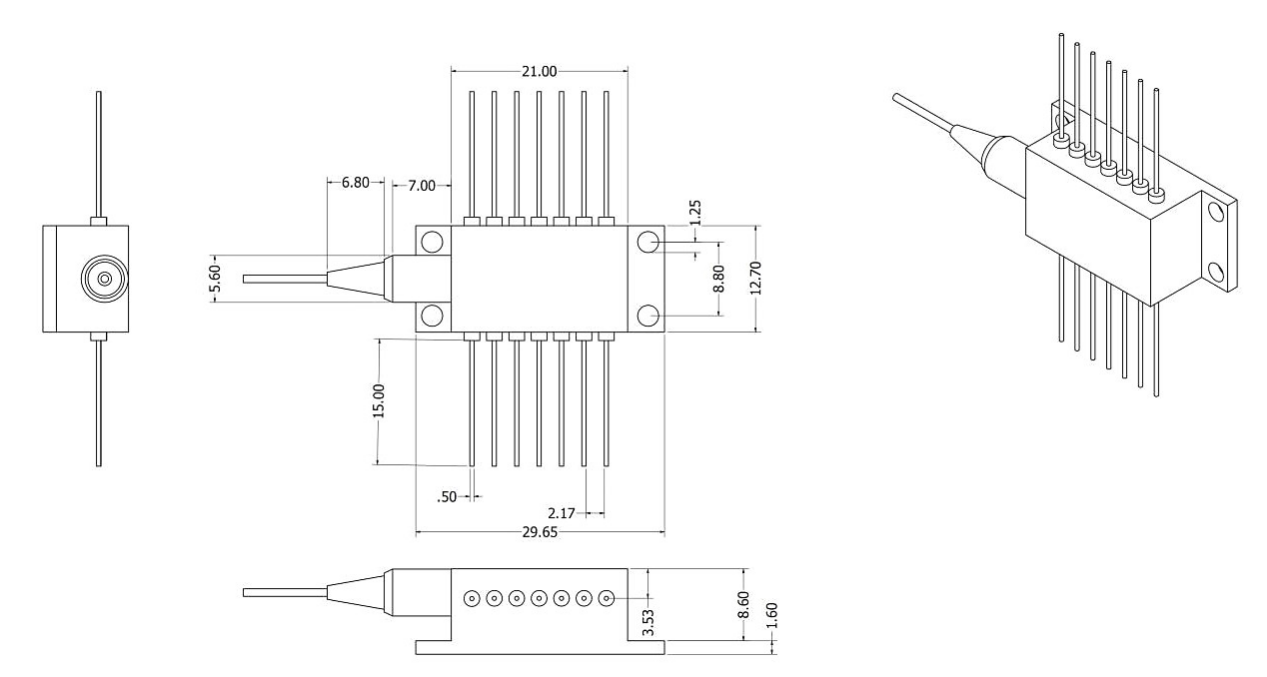

  • Dimension Drawing
    • General Parameters

    Detailed parameters

    Electrical/Optical Properties (Substrate Temperature = 25°C, CW Bias unless otherwise noted)

    Parameters

    symbol

    Minimum

    Typical values

    Maximum

    unit

    Center wavelength

    λ

    403

    405

    408

    nm

    Spectral width

    Δλ

    0.6

    0.8

    1.2

    nm

    Threshold current

    Ith


    20

    30

    mA

    Operating current

    Iop


    120

    150

    mA

    Fiber output power

    Pf

    10

    20

    30

    mW

    Photodiode dark current (at reverse voltage VRD=5V)

    Id



    0.1

    uA

    Matting ratio (polarization version)

    PER

    17

    20


    dB

    Coupled fiber type

    PM Fiber

    Forward voltage

    Vf


    6

    8

    V

    Thermistor resistance value

    RT

    9.5

    10

    10.5

    KΩ

    Thermistor temperature coefficient



    -4.4


    %/℃

    connectors

    FC/APC

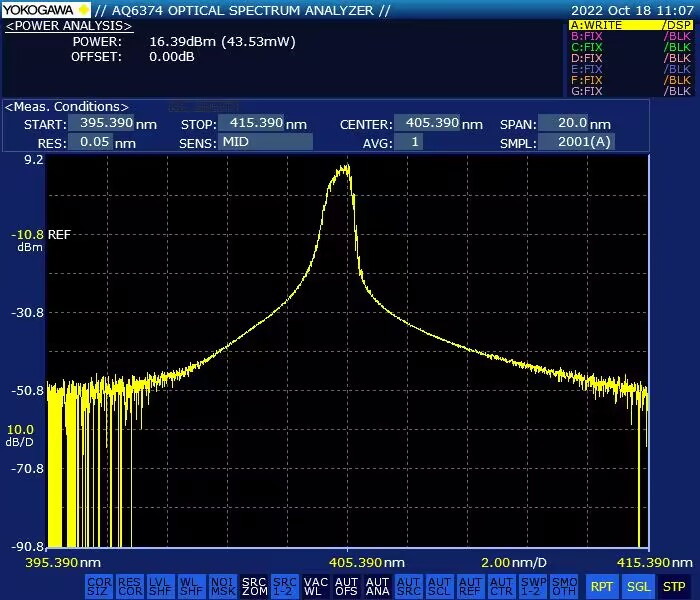

    Spectrum

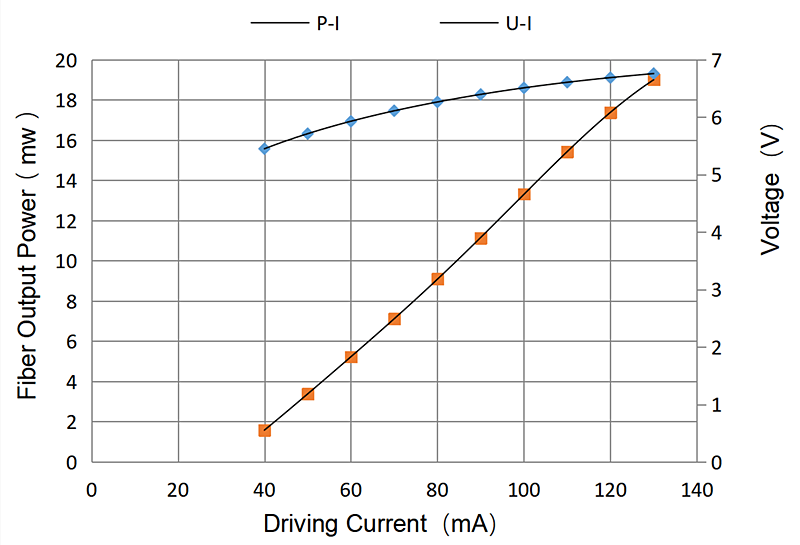

    Optical Power - Current Curve

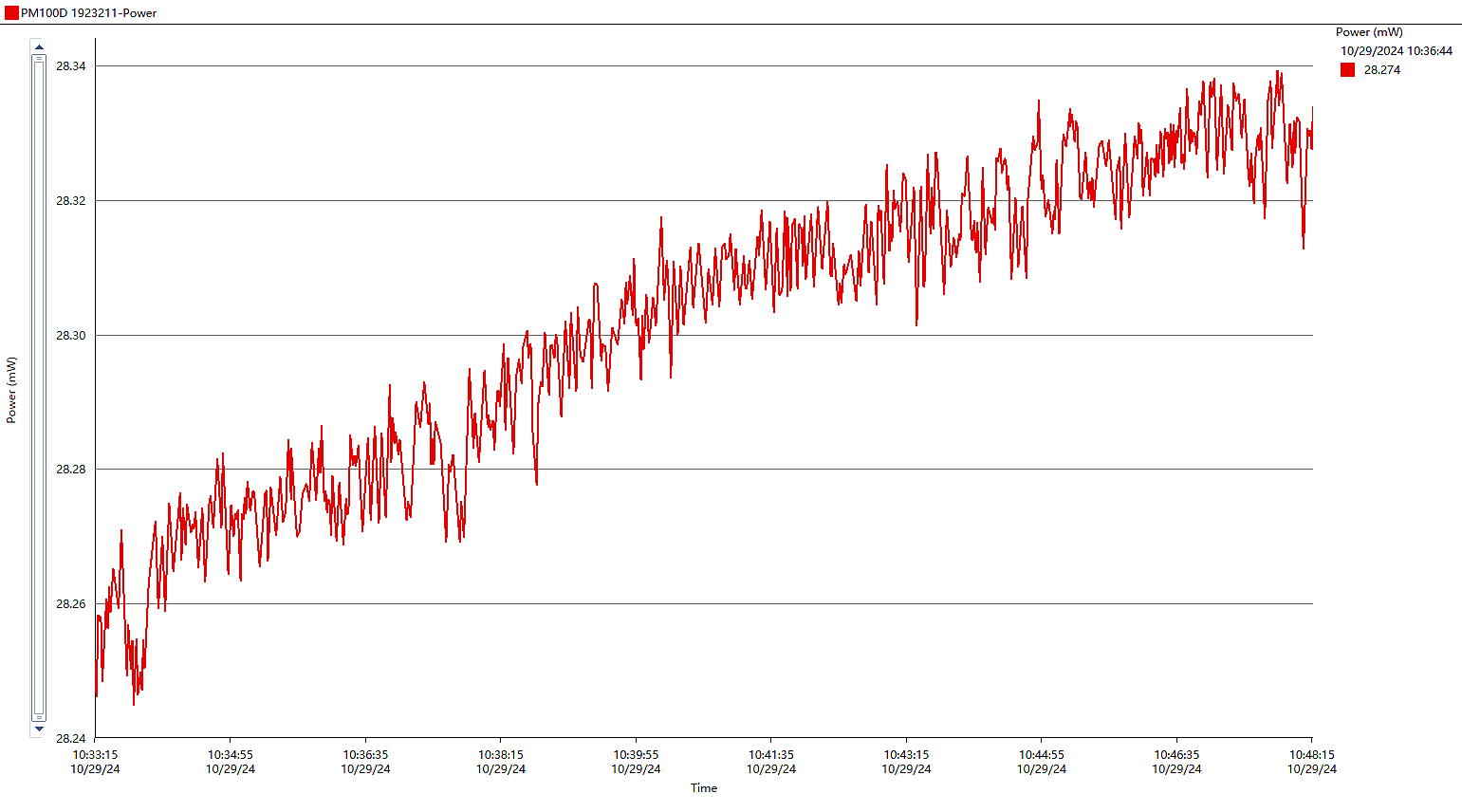

    Power stability

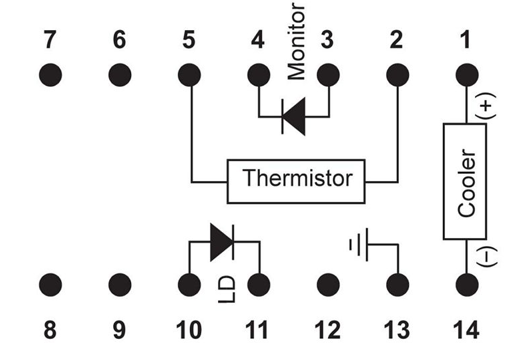

    Pin type


    1

    Thermoelectric cooler (Anode)

    8

    N/C

    2

    Thermistor

    9

    N/C

    3

    Monitor photodiode anode (Cathode)

    10

    Laser diodes (Anodes)

    4

    Monitor photodiode cathode (Anode)

    11

    Laser diodes (Cathode)

    5

    Thermistor

    12

    N/C

    6

    N/C

    13

    Case ground

    7

    N/C

    14

    Thermoelectric cooler (Cathode)


    Absolute maximum rating

    project

    unit

    Minimum

    Typical values

    Maximum

    Shell temperature

    ℃

    -5

    25

    70

    Chip temperature

    ℃

    +10

    25

    40

    Operating current

    mA

    0

    120

    150

    Forward voltage

    V

    5

    6

    8

    Semiconductor Refrigerator (TEC) Current

    A

    -

    1.2

    1.4

    Laser diode (LD) reverse voltage

    V

    -

    -

    1.8

    Photodiode (PD) reverse voltage

    V

    -

    -

    10


    Purchase information

    MP-FP-□□□□-☆-A8▽-XX

    □□□□：Wavelength

    405:405nm

    520:520nm

    633:633nm

    680:680nm

    850:850nm

    *****

    1550：1550nm

    ☆：Output Power

    A：20mW

    B：30mW

    ▽：WavelengthTolerance

    1：±1nm

    2：±2nm

    XX: Fiber and Connector Type

    SA=HP460+ FC/APC

    SP=HP460+ FC/PC

    PP=PM Fiber+ FC/PC

    PA=PM Fiber+ FC/APC


    Optional Configurations

    --
