    • 976nm 200W Wavelength-Stabilized Diode Laser

    This industrial laser is an OEM version of a laser diode. As such, it is intended solely for integration into other equipment.This laser does not comply with IEC and CDRH requirements.The customer shall be responsible for IEC and CDRH certification of the system incorporating this industrial laser.

    Product features：Ultra-high Power Output; Wavelength Stabilization Technology; Multi-chip Beam Combining Design; Efficient Heat Dissipation Structure; Industrial-grade Package

    Part Number：MP-FP-976-200W

    Application area：Industrial Material Processing | Fiber Laser Pumping | Medical Equipment | Scientific Research Experiments | National Defense & Aerospace

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    976 nm 200W

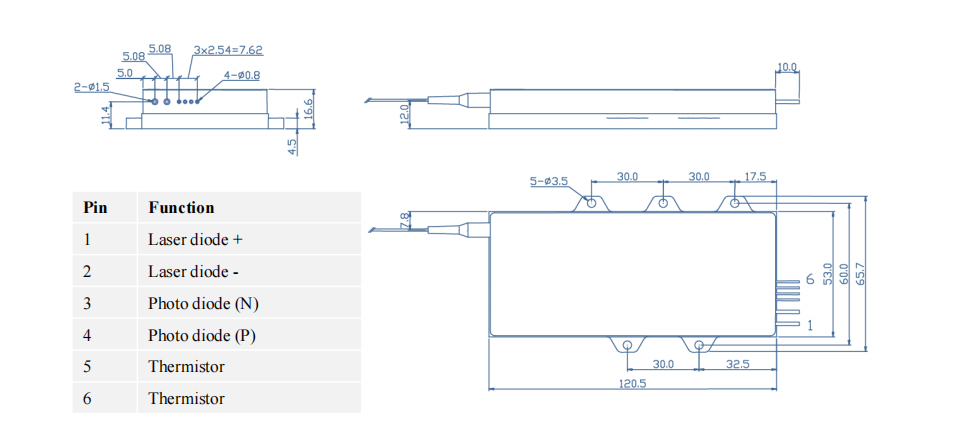

  • Dimension Drawing
    • General Parameters

    Model Parameters

    Item

    Unit

    Min.

    Typ.

    Max.

    Output Power (Fiber Output)

    W

    190

    200.0

    —

    Center Wavelength

    nm

    —

    976

    —

    Wavelength Tolerance

    nm

    —

    ±0.5

    —

    Spectral Width (FWHM)

    nm

    —

    0.5

    1.0

    Feedback Protection (1030–1100 nm)

    dB

    —

    40

    —

    Fiber Core Diameter

    μm

    —

    200

    —

    Fiber Cladding Diameter

    μm

    —

    220

    —

    Numerical Aperture

    —

    —

    0.22

    —

    Fiber Length

    m

    —

    1 or 2

    —



    Electrical Parameters

    Item

    Unit

    Min.

    Typ.

    Max.

    Threshold Current

    A

    —

    1.0

    —

    Operating Current

    A

    —

    15.0

    16.0

    Operating Voltage

    V

    —

    27.6

    28.0

    Slope Efficiency

    —

    —

    13.5

    —

    Power Conversion Efficiency

    %

    40

    15

    —



    Other Parameters

    Item

    Unit

    Min.

    Typ.

    Max.

    Operating Temperature*

    ℃

    —

    —

    45

    Operating Humidity

    %RH

    —

    —

    75

    Storage Temperature

    ℃

    -20

    —

    80

    Soldering Temperature

    ℃

    —

    250 (10s)

    —

     Internal Thermistor Reading

    Note 1: Module specifications and dimensions are subject to change without prior notice.

    Note 2: Anti-static measures must be taken.

    Note 3: The minimum fiber bend diameter shall be 300 times larger than the core diameter.

    Note 4: Service life will be shortened if used improperly or beyond the operating conditions.

    Note 5: Storage and operation below ambient dew point require a non-condensing environment.

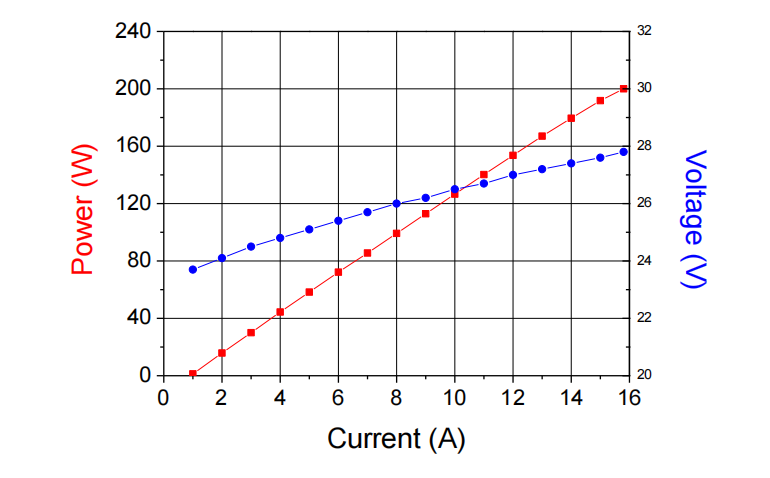

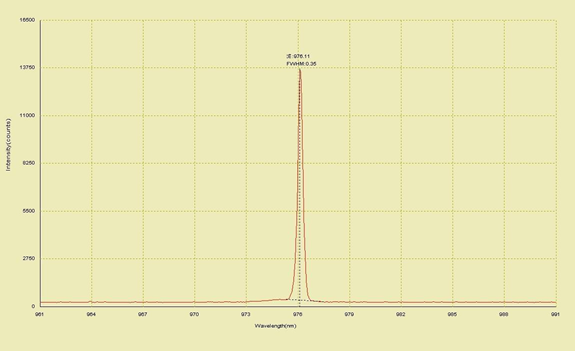

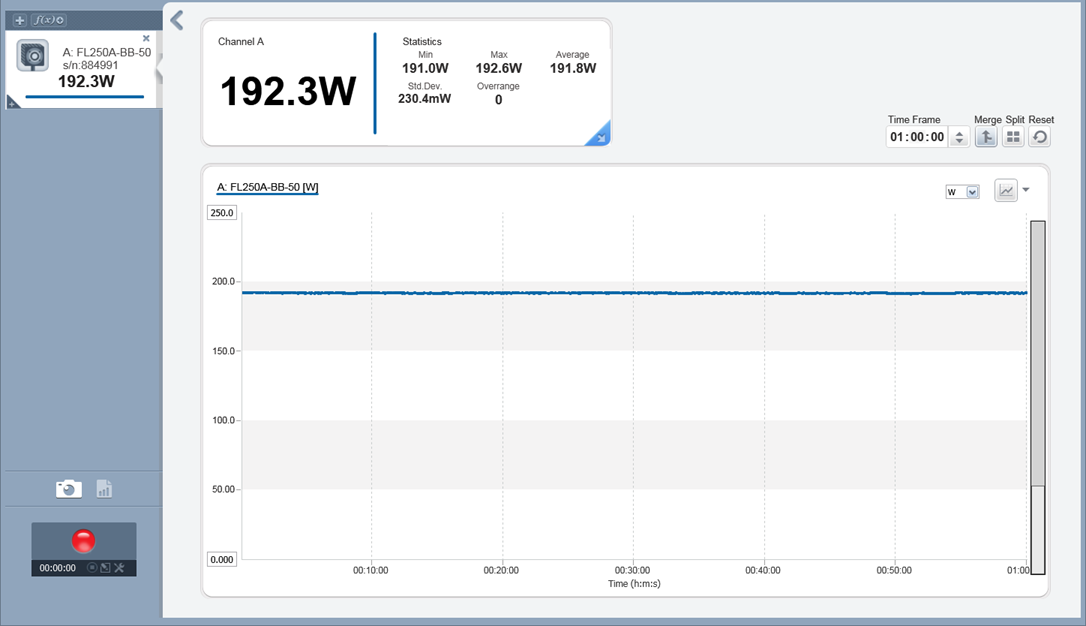

    Characteristic Curves



    Optional Configurations

    --
