Center Wavelength

λ

974

976

980

nm

Spectral Width

Δλ

0.6

0.8

2.0

nm

Threshold Current

Ith

–

90

110

mA

Operating Current

Iop

–

120

150

mA

Fiber Output Power

Pf

400

600

1000

mW

Wavelength Tuning vs. Temperature

Δλ/T

–

–

0.01

nm/°C

Tracking Ratio (0.1Pop < Pf < Pop)¹

TR

0.52

–

1.48

–

Tracking Error²

TE

−48

–

48

–

PD Monitor Responsivity

IBF

0.5

–

5

μA/mW

Thermal Resistance (Tset = 25°C)³

Rth

–

20K

–

ohm

PD Dark Current (VRD = 5 V)

Id

–

–

0.1

μA

Extinction Ratio (PM Version)

PER

17

20

–

dB

Fiber Type

HI1060

Forward Voltage

Vf

–

1.8

2.6

V

Thermistor Resistance

RT

9.5

10

10.5

kΩ

Thermistor Temperature Efficiency

–

–

-4.4

–

%/°C

Output Connector

–

–

None or FC/APC

–

–

Cut-off Wavelength

920 nm

Maximum Attenuation

2.1 dB/km

Cladding Diameter

125 μm

Coating Diameter

250 μm

Core-Cladding Concentricity Error

≤ 0.5 μm

Mode Field Diameter

5.9 μm

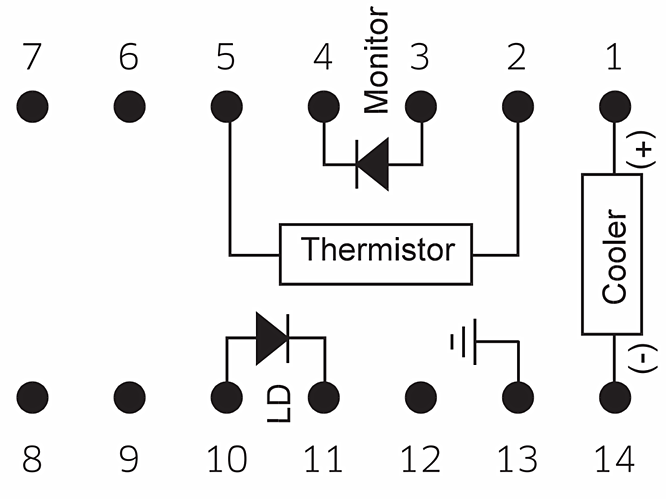

1

Thermoelectric Cooler (+)

8

N/C

2

Thermistor

9

N/C

3

PD Monitor Anode (-)

10

Laser Anode (+)

4

PD Monitor Cathode (+)

11

Laser Cathode (–)

5

Thermistor

12

N/C

6

N/C

13

Case Ground

7

N/C

14

Thermoelectric Cooler (–)
