Tilted Fiber Bragg Grating

Tilted Fiber Bragg Grating

Tilted fiber Bragg grating is an advanced passive fiber optic device, whose internal refractive index modulation grating plane forms a specific angle (tilt angle) with the fiber axis. TFBG continuously couples the fundamental mode energy transmitted in the core to a series of different order cladding modes through its tilted refractive index modulation structure, while satisfying the phase matching condition.

Product features：Multi mode coupling effect, high refractive index sensitivity, multi parameter synchronous measurement

Part Number：MP-TFBG-1-12

Application area：Biochemical sensing、Environmental monitoring、Medical diagnosis、 Industry and energy 、 Communication and optical devices

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

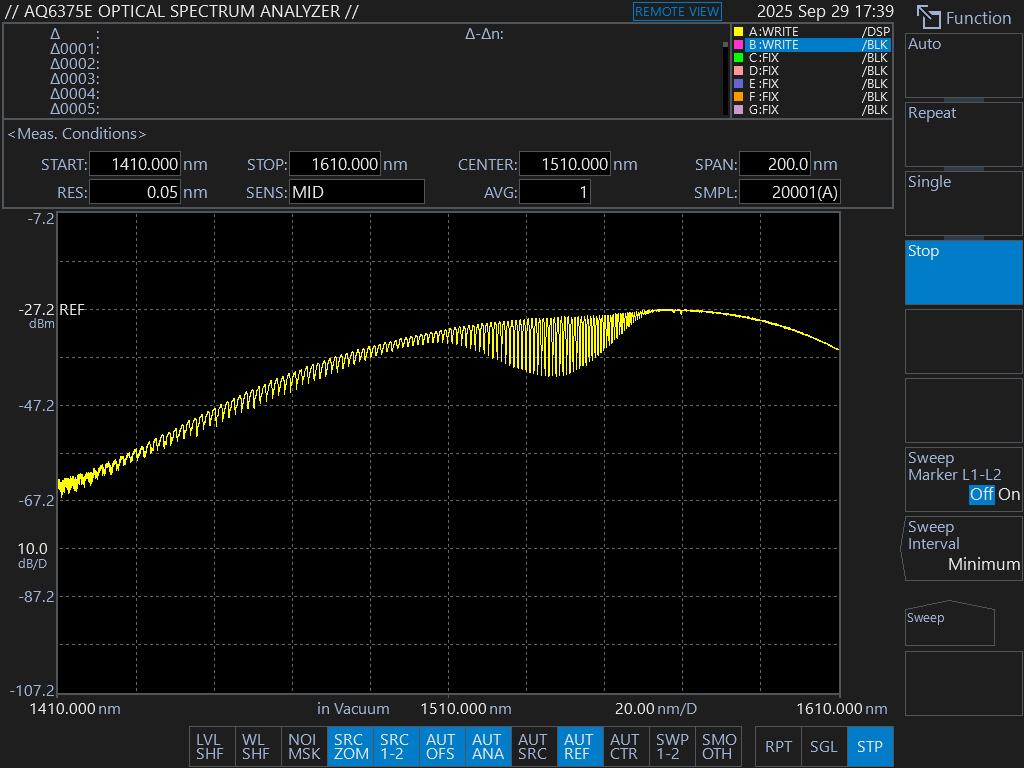

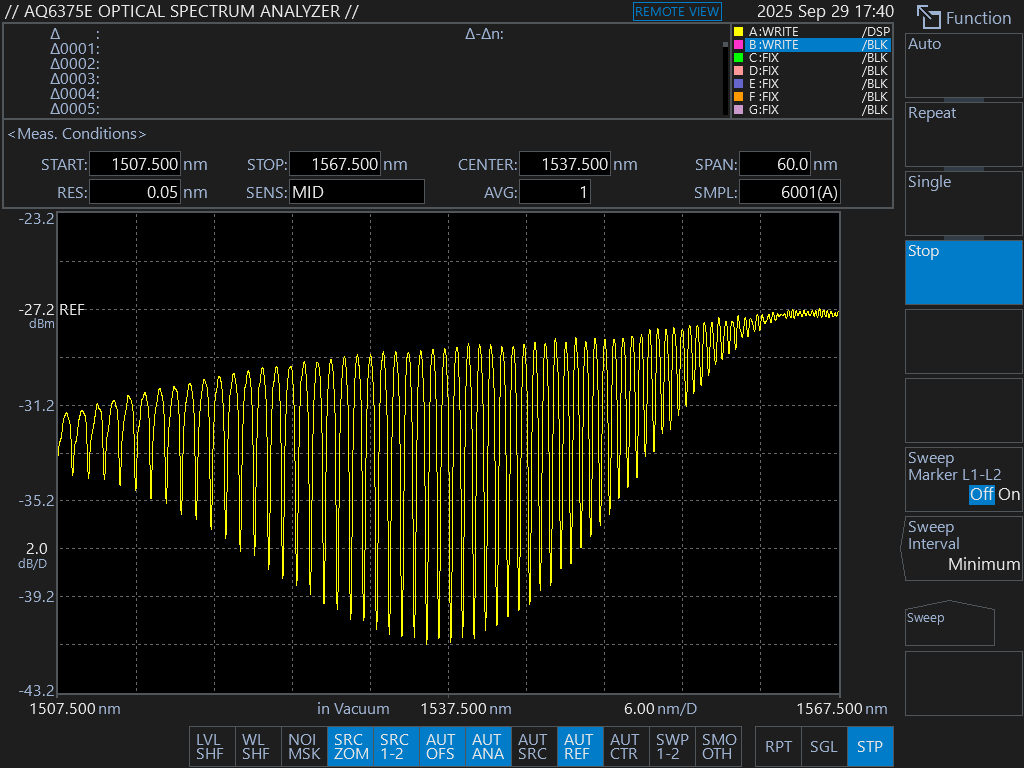

Main parameters

Core parameters

Core Mode Central Wavelength Tilt Angle

1520–1600 nm 1°~12°

Dimension Drawing

General Parameters

Parameters

Parameter Type	Unit	Value
Core Mode Central Wavelength	nm	1520–1600 (interval 1)
Cladding Mode Central Wavelength	nm	1470–1550 (interval 1)
Tilt Angle	°	1–12
Cladding Mode Transmission Depth	dB	0.1–30
Grating Length	mm	1–15
Pigtail Length	cm	>20 / >20
Fiber Type	—	Single-mode fiber
Connector Type	—	Bare fiber / SC / FC / LC, etc.

Optional Configurations

Downloads

Tilted Fiber Bragg Grating.pdf
