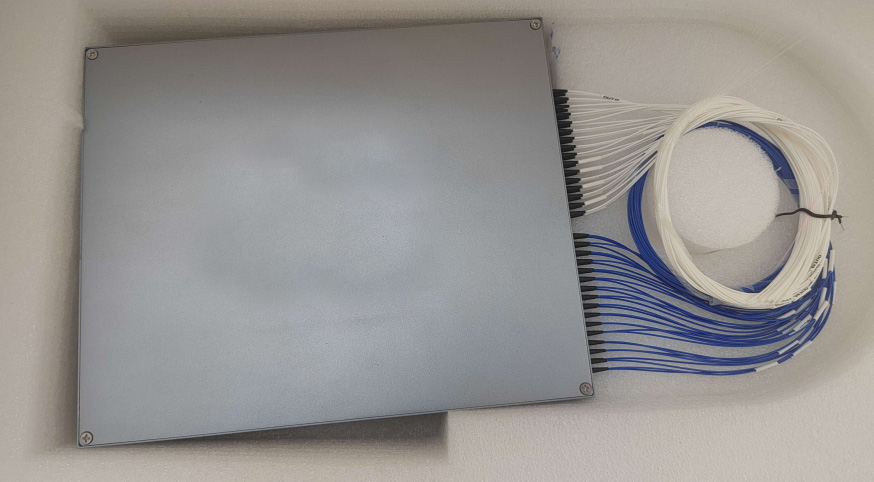

Description

The matrix optical switch is a high-performance, modular all-optical signal matrix switch. It adopts MEMS technology and switching control technology, uses light as the signal transmission medium, and features strong anti-interference ability and small signal attenuation amplitude.

As shown in Figure 1, the block diagram of the M×N optical switch matrix optical path is composed of M 1×N MEMS optical switches and N 1×M MEMS optical switches in cascade, which can realize arbitrary switching of M optical signals to N optical signals. The optical switch matrix provides non-blocking and fully transparent optical switching, making it an ideal solution for telecommunications, data centers, network security, and laboratory/production network operators. It has the capabilities of flexible and reliable remote resource allocation and rapid path reconfiguration.

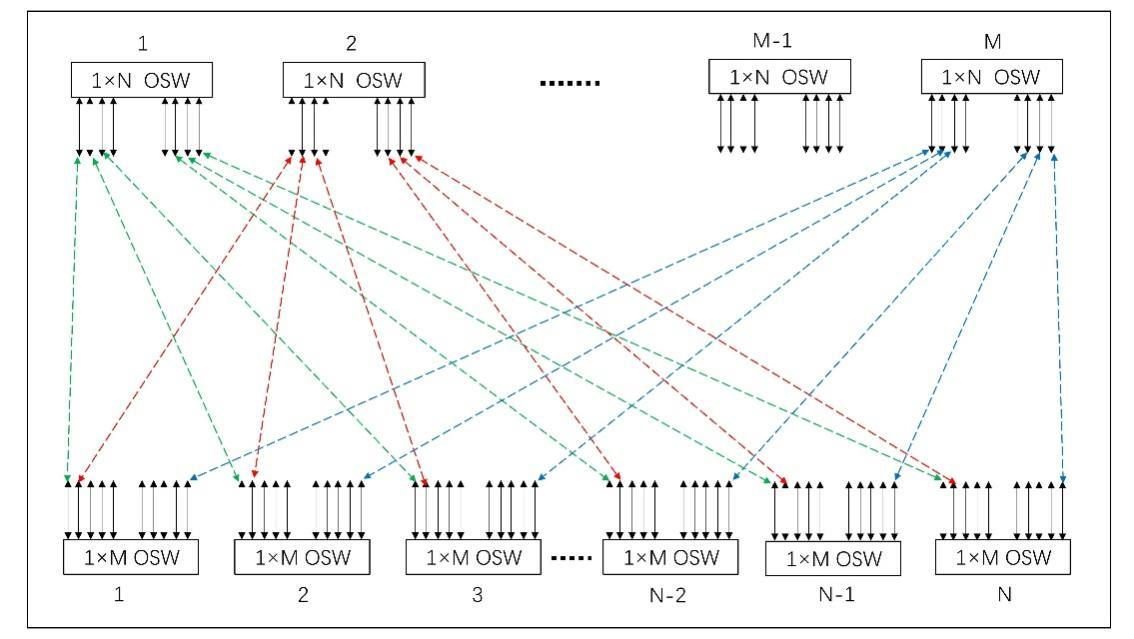

Figure 1. Schematic Diagram of M×N Matrix Optical Switch Optical Path

Performance Parameters

Table 1. Performance Specification Parameters

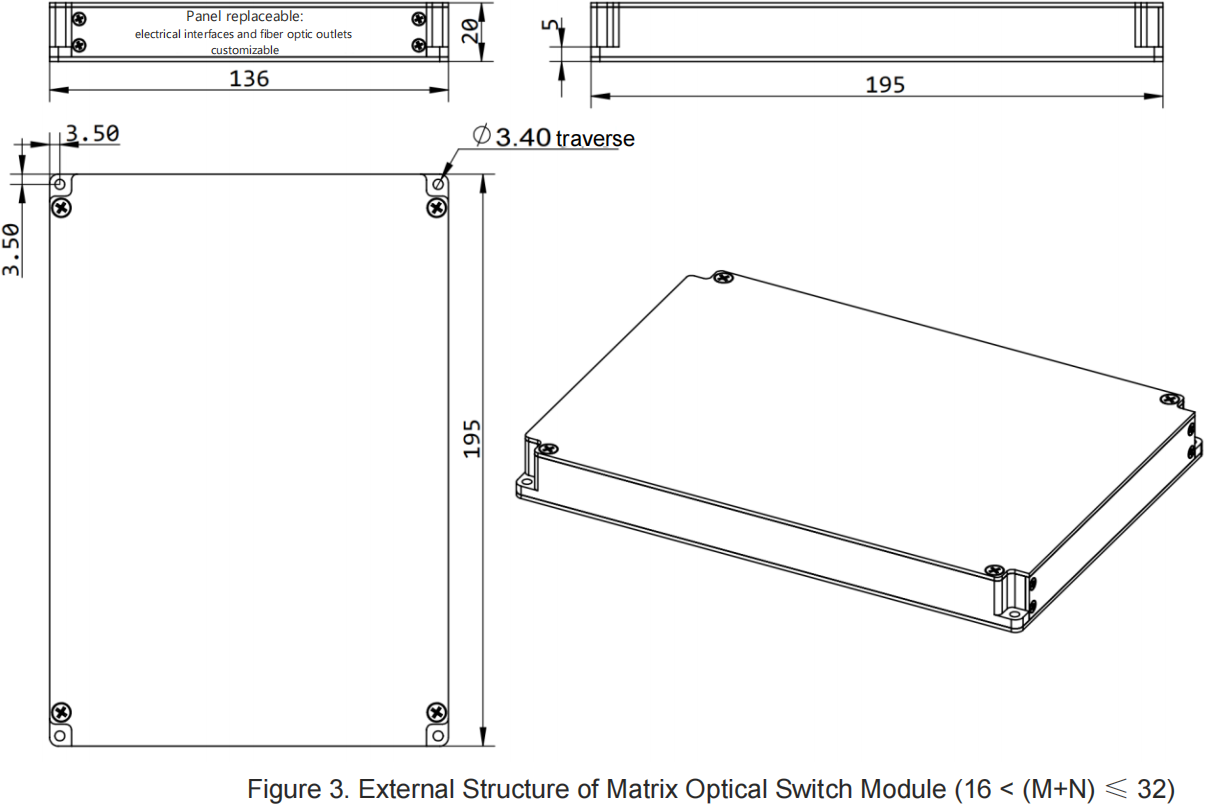

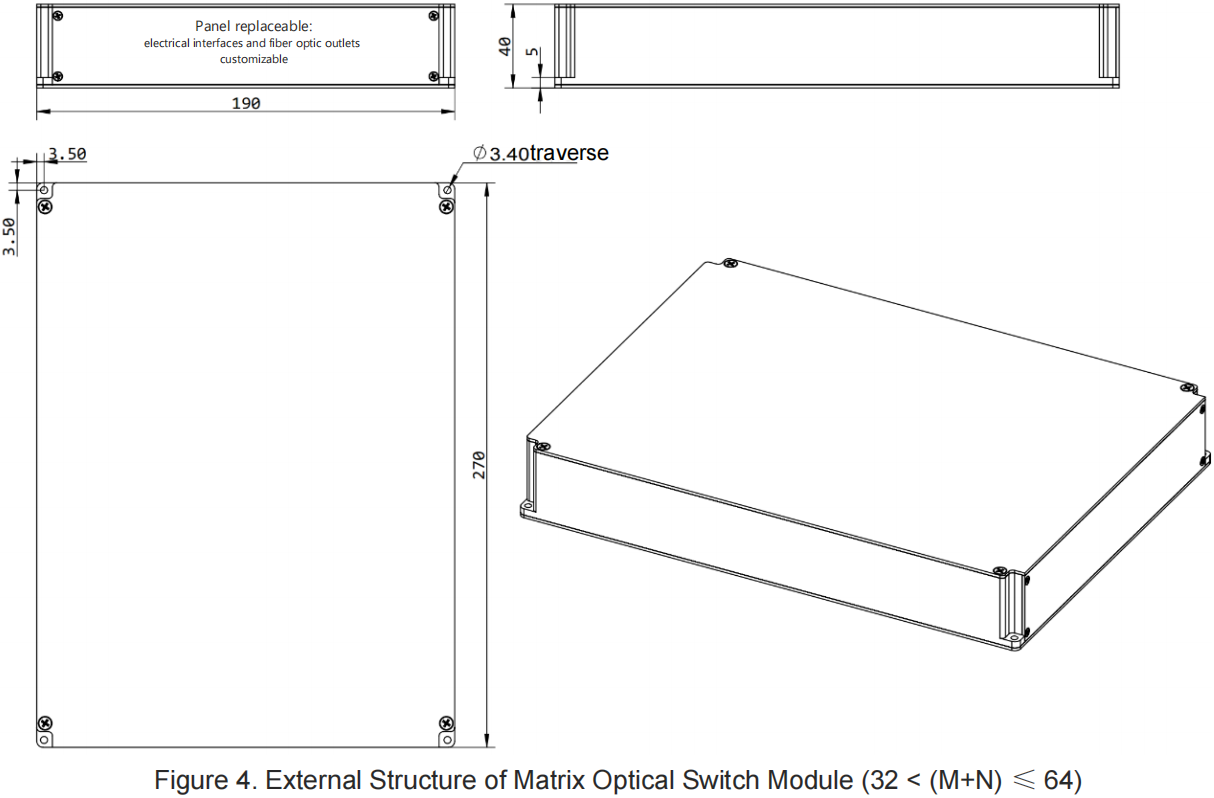

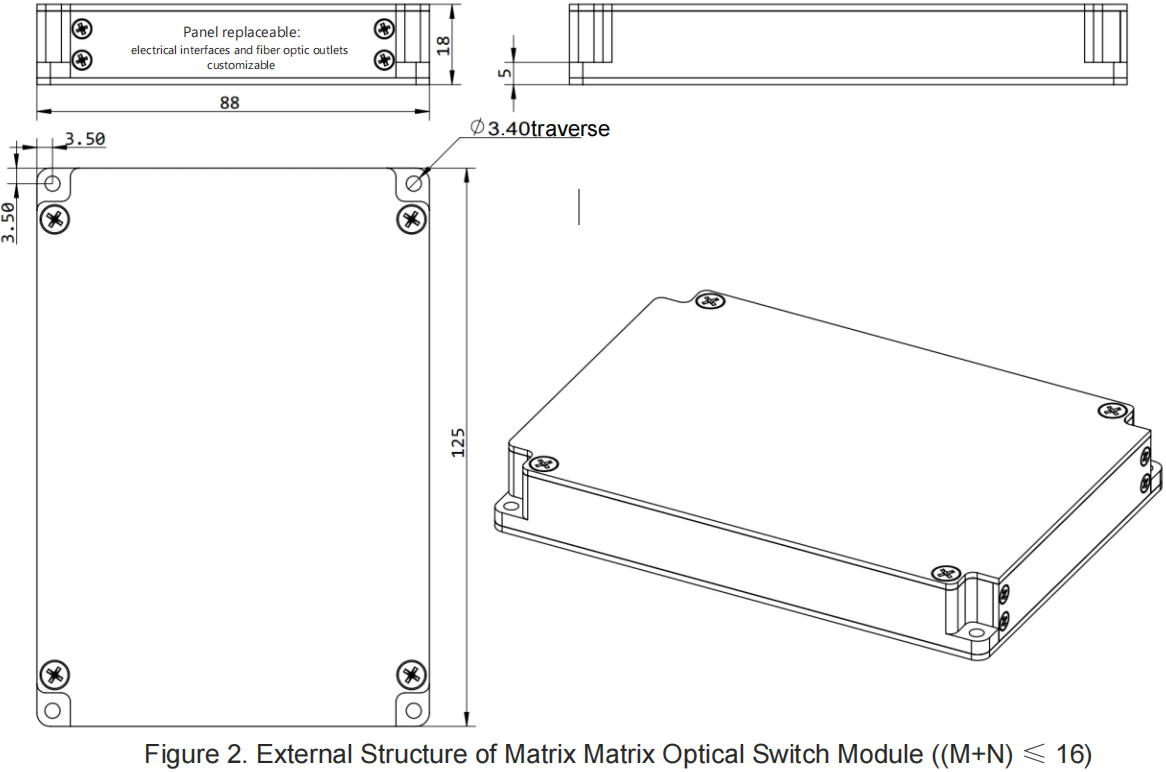

Mechanical Dimensions (Unit: mm)

Ordering info

MP-YFMS-A-B-C-D-E-F-G

--
