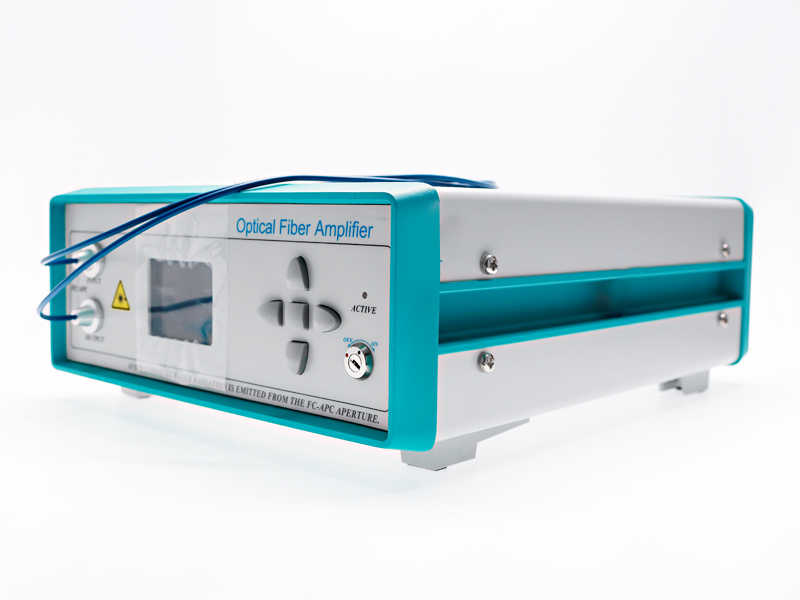

    • L-band single mode Erbium Doped Fiber Amplifier 2W

    Idealphotonics’ optical amplifier module, optional bands: O-band, S-band, C-band, L-band. Optional amplifier types: Booster Amplifier, Pre-Amplifier. Low noise, gain 8dB~40dB optional. EDFA- L-B-30-ISO series is a L-band fiber amplifier with a wavelength of 1565~1580nm. It has a wide range of applications including high-speed data signals, image signals, and femtosecond pulse amplification applications. For WDM signals, it has excellent gain smoothness throughout the L-band broadband. Max. output, input/output fiber, control method and appearance can be customized

    Product features：Output power: 20-40dBm、 Excellent noise figure、 Stable gain spectrum、 Low cost、 Output power and pump current monitoring、 ACC / ALC mode operation

    Part Number：MP-EDFA-L-2W-SA

    Application area：Optical communication、 Test and measurement、 Scientific applications

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Output Power Connector

    1565-1580nm 2W FC/APC

  • Dimension Drawing
    • General Parameters

    Parameter

    parameter

    Unit

    Min.

    Typical.

    Max.

    Operating wavelength range

    nm

    1565

    -

    1580

    Input light power

    dBm

    -6

    -

    10

    Output power

    W

    -

    -

    3

    Noise index

    dB

    -

    -

    6

    Operating temperature

    ℃

    -5

    -

    +45

    Operating humidity range

    %

    -

    -

    75

    Storage temperature range

    ℃

    -40

    -

    +85

    power supply


    AC 110-240V

    Working mode


    ACC/APC

    Pigtail


    PM1550 ∅3mm slow axis alignment

    Connector type


    FC/APC

    Dimension

    mm

    260（W）X 320（D）X 120（H）

    Note: If the input signal is a pulse laser with a repetition rate of less than 1MHz, do not use the APC mode, only the ACC mode can be used


    Ordering Information

    MP-EDFA-△-PG-OPP-ISO △ :

    C=C band

    L=L Band

    C+L=C+L Band

    PG: package method

    B: benchtop

    M: module

    OPP (Output Power): output power，Unit dBm

    E.G. : 16-16dbm，23-23dBm

    ISO: Built-in isolator protection

    0-None

    1-Pump protection

    XX: Fiber and Connector Type

    SA=SMF-28E+ FC/APC

    SP=SMF-28E+ FC/PC

    PP=PM Fiber+ FC/PC

    PA=PM Fiber+ FC/APC

    Optional Configurations

    --

    Downloads

    L-band single mode Erbium Doped Fiber Amplifier 2W.pdf
