    • 450–2400 nm Ultra‑Broadband Spectral Source

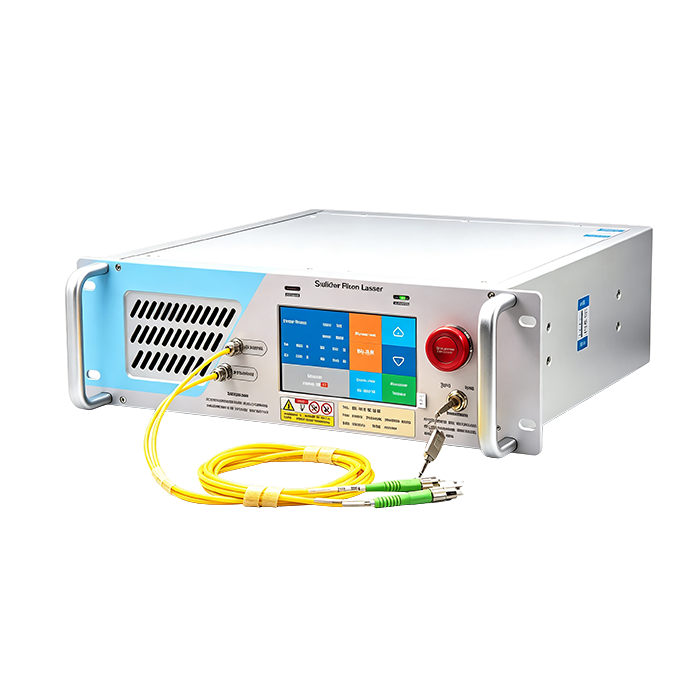

    The MP-SC-450-2400 ultra-broadband spectral source is a cutting-edge optical innovation that delivers near-infrared output covering the 0.45-2.4 μm wavelength range, available in either single-mode or polarization-maintaining fiber output. Compared with conventional broadband sources, this 450-2400 nm source offers an exceptionally wide spectral range, high spectral flatness, and high optical power. When combined with a filter, it can generate wavelength-tunable laser output, making it suitable for a variety of applications including microscopic material analysis, optical coherence tomography (OCT), and industrial inspection.

    Product features：Ultra‑broadband spectrum；High flatness；High power

    Part Number：MP-SC-450-2400

    Application area：Spectroscopy | OCT (Optical Coherence Tomography) | Optical inspection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength range Optical power

    600~2400nm；450~2400nm 100/200/400mW

  • Dimension Drawing
    • General Parameters

    Optical Specifications

    Parameter

    Unit

    Typical Value

    Remarks

    Wavelength range

    nm

    600~2400；450~2400

    @20dB bandwidth

    Optical power

    mW

    100/200/400


    Power stability (15 min)

    dB

    ≤ ±0.02

    Equivalent to≤±0.5%

    Power stability (8 h)

    dB

    ≤ ±0.05

    Equivalent to≤±1.2%

    Polarization state

    -

    Random


    Fiber type

    -

    Single-mode fiber Hi‑1060


    Fiber connector

    -

    FC/APC

    Can be equipped with a collimator output



    Electrical and Environmental Parameters

    Parameter

    Typical Value

    Control method

    Touch screen / RS232 serial communication

    Communication interface

    DB9 Female

    Power supply

    100~240V AC, <150W

    Dimensions

    376mm(W)×340mm(D)×112mm(H)

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%

    Package type

    Benchtop (B3)


    Ordering Information / Model

    MP-SC-450-2400

    Operating Wavelength (nm)

    Average Optical Power (mW)

    Output Fiber Type

    Package

    Ultra‑Broadband Spectral Source

    NIR-II=600~2400

    NIR-III=450~2400

    100/200/400

    SM=Hi-1060

    B3 = Benchtop

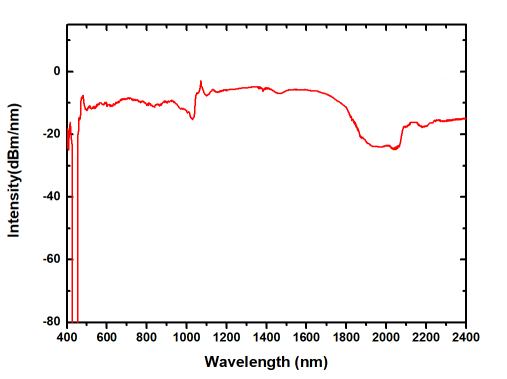

    Output Spectrum



    Optional Configurations

    --
