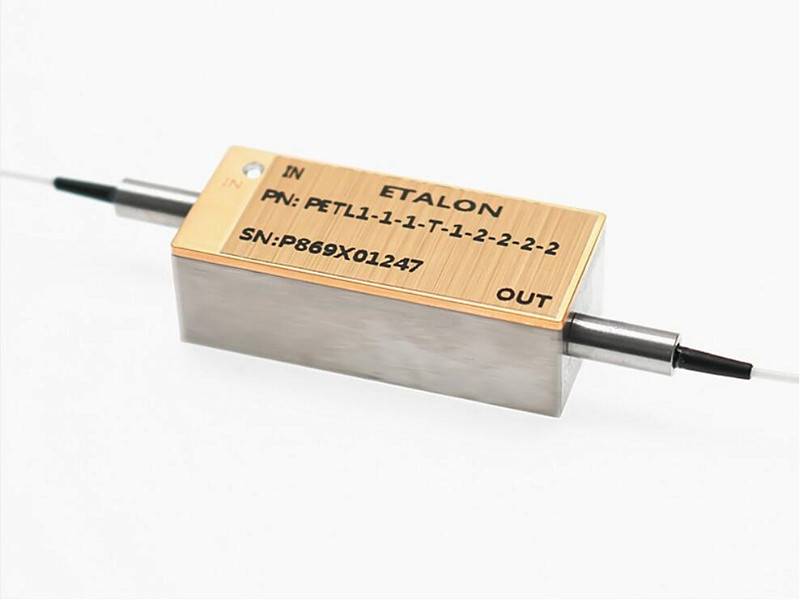

ETALON Thermally Stable Transmission Filter (1525-1565nm 100GHz Fineness 7)

Idealphotonics' thermally stable filters are based on advanced ETALON technology, and use unique optical and mechanical designs and advanced packaging technology to ensure the stability of the wavelength of this filter under extreme environmental conditions, including temperature and humidity. We have unique technical approval technology to ensure that the target accuracy of the wavelength of this filter is within ITU +/-1.25GHz in all environments. This ITU-aligned filter can be used for channel monitoring and wavelength locking in wavelength division multiplexing (WDM) systems. We also have special technologies for customers to select the accuracy corresponding to a specific wavelength. This filter is divided into transmission and reflection according to different usage methods. The unique design can ensure that the fineness of the standard tool, channel spacing and operating wavelength have a wide range of choices. The thermally stable filter designed for customers is well compatible with a variety of spectral applications, including telecommunications, wavelength reference and calibration and fiber optic sensing systems, test and measurement, and laser wavelength stabilization control.

Product features：Excellent thermal stability 、 Low insertion loss、 Strong packaging、 One-end fiber outlet for easy fiber winding

Application area：FBG sensing system 、 Monitoring system、 Test and measurement equipment、 Instrumentation

Unit Price

Please contact customer service for a discounted quote.

Part Number

PL1-FN7-C-A-100-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

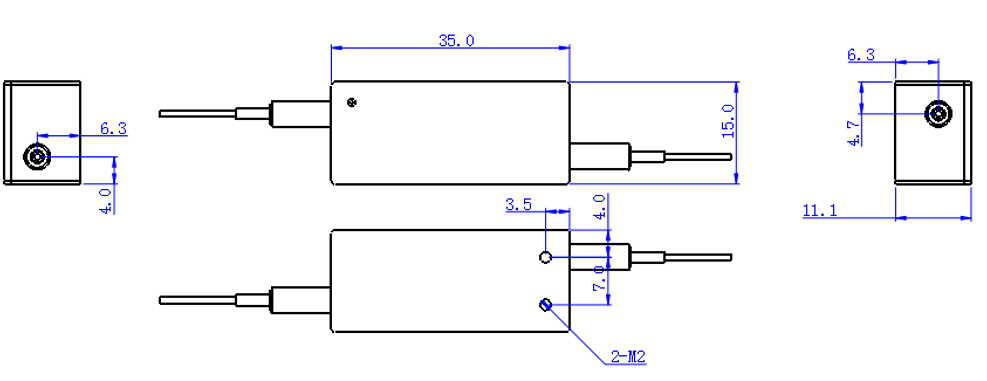

Dimensional Drawing

Parameters

Indicator	Unit	Parameter
Wavelength range	nm	1510~1590
Insertion loss	dB	Typ1.0, Max2.5
Polarization-dependent loss	dB	0.1
Polarization-dependent accuracy	GHz	+/-0.1
Channel spacing (FSR)	GHz	100
Thermal stability	GHz	≤+/-0.8
Fineness		7
Bandwidth @ 3dB	GHz	≤16
Contrast ratio	dB	≥13
Channel peak	Nm	None (or select a certain ITU wavelength)
Return loss	dB	≥20
Maximum optical power	mW	500
Operating temperature	℃	-5~70
Storage temperature	℃	-40~85
Fiber type	N/A	SMF-28e+
Dimensions (L x W x H)	mm	35x15x11 (L x W x H)

Note: *. All indicators are without connectors and are valid only at the above wavelength, polarization state and temperature.

**. Indicators are subject to change without prior notice.

Test spectrum

Ordering Information

PL1-FN7-C-A-100-SA-14BF Fineness: 7

Wavelength range: C band: 1525-1565nm, Lband: 1565 to 1625 nm Working mode: A: Transmission B: Reflection

Channel spacing: 100GHZ 50GHZ 200GHZ

Fiber type: SA=SMF-28E+ FC/APC (Fiber Length: 1m)

SP=SMF-28E+ FC/PC (Fiber Length: 1m)

PA=PM Fiber+ FC/APC (Fiber Length: 1m)

PP=PM Fiber+ FC/PC (Fiber Length: 1m)

Package: 14BF
