Interferometric Single-Mode Micro-Nano Fiber Sensor 1270-2000nm

The micro-nano fiber sensor has characteristics such as compact size, flexible structure, and strong transient field. It can measure the refractive index of surrounding liquids to detect slight biochemical changes. Reported types of micro-nano fiber refractive index sensors include grating-based and resonator-based sensors. Through structural design and optimization, we have developed several interferometric micro-nano fiber refractive index sensors with advantages such as high refractive index sensitivity, low temperature sensitivity, and low manufacturing cost. Research progress in interferometric micro-nano fiber sensors includes high-birefringence micro-nano fiber ring sensors, cascaded long-period grating sensors, and micro-nano fiber interferometric sensors based on single-taper structures. By designing and optimizing the interferometer's geometric structure, we have achieved refractive index sensing sensitivity at the level of 104 nm/RIU, providing an option for the development of low-cost, highly sensitive optical biochemical sensors.

Product features：Strong interference characteristics 、Subwavelength structure 、Single-mode and multi-mode options

Application area：Micro-nano fiber 、Micro-nano fiber sensor 、Interferometric sensor

Unit Price

Please contact customer service for a discounted quote.

Part Number

NANOFIBER-400-9-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

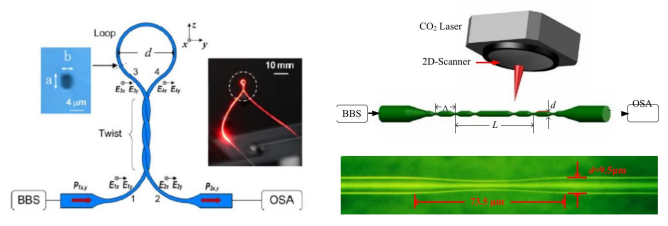

Left image: Schematic and physical diagram of the sensor based on the high birefringence micro-nano fiber ring resonator structure.
Right image: Schematic and physical diagram of the interferometric sensor based on the cascaded micro-nano fiber long-period grating.

Parameters

Parameters	Unit	Value
Operating Wavelength	nm	1270-2000nm
Biconical Fiber Waist Diameter	nm	800
Tapered Fiber Waist Width	mm	2
Tapered Region Length	mm	>15 (Typ. 20)
Additional Loss	dB	≤7dB
Cladding Diameter	um	125
Fiber Type		SMF-28E/PM1550
Connector Type		FC/APC OR FC/PC

Notes:

All test results do not include connectors.

Customization is available for improved parameters or other specific requirements.

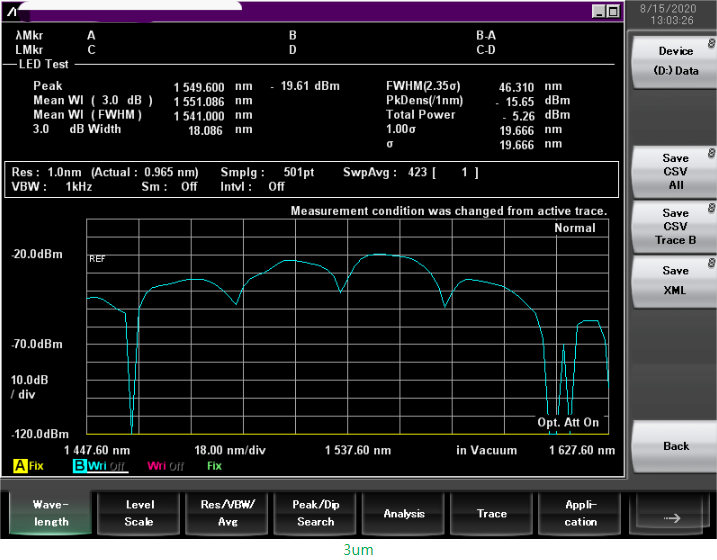

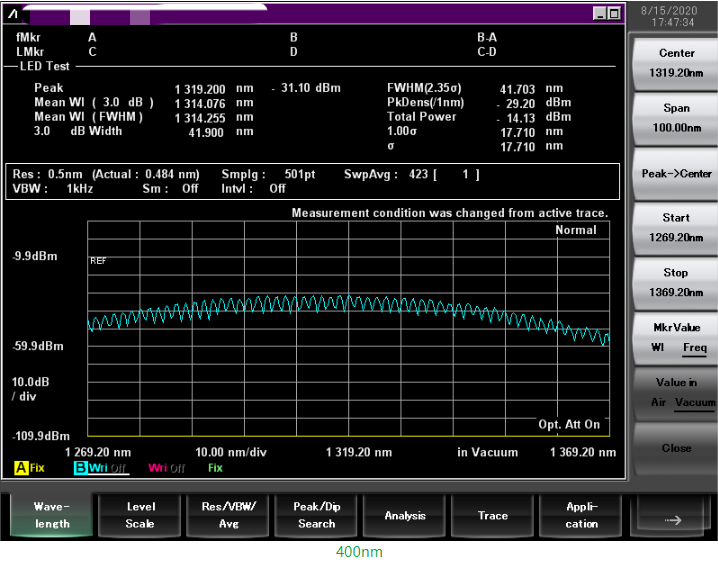

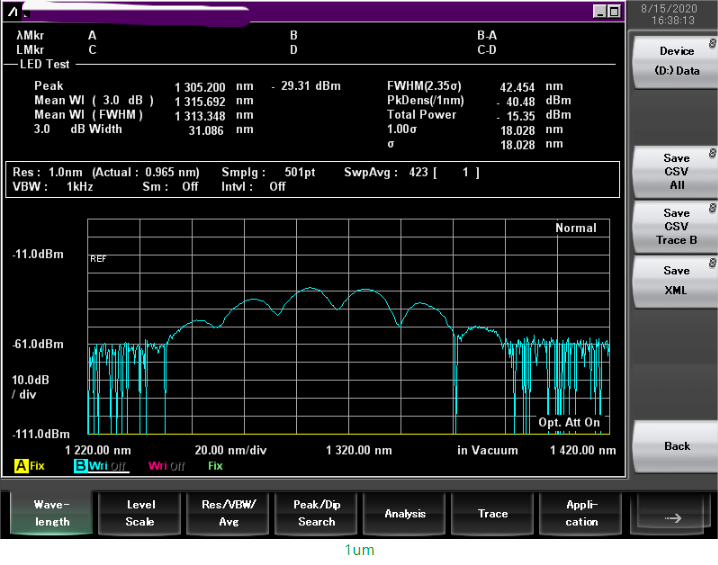

Test Spectrum

image (1).png

image (2).png

Ordering info

NANOFIBER-☆-△-XX

☆: Waist Diameter 400: 400nm

1000: 1um

△: Loose Tube

B :Bare Fiber

9: 900um Loose Tube

20: 2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC SP=SMF-28E+ FC/PC

PA=PM Fiber+ FC/APC PP=PM Fiber+ FC/PC
