1550nm Polarization-maintaining taper lens fiber

Conical lens fiber, because of the enlarged numerical aperture and increased light collection ability, is very suitable for coupling with LD, DFB, SLD lasers or VCSELs with circular or nearly circular output beam cross-sections.

Product features：Improved coupling with waveguides and laser diodes、 Can be made according to spot size or taper shape、 Polarization-maintaining fiber

Application area：Active component pigtails、 DWDM devices、 Waveguide packaging、 MEMS device connection、 Micro-fiber assemblies

Unit Price

Please contact customer service for a discounted quote.

Part Number

PMTLF-02-110-7.5-S-16-1.5-N-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Unit	Typ.
Fiber type		PM1550
Cone angle (Port 1)	deg	110
Angle tolerance (Port 1)	deg	±3
Lens radius (Port 1)	um	7.5±1.5
Beam diameter (Port 1)	um	specific
Fiber stripping length (Port 1)	mm	16±1
Fiber length	m	1.5
Operating temperature	℃	-5 to +50
Store temperature	℃	-40 to +85

Notes: * Actual dimensions may differ from the image below due to different requirements, please refer to the shipping data sheet.

* This material is RoHS compliant.

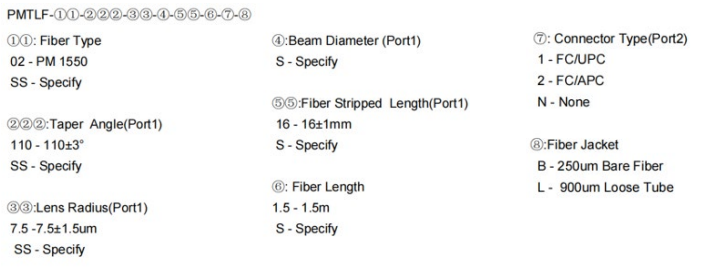

Ordering Information
