1300±150nm OCT photonic balanced detector

2GHz Low Noise OCT Balance Photodetector

Product features：Low noise、 High bandwidth、 High gain、 Compact structure

Application area：Distributed fiber optic sensing (ψ-OTDR/ C-OTDR, DAS/DVS, BOTDA/ BOTDR)、 Laser wind measurement radar、 Optical coherence tomography、 Spectral measurement / ns-level optical pulse detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

SBD-2G-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

PN#	SBD-2G-A	Unit
Detector type	InGaAs	Unit
Wavelength	1300±150	nm
Bandwidth	2G	Hz
Detector responsivity	0.91@ 1300nm	A/W
Transimpedance gain	15K	V/A
Saturation input optical power	280	uW
NEP (Noise Equivalent Power)	9（ Typical）	pW/Sqrt( Hz)
Output impedance	50	Ω
Common mode rejection ratio	>30	dB
Output coupling method	AC
Supply voltage	12	V
Supply current	0.3 (max)	A
Optical input	FC/APC
RF output	SMA
Dimensions	4535 11.5	mm

Instructions for Use

1.The module's supply voltage is 12V, with a maximum supply current of 0.3A.

2.Input+ and Input- are the optical input interfaces; RF is the RF output interface.

3.Before connecting to the input end, ensure the end face is clean to prevent contamination from affecting measurement results.

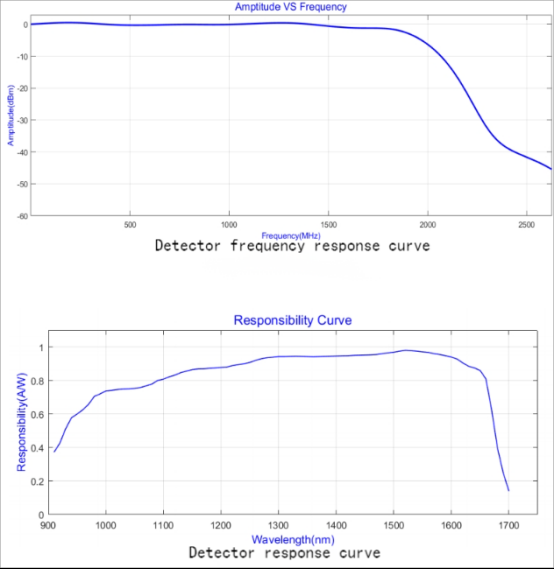

Test result
