InGaAs Butterfly Package Low Noise Optical Balanced Photodetector 1100~1700nm

InGaAs low-noise optoelectronic balanced detectors have a wide range of applications in high-end detection optics due to their low noise characteristics and excellent dynamic response. Whether it is device communication, LiDAR, quantum communication, or infrared imaging, it can provide stable and accurate detection performance and is a key component carried in high-performance optical systems.

Product features：Butterfly Package、 High Bandwidth DC~400MHz、 High Gain 60KV/A、 Low Noise

Application area：Distributed Optical Fiber Sensing, including ψ-OTDR, C-OTDR, DAS, etc、 LIDAR (Laser Doppler Wind Radar)、 Optical Coherence Tomography (OCT)

Unit Price

Please contact customer service for a discounted quote.

Part Number

XBD-200M-60K-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

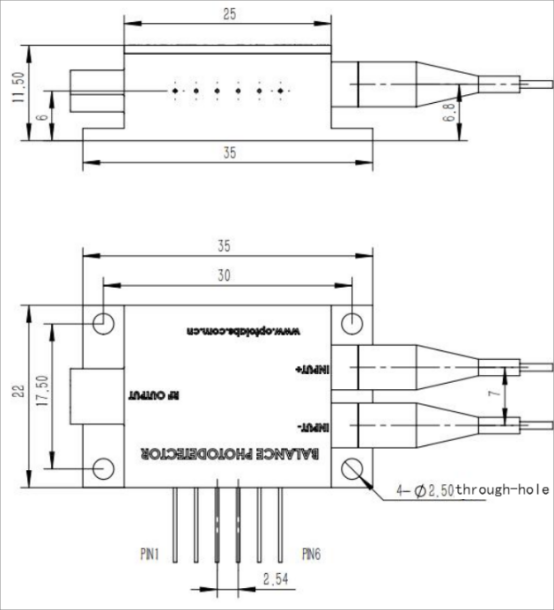

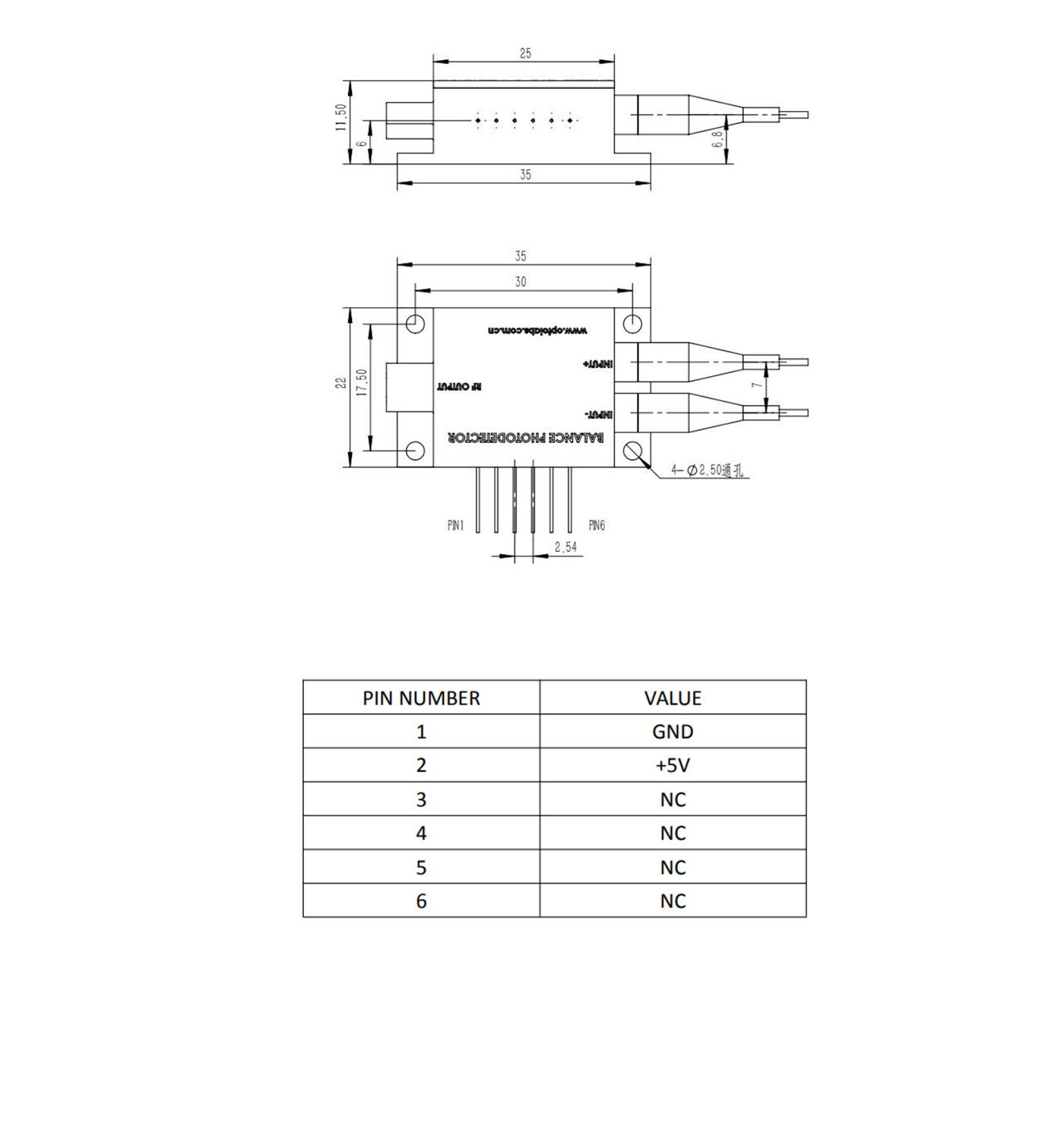

Dimensional Drawing

Technical Parameters

Pn#	XBD-200M-60K-A
Parameters	Range	Unit
Wavelength	1100~1700	nm
Bandwidth	200	MHz
Detector Responsivity	0.95@1550nm	Aw
Detector Type lnGaAs
Transimpedance Gain*1	60K	v/A
Saturation Input Optical Power	60	uw
NEP	5	pW/Sqrt(Hz)
Output Impedance	50
Common Mode Rejection Ratio	>25	dB
Output Coupling Type*2 AC/DC
Supply Voltage	5	v
Supply Current	0.2(max)	A
Package Type	Butterfly Package
Optical Input	FC/APC
RF Output	MCX

*1：The gain values given in the table are for the standard amplification factor. Other amplification factors can be customized based on customer requirements.

*2：The coupling type can be determined according to customer requirements.
