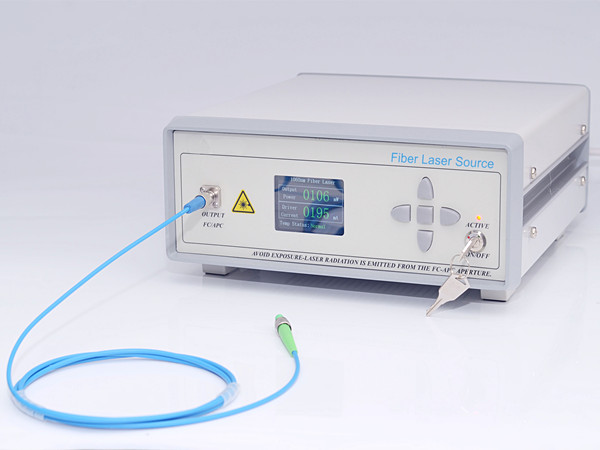

C-band wavelength tunable fiber laser source 10mW

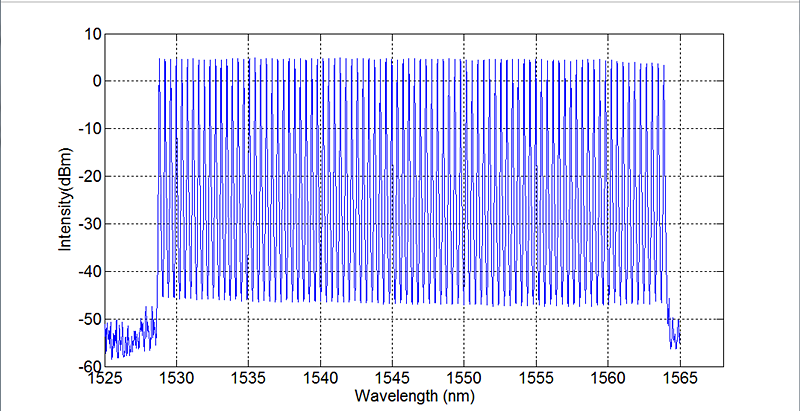

The wavelength tuning range of this light source covers the C band, and it can achieve up to 96 wavelengths of continuous laser output (ITU-T standard wavelength, wavelength interval 50GHz). It integrates tunable filters and high-gain chips, and has the characteristics of high output optical power, narrow line width, and high wavelength accuracy. It is equipped with a dedicated drive control circuit, a high-definition color LCD screen, and optional host computer software. Users can easily tune the wavelength accurately. It can be used in DWDM system development, fiber laser, fiber link, optical testing and other fields.

Product features：96 wavelengths、 High power stability、 High side mode suppression ratio

Application area：DWDM system、 Fiber link、 Optical device testing

Unit Price

Please contact customer service for a discounted quote.

Part Number

TFL-C-96-10-SM-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes
Wavelength tuning range	nm	1529.16~1567.13	ITU Standard H60~C13
Frequency tuning range	THz	191.3~196.05
Channel spacing	GHz	50	Equivalence 0.4nm
Side mode suppression ratio	dB	>50
Number of wavelength channels	-	96
Output optical power	mW	10/20
Short-term stability (15 minutes)	dB	≤ ±0.01	Single wavelength full temperature
Long-term stability (8 hours)	dB	≤ ±0.025	Single wavelength full temperature
Pigtail type	-	SMF-28 or PM1550
Pigtail connector type	-	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240VAC,<30W	5V DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Ordering information

Ordering information / PN#

SFL

Spectral range

Output power(mW)

Output pigtail type

Package method

C-96 = C-band 96 wavelength

10/20

SM=Single mode fiber

PM=Polarization fiber

B=Benchtop

M=Module
