InGaAs Gain adjustable balance detector 800-1700nm AC 800MHz

The detector can adjust the gain conveniently and quickly through software, with a gain adjustment range of up to 31dB and a maximum gain of up to 60KV/A. During the gain adjustment process, the adjustment speed is fast, the noise is low, and the output signal-to-noise ratio and signal bandwidth are not affected, which is particularly suitable for scientific research and equipment integration.

Product features：Gain adjustable (software adjustment)、 Large gain adjustment range (0~31dB)、 No signal-to-noise ratio degradation、 High gain (60KV/A)、 Low noise, high bandwidth、 Easy to operate

Application area：Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 ns-level optical pulse detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

ABD-800M-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Product model	ABD-100M-A	ABD-200M-A	ABD-350M-A	ABD-800M-A	ABD-1.6G-A	Unit
Wavelength	800~1700	800~1700	800~1700	800~1700	800~1700	nm
Bandwidth	DC-100M	DC-200M	DC-350M	AC-800M	AC-1.6G	HZ
Detector responsivity	0.95@1550nm	0.95@1550nm	0.95@1550nm	0.95@1550nm	0.95@1550nm	A/W
Gain adjustment range	0~31	0~31	0~31	0~31	0~31	dB
Gain adjustment step	1	1	1	1	1	dB
Transimpedance gain	30k	30k	30k	30k	30k	V/A
Saturated input optical power	100	150	150	150	150	μW
NEP	5	5	5	9	9	pW/Sqrt(Hz)
Output impedance	50	50	50	50	50	Ω
Output coupling mode	AC	AC	AC	AC	AC
Supply voltage	5	5	5	12	12	V
Supply current	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	A
Optical input	FC/APC	FC/APC	FC/APC	FC/APC	FC/APC
RF output	SMA	SMA	SMA	SMA	SMA
Dimensions	808030	808030	808030	808030	808030	mm

Related test data:

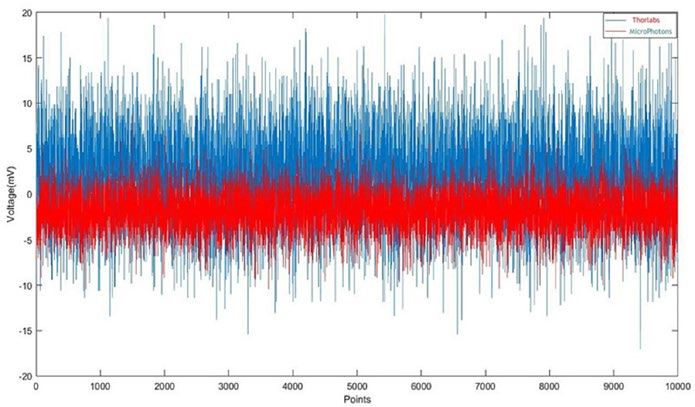

Noise floor benchmarking test with foreign Thorlabs products

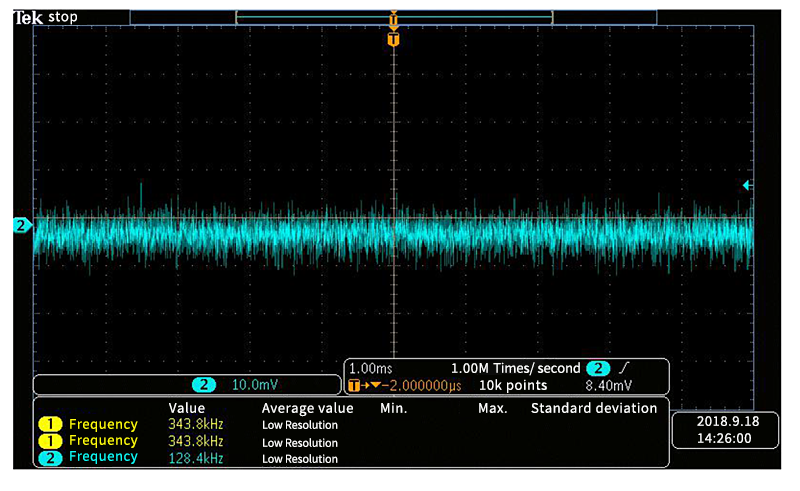

Noise floor 10mVpp

200MHz beat frequency signal (oscilloscope data)

Typical application areas:

Coherent Detection Distributed Fiber Optic Sensing

PZT vibration point demodulation phase on optical fiber (1KHz)
