InGaAs Photonic Balanced Detector MBD-A Series 300MHz

The high-speed low-noise photonic balanced detector module integrates two matched low-noise analog PIN detectors, a low-noise broadband transimpedance amplifier, and an ultra-low-noise power supply. It features high gain, high sensitivity, high bandwidth, low noise, and a high common-mode rejection ratio (CMRR), effectively reducing common-mode noise in the signal and improving the system's signal-to-noise ratio (SNR).

Product features：Low noise、 High gain、 High bandwidth、 Compact structure、 Built-in low-noise isolated power supply

Application area：Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 ns-level optical pulse detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

MBD-300M-A

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameters

PN#	MBD- 100M-A	MBD- 200M-A	MBD- 300M-A	MBD- 400M-A	MBD- 500M-A	MBD- 800M-A	MBD- 1G-A	MBD- 1.5G-A	MBD- 2G-A	MBD- 2.5G-A	Unit
Detector type	InGaAs
Wavelength	800~1700										nm
Bandwidth	100M	200M	300M	400M	500M	800M	1G	1.5G	2G	2.5G	Hz
Detector responsivity	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	A/W@1550nm
Transimpedance gain	30K	30K	30K	10K	5K	30K	30K	30K	15K	15K	V/A
Maximum input optical power	140	140	140	420	840	140	140	140	280	280	μW
NEP	5	5	5	7	7	9	9	9	9	9	pW/Sqrt(Hz)
Output impedance	50	50	50	50	50	50	50	50	50	50	Ω
Output coupling method	DC/AC	DC/AC	DC/AC	DC/AC	DC	AC	AC	AC	AC	DC
Power supply voltage	5	5	5	5	5	12	12	12	12	12	V
Power supply current	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	0.3(max)	A
Optical input	FC/APC（Free-space optical optional）
RF output	SMA
Dimensions	624725					755525					mm

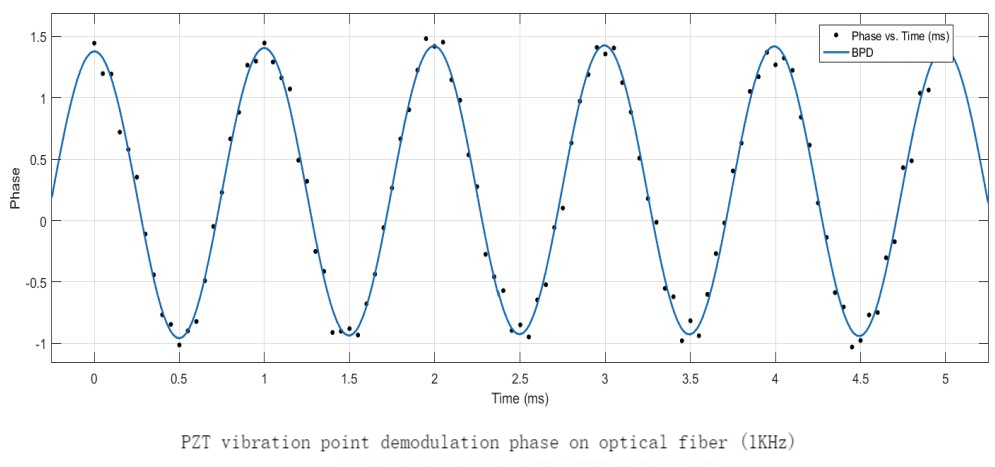

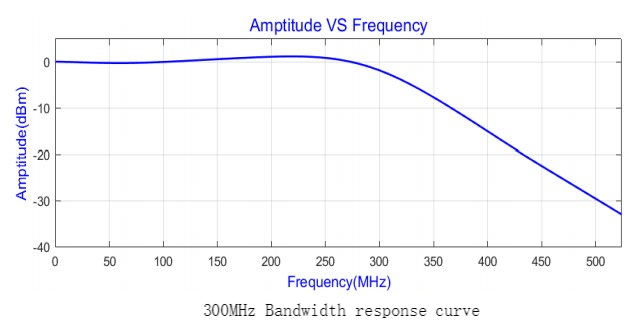

Test Result

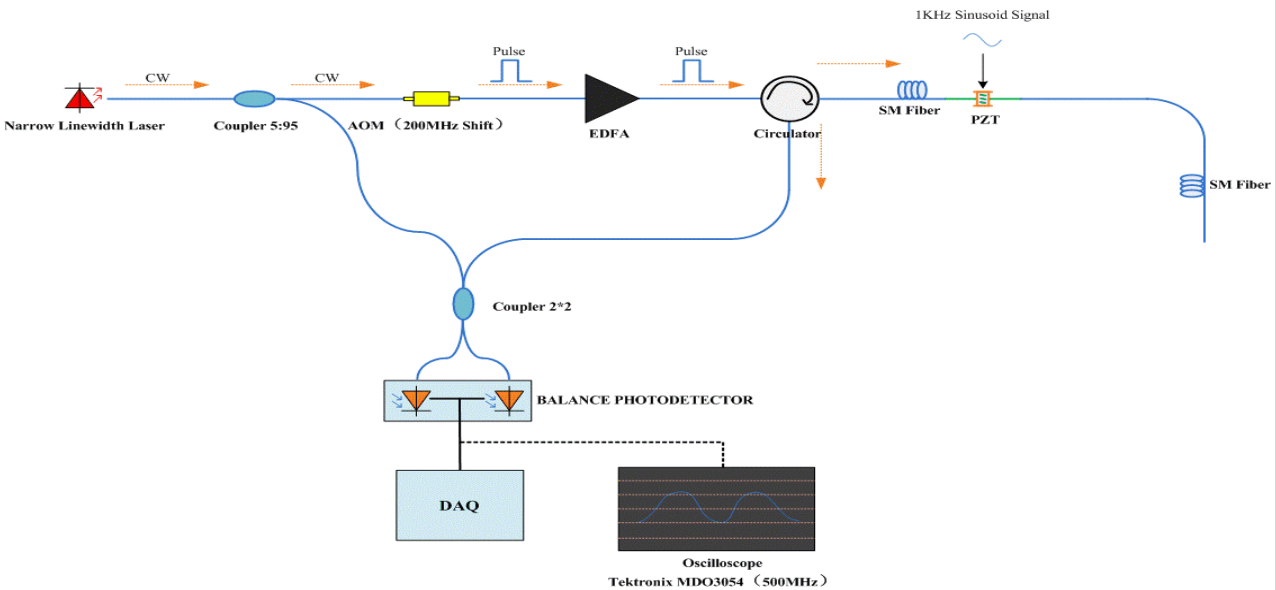

Coherent detection distributed optical fiber sensing
